Ampeg MICRO-CL Owner's Manual

6
MICRO-CL Stack

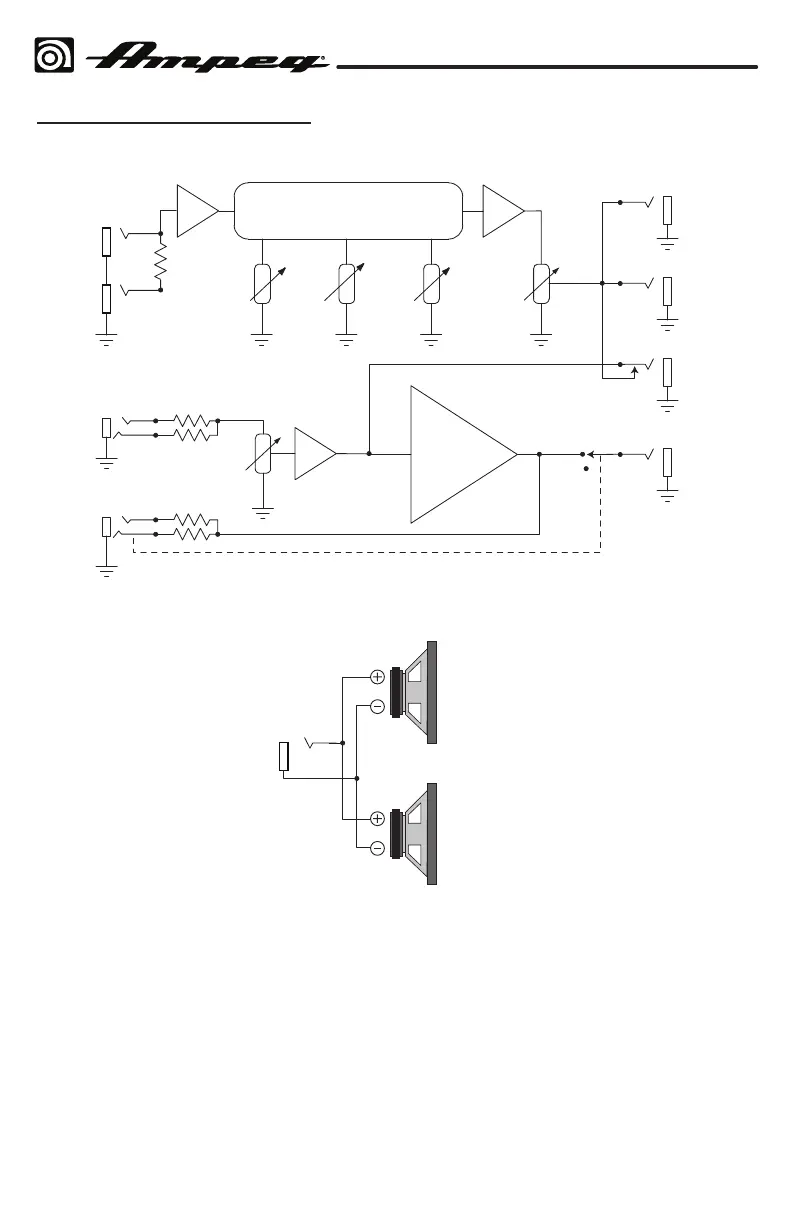

System Block Diagrams
Amplier:
EFFECTS
LOOP
POWER
AMPLIFIER
Volume
Send
Return
Bass
Mid
Treble
TONE CONTROL CIRCUITRY
AUX
Inputs
SPEAKER
OUTPUT
Phones
LINE
OUT
Inputs
-15 dB
0 dB
Aux Level
100 W
Amplifier
MUTE
Speaker Cabinet:
(2) 10" speakers
Input
Cabinet

Ampeg MICRO-CL Specifications

General

Inputs	1 x Instrument
Aux Input	1 x 1/8"
Type	Solid State
Preamp	Solid-State
Power Amp	Solid-State
Tone Controls	3-band EQ
Speaker Output	1 x 1/4"
RMS Power Output	100W
Power Output	100 watts
