Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 11 of 11
Disassembly Procedure

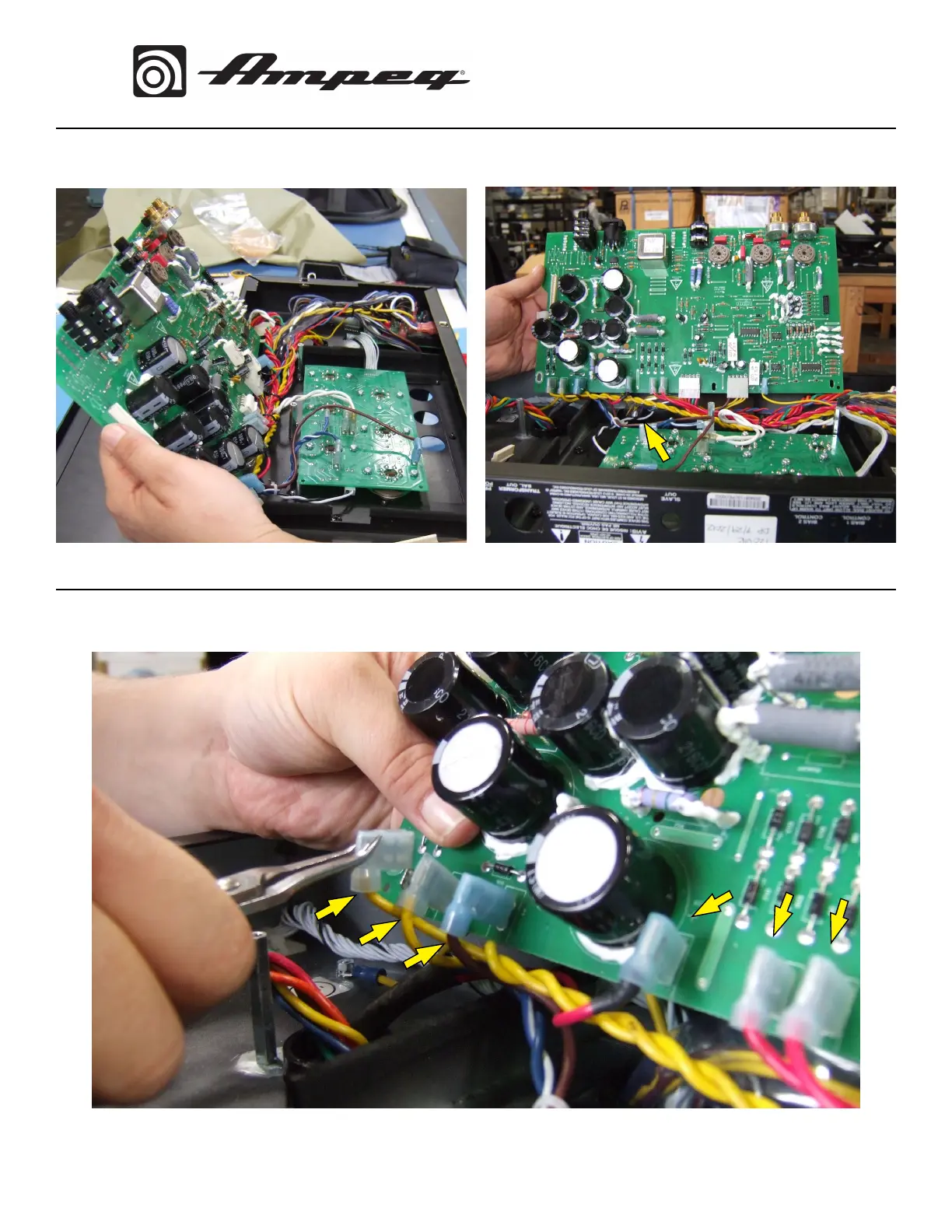

16. Lift the board from the back to get access to the remaining connections for the power
and tube board. As seen in Figures 16a and 16b.
Figure 16a Figure 16b
Figure 17a
17. With a pair of Needle nose pliers disconnect remaining seven faston connections as seen
in Figure 17a. At this point you should have the main board free and safe to remove.

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
