Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 10 of 11
Disassembly Procedure

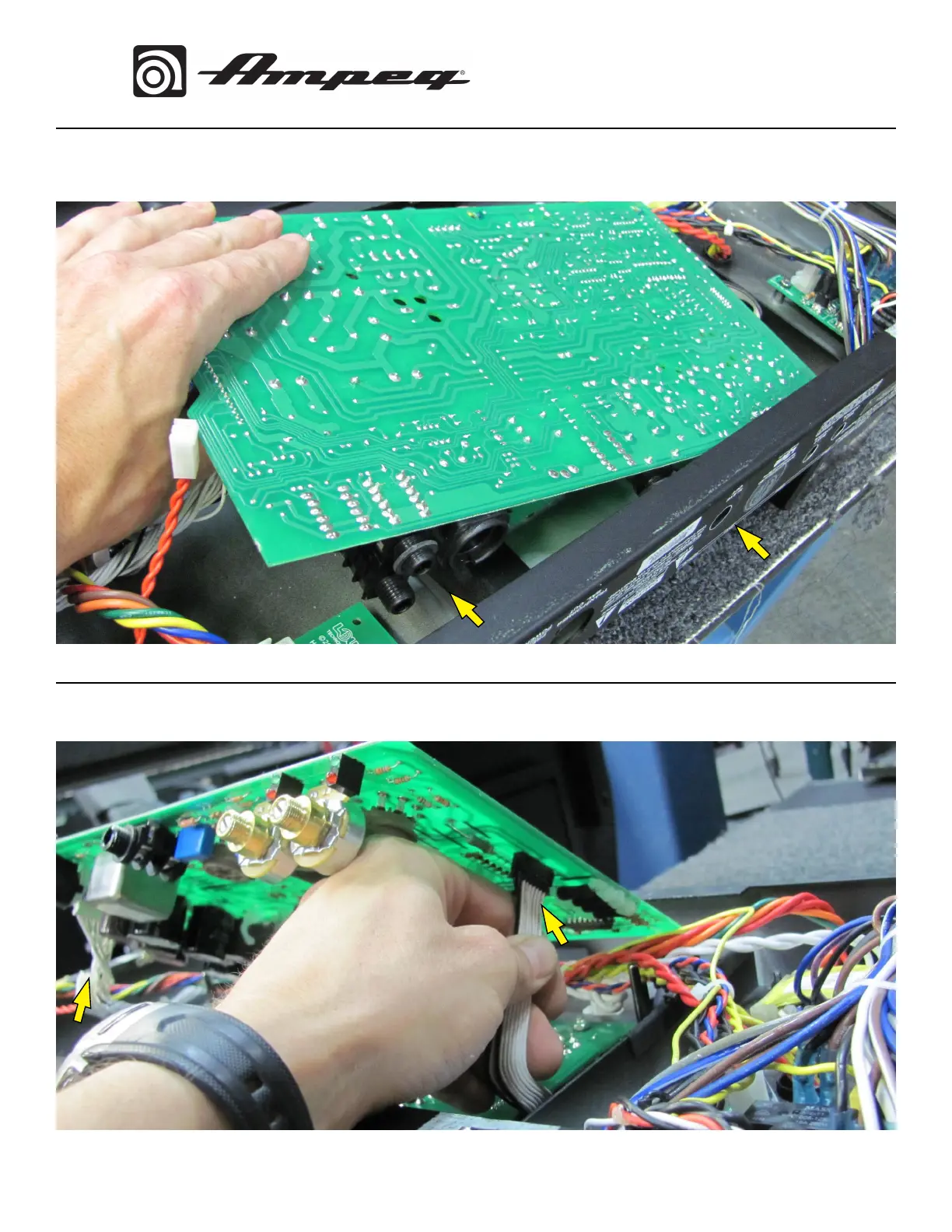

15. Once accessible disconnect both the preamp cable on the left and the tube board
cable on right of the underside of the PCB board , See Figure 15a.
14. Now carefully lift the PCB slightly back and up to clear the jacks and get access to the
tube cable to be disconnected. As seen in Figure 14a. NOTE! there are three washers on the
1/4” jacks and two lock washers on the bias pots that you should take care not to loose.
Figure 14a
Figure 15a

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
