Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 9 of 11
Disassembly Procedure
Figure 12a
Figure 13a
Figure 12b
Figure 13b

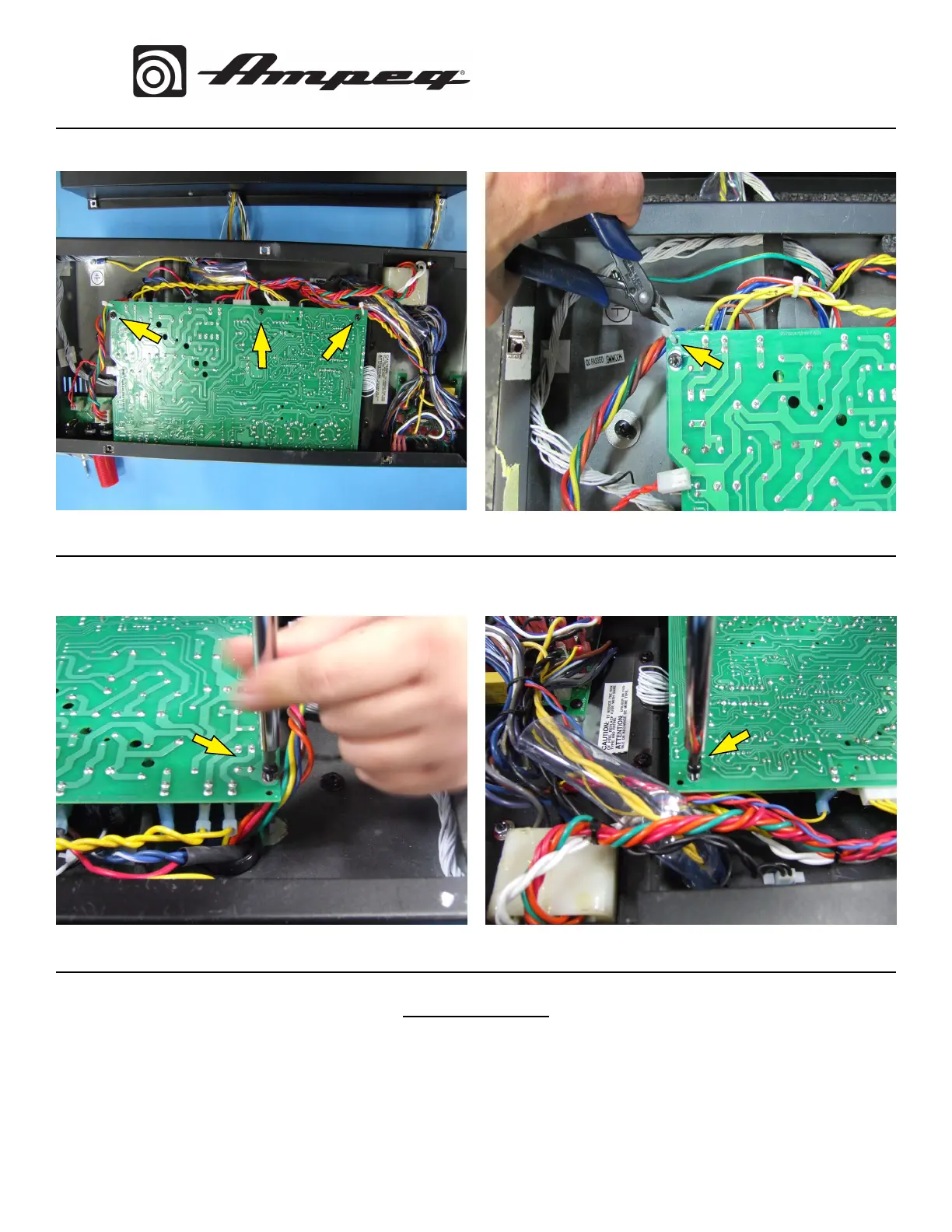

12. Cut the two cable ties found on each corner of the main board. See gure 12a and 12b.
13. Remove the two screws located next to where the cable ties were located. There is also
third located between them that will also need to be removed, see Figure 12a, 13a and 13b.
Coffee break!
I am personally having a Quad Mocha.

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
