Disassembly Procedure

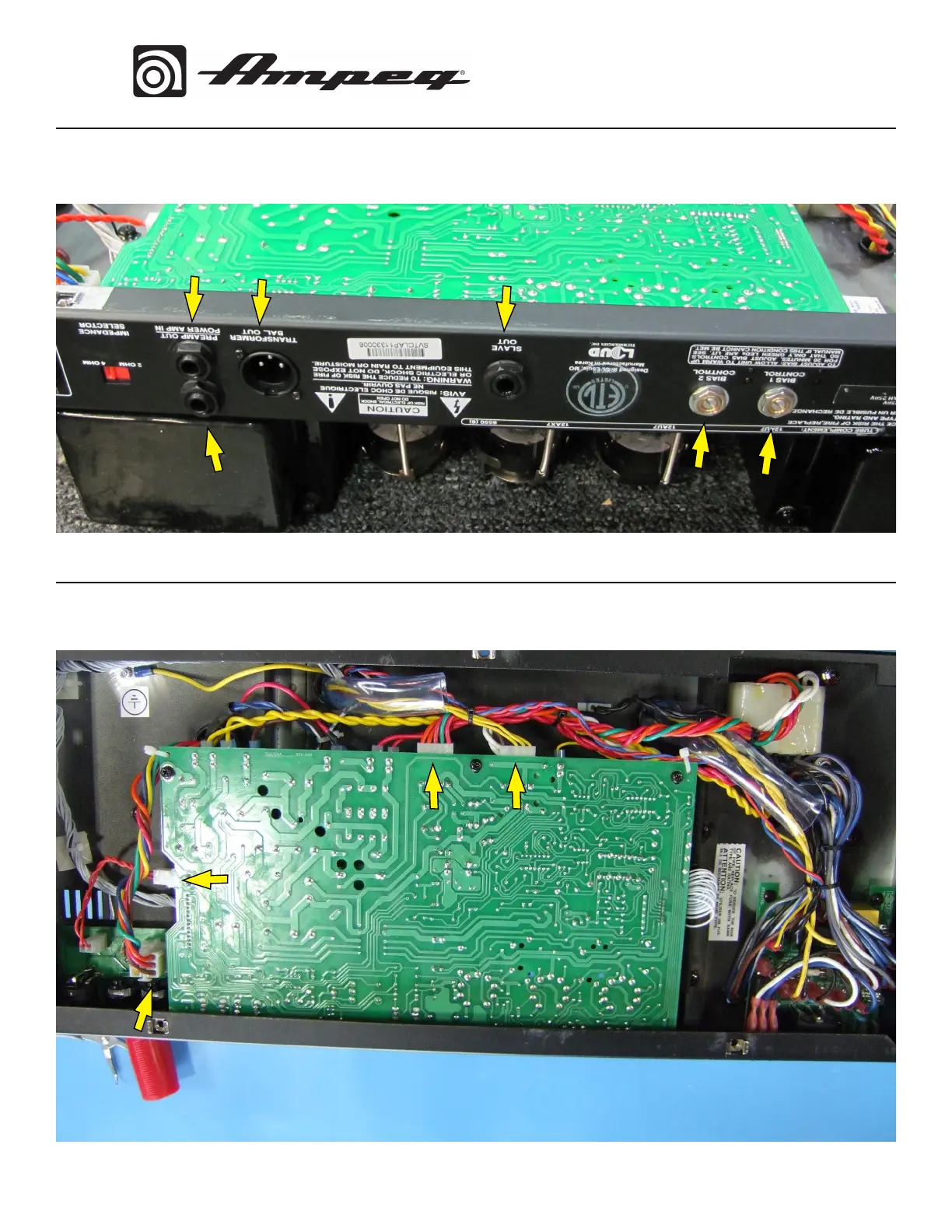

11. Now disconnect the connections for the Preamp, Speaker and Filament Transformer. See
Figure 11a.
10. Remove the nuts and washers for Pre Amp Out, Power Amp Out, Slave Out, Bias 1 Control
and Bias 2 Control. Remove the two screws for the Transformer Bal Out. See Figure 10a.
Figure 10a
Figure 11a
