Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 7 of 11
Disassembly Procedure

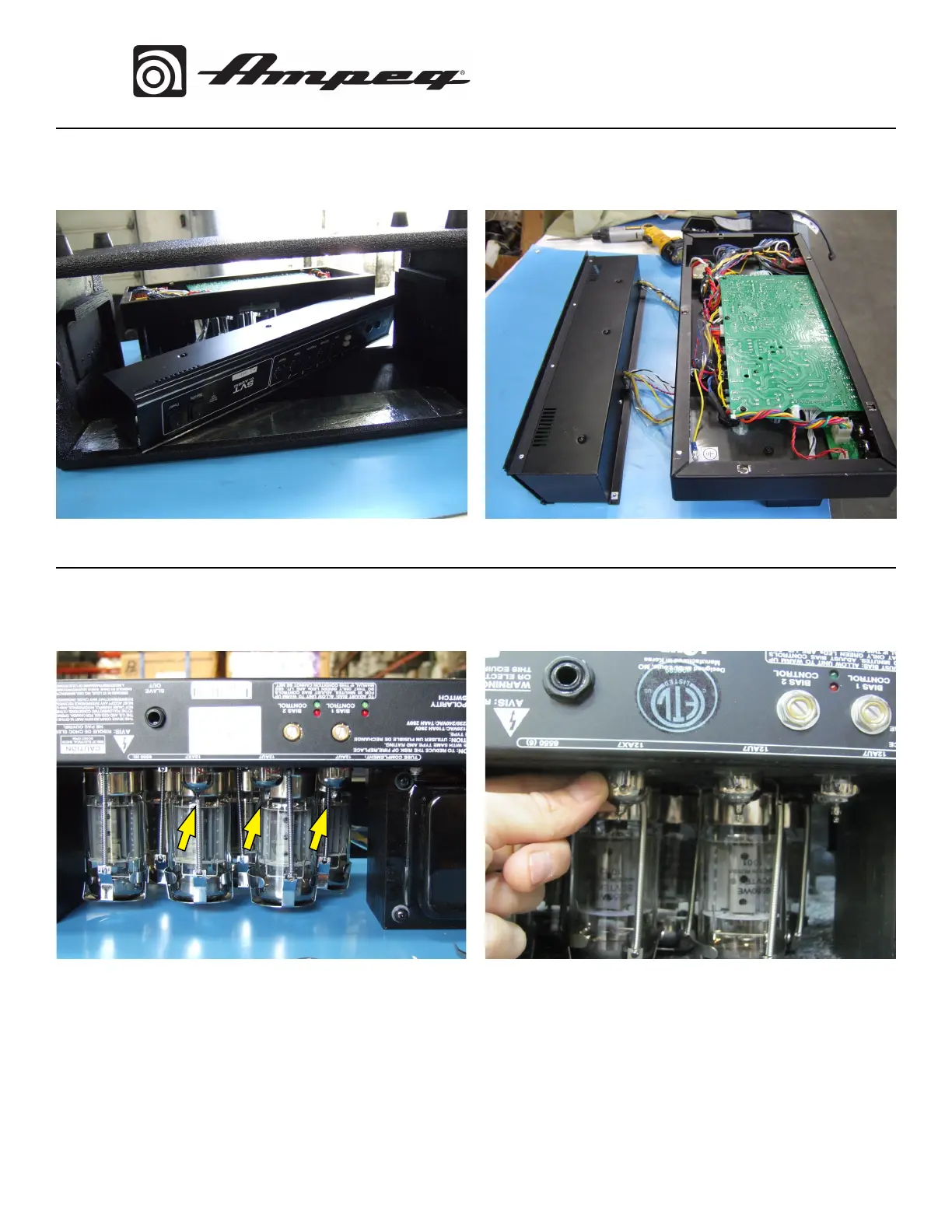

9. Now pull the Pre Amp section thru the cabinet as seen in Figures 9a. Once it is clear of the
cabinet it is suggested to set the cabinet aside as seen in Figure 9b.
Figure 9b
Figure 10b
Figure 9a
Figure 10a
10. Carefully remove the three Pre Amp tubes and set aside in a safe place for reassem-
bly. Shown in Figure 10b. It is best to pull straight down and not oscillate or rock the tube as
much Possible.

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
