Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 6 of 11
Disassembly Procedure

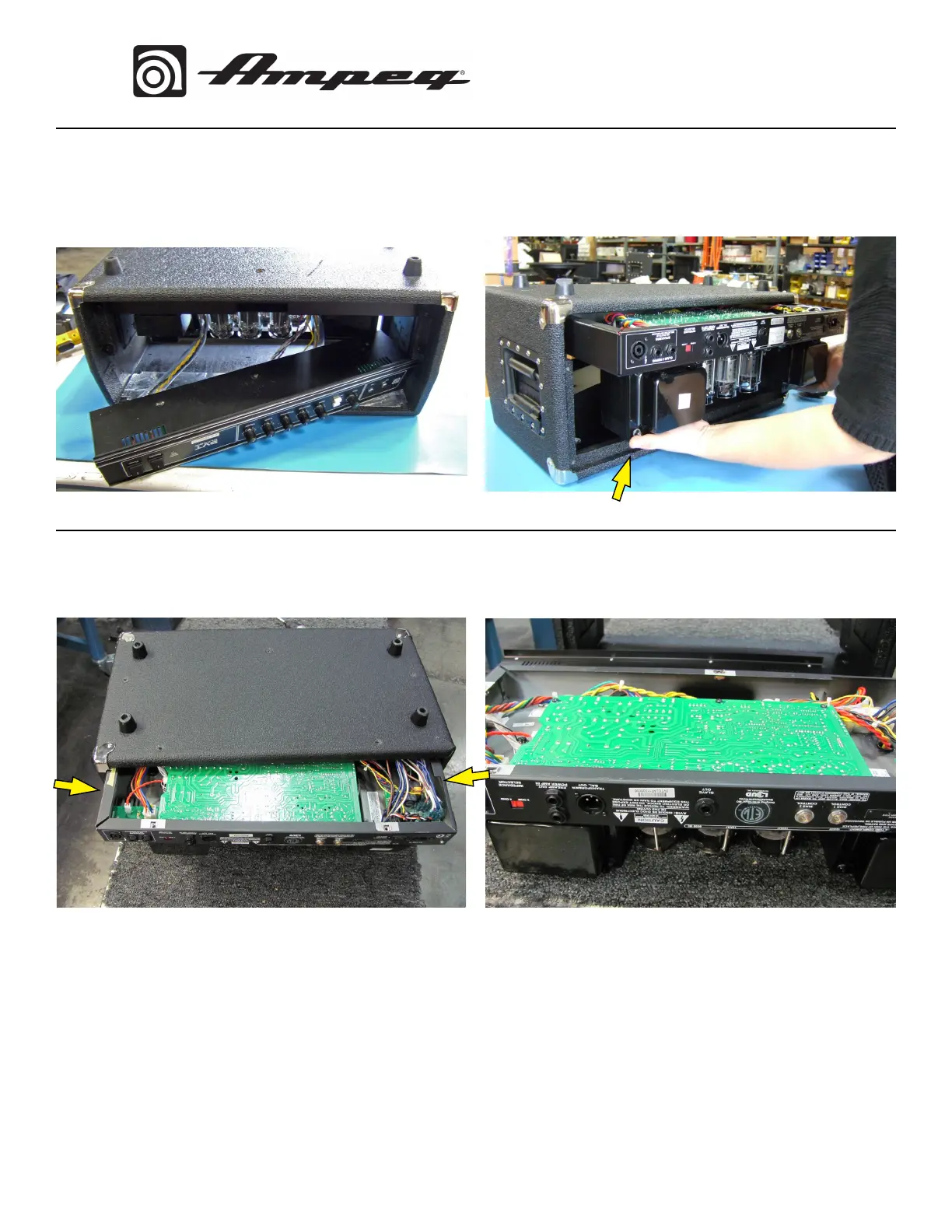

8. Once the Power Amp assembly is halfway out, seen in Figure 8a you will be able to grab
the chassis from the sides to complete the removal. Set it carefully on the transformers once
it is clear of the cabinet. Remember the Pre Amp is attached and care should be taken.
Figure 7b
Figure 8b
Figure 7a
Figure 8a
7. Before removing the Power amp assembly, place the Preamp chassis at an angle as seen
in Figure 7a. Support the Power amp assembly by the underside of the two transformers,
carefully pull out the entire assembly half way. NOTE! It is very heavy so care should be taken
during this process. See Figure 7b.

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
