Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 5 of 11

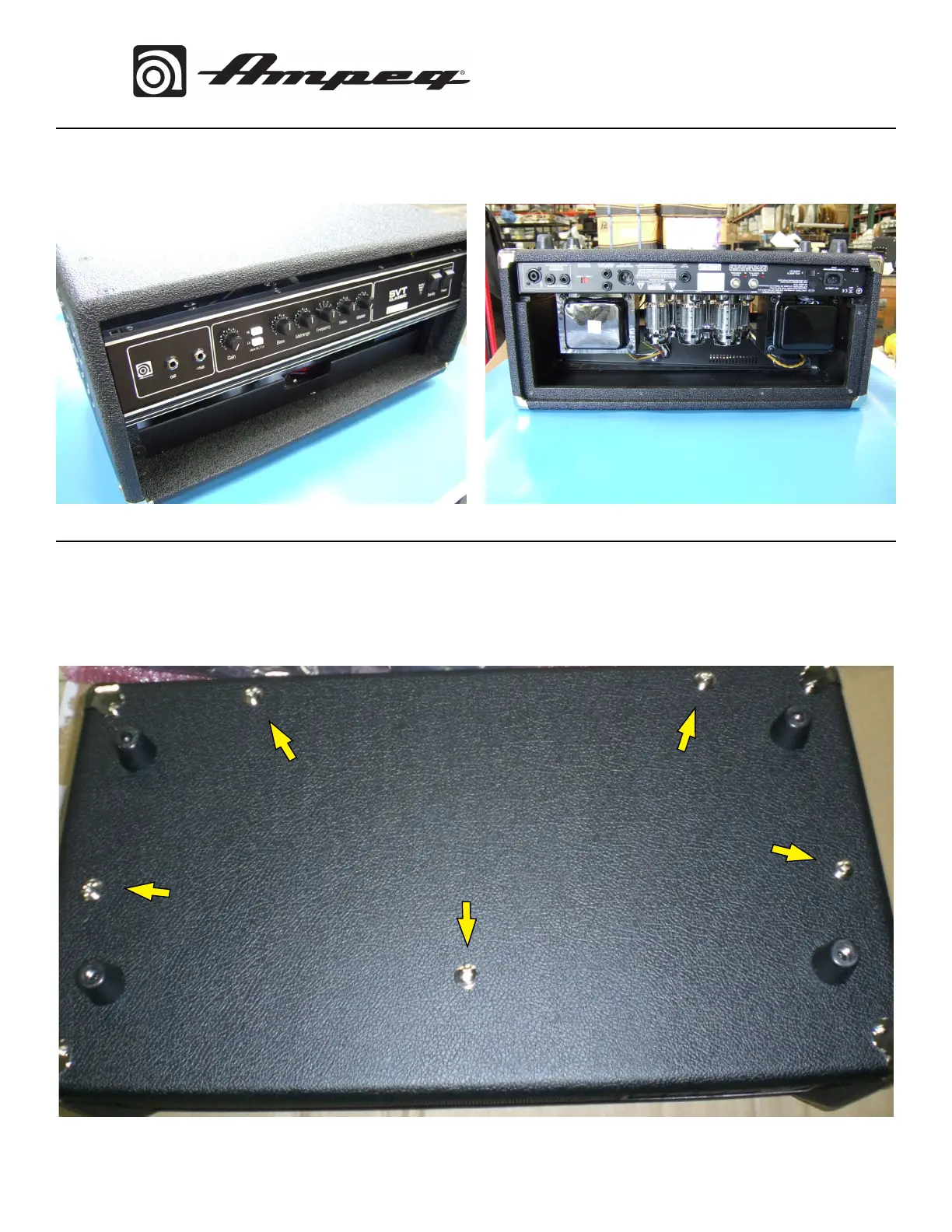

6. Locate and remove the ve screws to take out the Power amp assembly.
WARNING! Some older units do not have cabinet bracing for the Power Amp.
The Power Amp may need to be supported from the underside of the two transformers.
Disassembly Procedure
5. Place preamp section back into place, you do not need to bolt it in . Carefully turn the
whole cabinet over to get access to Power Amp screws on the bottom, as seen in Figure 5a
and 6a.
Figure 5bFigure 5a
Figure 6a

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
