Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 4 of 11
Disassembly Procedure
4. Pull the grill forward just enough to access the fans power cable as seen in gure 4a.
Note! The velcro tabs that keep the grill in place can be reluctant so take care not to dam-
age the power connector. Once the cable is disconnected it is safe remove the grill com-
pletely.
Figure 3a

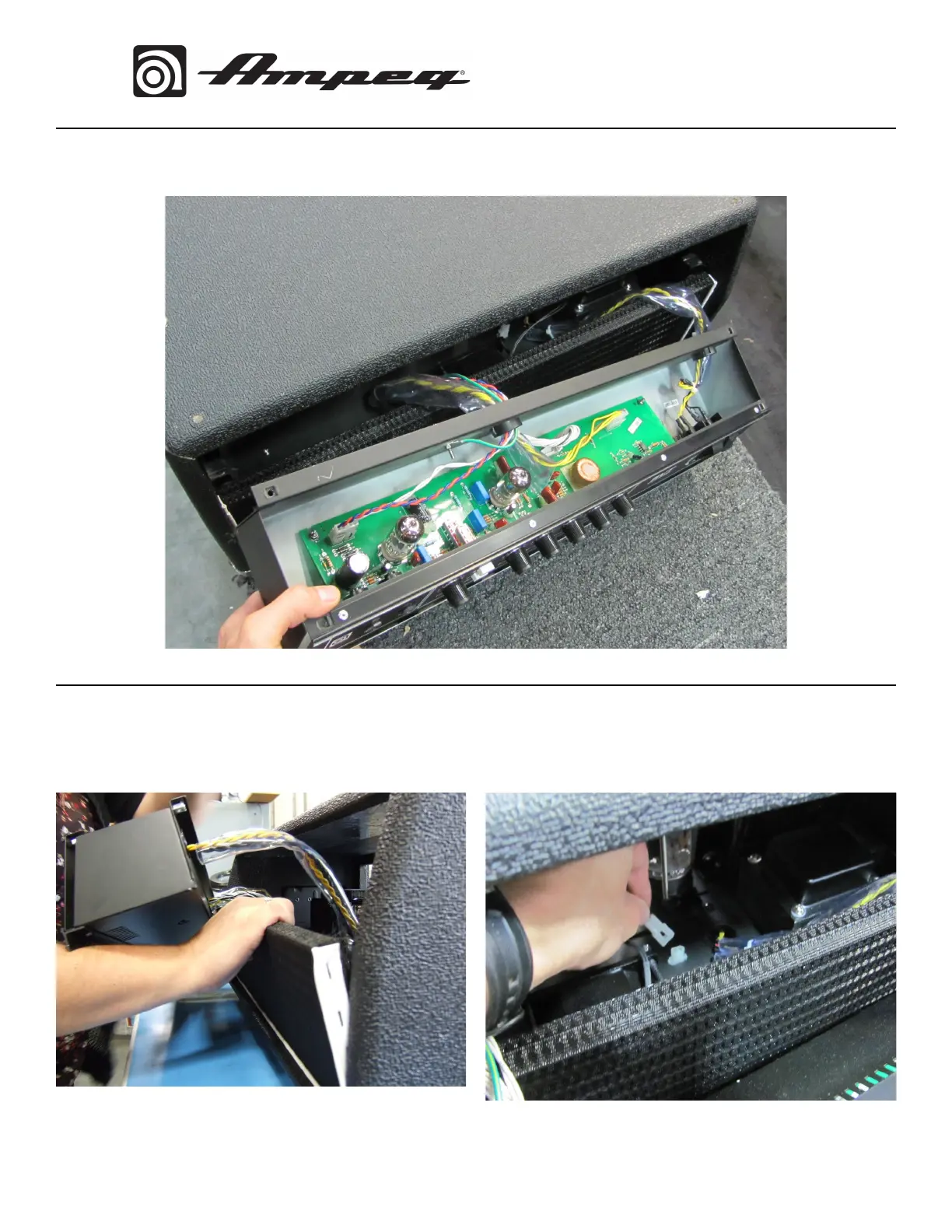

3. Once the Preamp assembly is free carefully pull it out but not completely, as seen in Figure
3a. This is only to remove the front grill and fan.
Figure 4a Figure 4b

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
