Ampeg SVT-CL Disassembly Procedure

SVT-CL Dissasembly.pdf
Page 3 of 11
Procedure
Disassembly Procedure
Figure 2bFigure 2a
2. Place the product with the front facing forward. Locate the four screws for the pre-amp chassis, on the
top front, as shown in gures 1a and 1b. Also it is advised to remove the washers as they are not afxed and
tend to fall off and get lost.
Figure 1a

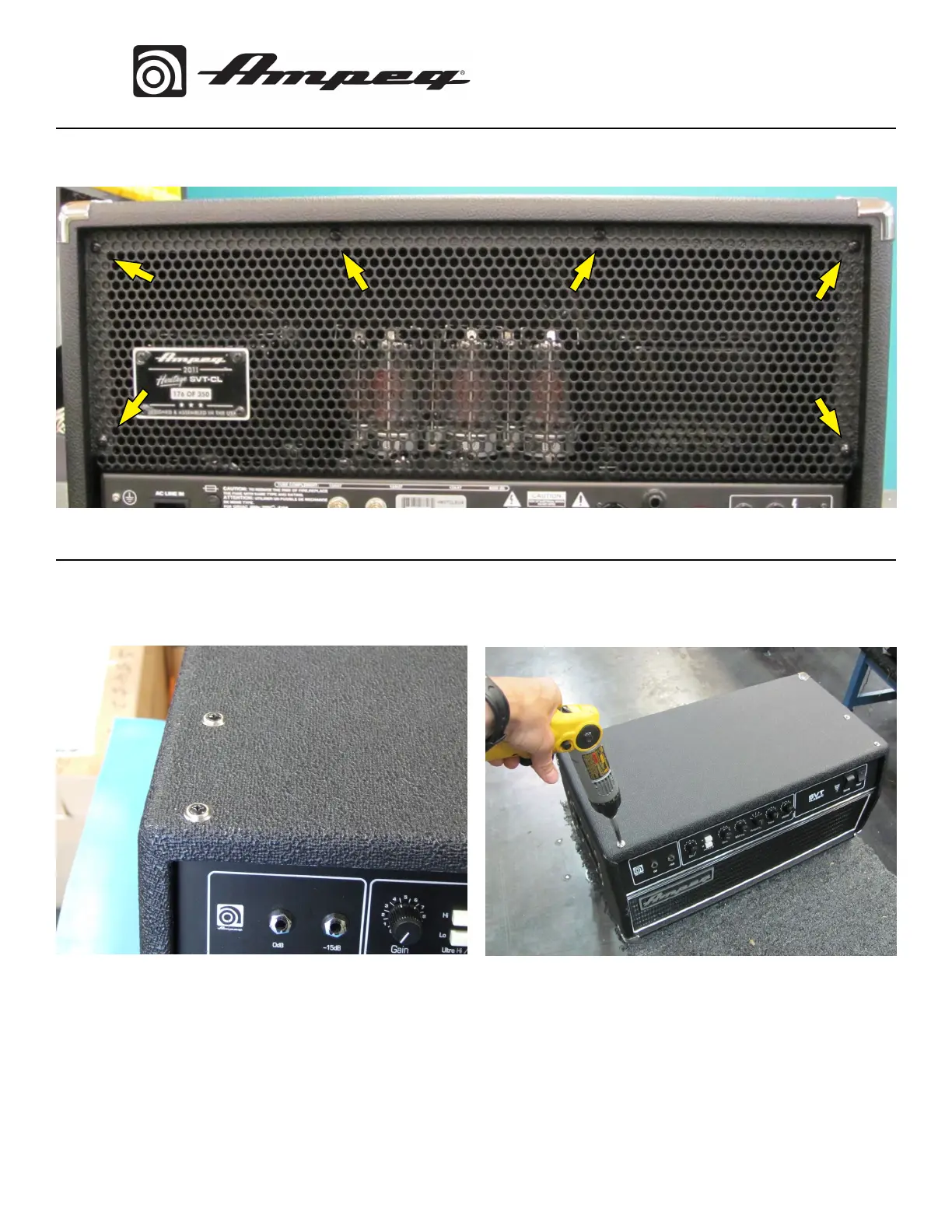

1. Place the product onto work surface with the back of the unit facing you. Locate and remove the six
screws to detach the rear grill, as seen in Figure 1a.

Ampeg SVT-CL Specifications

Power

output power rating	300 watts RMS
power requirements	115VAC, 60Hz, 460VA; 100/115VAC, 50/60Hz, 460VA; 230VAC, 50/60Hz, 460VA

Tone Control Range

bass	±12dB @ 40Hz
midrange	+10dB, -20dB @ 220, 450, 800, 1.6k or 3kHz
treble	+15dB, -20dB @ 4kHz
ultra low	+2dB @ 40Hz, -10dB @ 500Hz
ultra high	+9dB @ 8kHz

System Specifications

total system gain	67dB @ 1kHz
signal to noise ratio	80dB typical
tube complement	12AX7 (3), 12AU7 (2), 6550 (6)

Weight and Dimensions

size (W x H x D)	24” W x 11.5” H x 13” D
weight	80 lbs
