Re ference
Symbo l
83
85
84
78
78
79
80
75
10
11
1
13
14
2

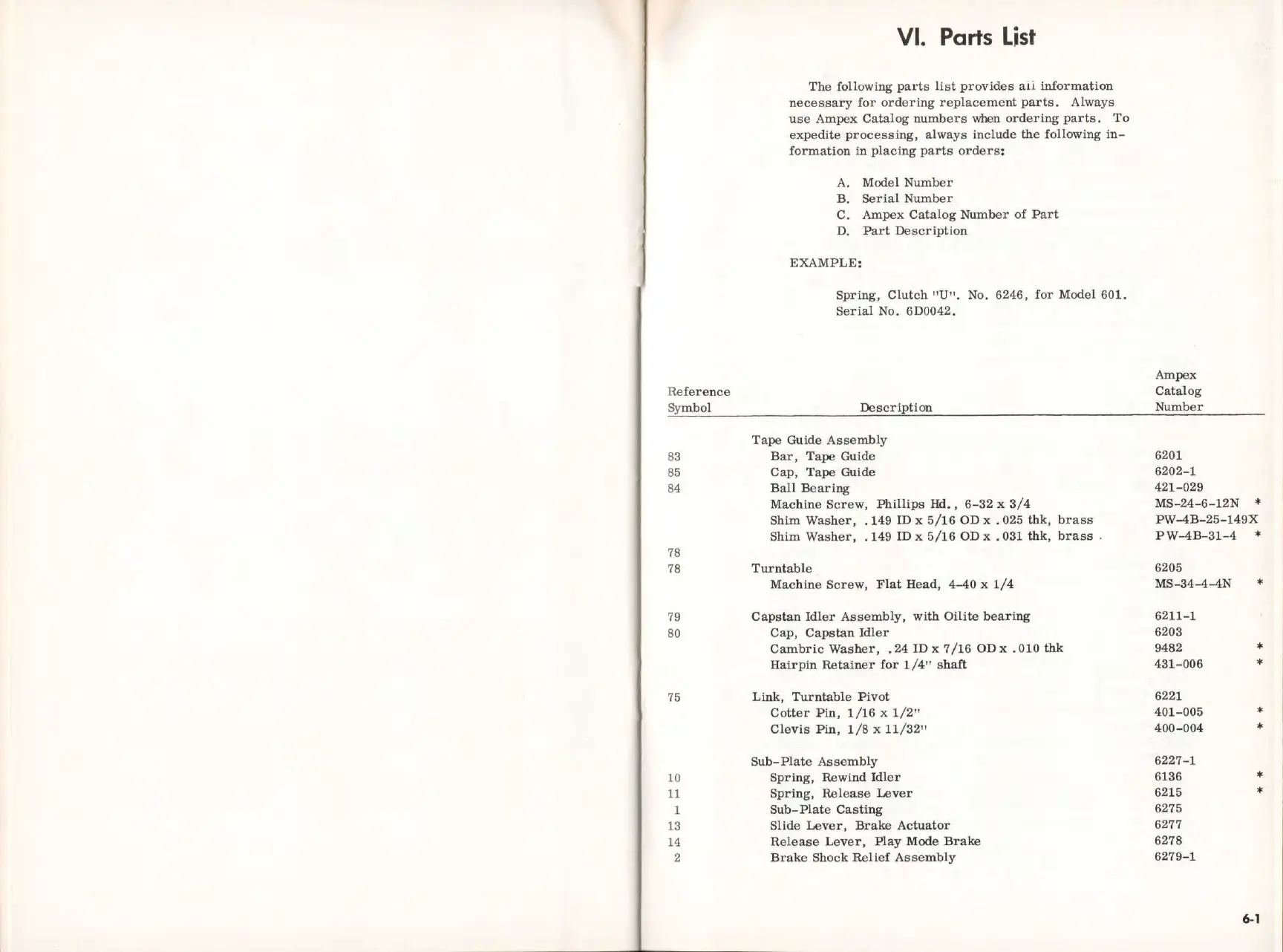

VI. Parts List
The following parts lis t provides a1i informat i on
necessary for ordering replacemen t parts. Al ways
use Ampex Catalog numbers when or d er ing parts . To
expedite processing, always include the following in-
formation in placing parts orders:
A. Model Number
B. Serial Number
C. Ampex Catalog Numb er of Part
D. Part Description
EXAMPLE:
Spring, Clutch
11
U
11
•
No. 6246, for Model 60 1.
Serial No. 6D0042.
Description
Ta pe Guide Assembly
Bar, Tape Guide
Cap, Tape Guide
Ball B eari ng
Machine Screw, Phillips Hd., 6-32 x 3/4
Shim Washer, .149 ID x 5/16 OD x. 025 thk , brass
Shim Washer, . 149 ID x 5/16 OD x . 031 thk,
brass .
Turntabl e
Machine Screw, Flat H ea d, 4-40 x 1 /4
Capstan Idl er Assembly, with Oilite bearing
Cap, Capstan Idl er
Cambric Washer, . 24 ID x 7 / 16 OD x . 010 thk
Hairpin Retainer for 1/4" shaft
Link, Tu r ntabl e Pivot
Cotter P in, 1/16 x 1/2
11
Clevis Pin, 1/8 x 11/32
11
Sub-Plate Asse mbly
Spring, Rewind Idler
Spring, Rel e ase Lev er
Sub-Plat e Cas t ing
Slide Lever, Brake Actuator
Re lease Lever, Play Mode Brake
Brake Shock Relief Assembly
Ampex
Catalog
Numbe r
6201
6202-1
421-029
MS-24-6-12N
*
PW-4B-25-149X
PW-4B-31-4
*
6205
MS-34-4-4N
*
6211-1
6203
9482
*
431-006
*
6221
401-005
*
400-004
*
6227-1
6136
*
6215
*
6275
6277
6278
6279-1
6-1
