4) OPERATION

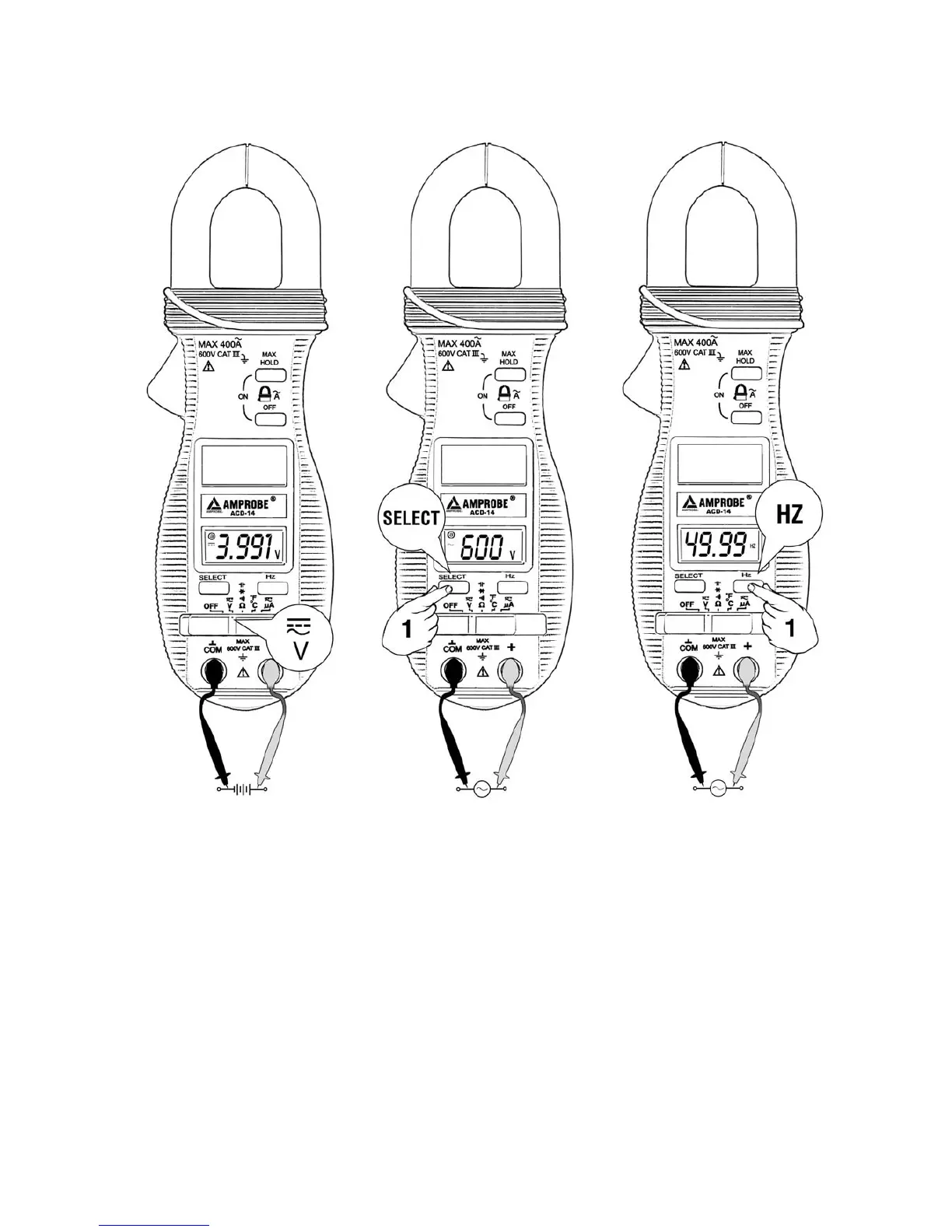

DC Voltage, AC Voltage, Hz Frequency functions
Inputs are made through the test lead terminals. Move the slide-switch to the “V”
position. The unit defaults at DC voltage. Press SELECT button momentarily to select
AC voltage.
To activate the Hz Frequency function, press the Hz button momentarily.
Note: 400.0mV range is designed with 1000M
Ω
high input impedance for least current
drain in measuring small signals, and can cope better with most commercially available
voltage output transducers/adapters. The non-zero display reading is normal when the
meter inputs are open circuit, which will not affect actual measurement accuracy. The
