Amprobe AM-500 - Instrument Overview

AM-500 Autoranging Mulitmeter
AM-500-EUR DIY-PRO Digital Multimeter
8
7
1
32
4
5
6
1

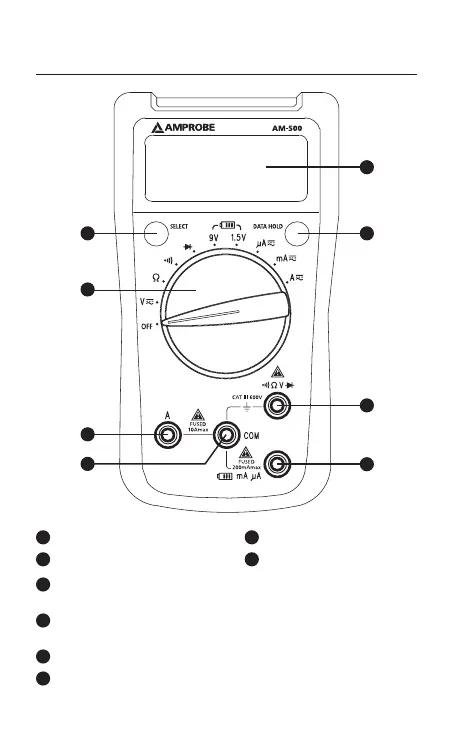

LCD Display
2
SELECT Button
3
DATA HOLD Button
4
Rotary Switch
5
Input Terminal for voltage, diode, resistance and
continuity measurement
6
Input Terminal for battery test and AC/DC mA or μA
measurement
7
Input Terminal for AC/DC A measurement to10A
8
COM (return) terminal for all measurements
