Chapter 2
Expansion Slots
This mainboard has one PCI 32-bit expansion slots and one 8/16-
bit ISA slot.
Use the PCI slot to install a 32-bit PCI expansion card. Use the ISA
slot to install a legacy 8/16-bit expansion card.
Installing an Expansion Card
1. Locate the PCI or ISA slot on the mainboard.
2. Remove the blanking plate from the appropriate expansion slot
on the system chassis.
3. Install the edge connector of the expansion card into the slot
and press it quite firmly down so that it is seated correctly.
4. Secure the bracket of the expansion card into the expansion
slot in the system chassis using the screw that held the
blanking plate in place.

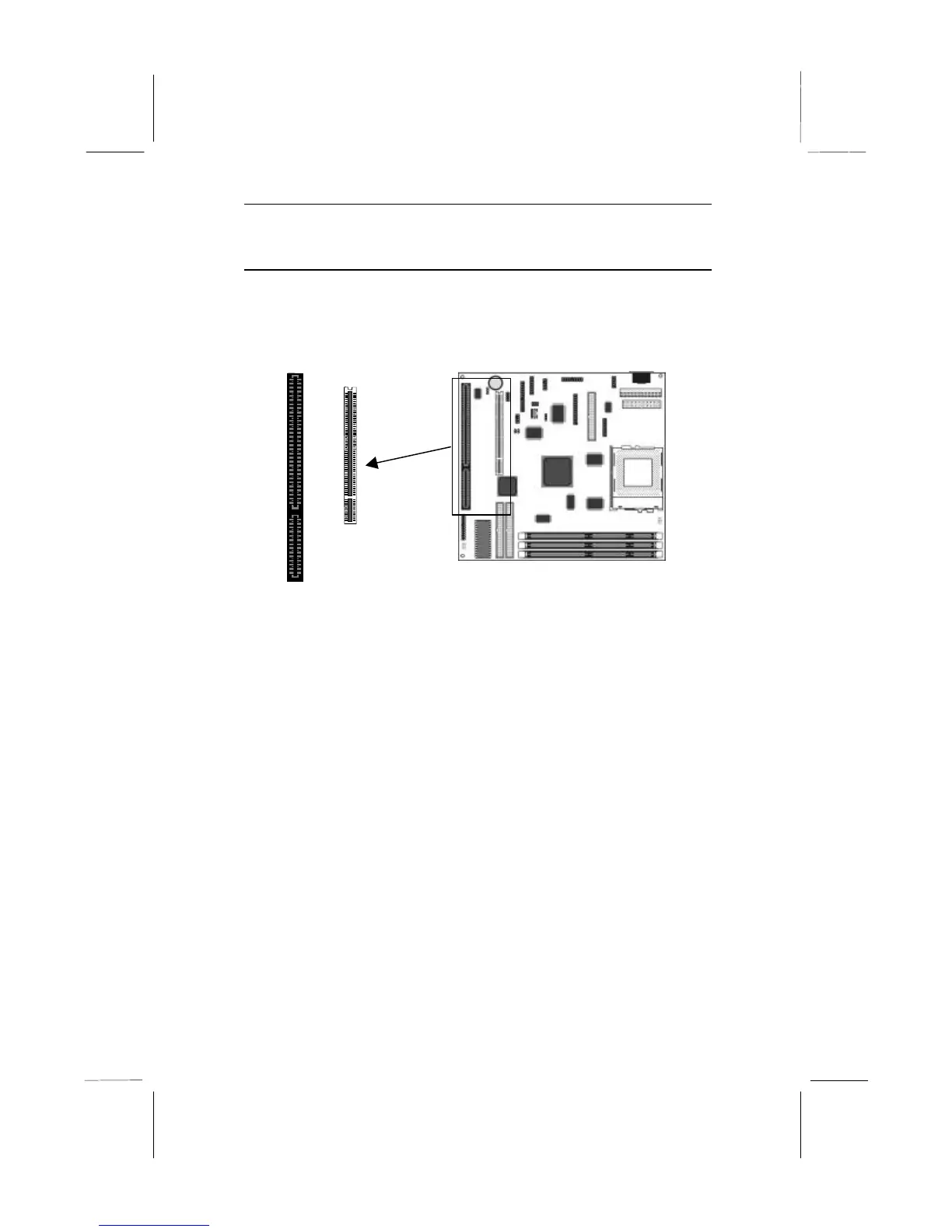

PCI1
ISA1
