AMSTRAD CTM644 - Keyboard Exploded Diagram; Keyboard Parts Inventory

2
1
4

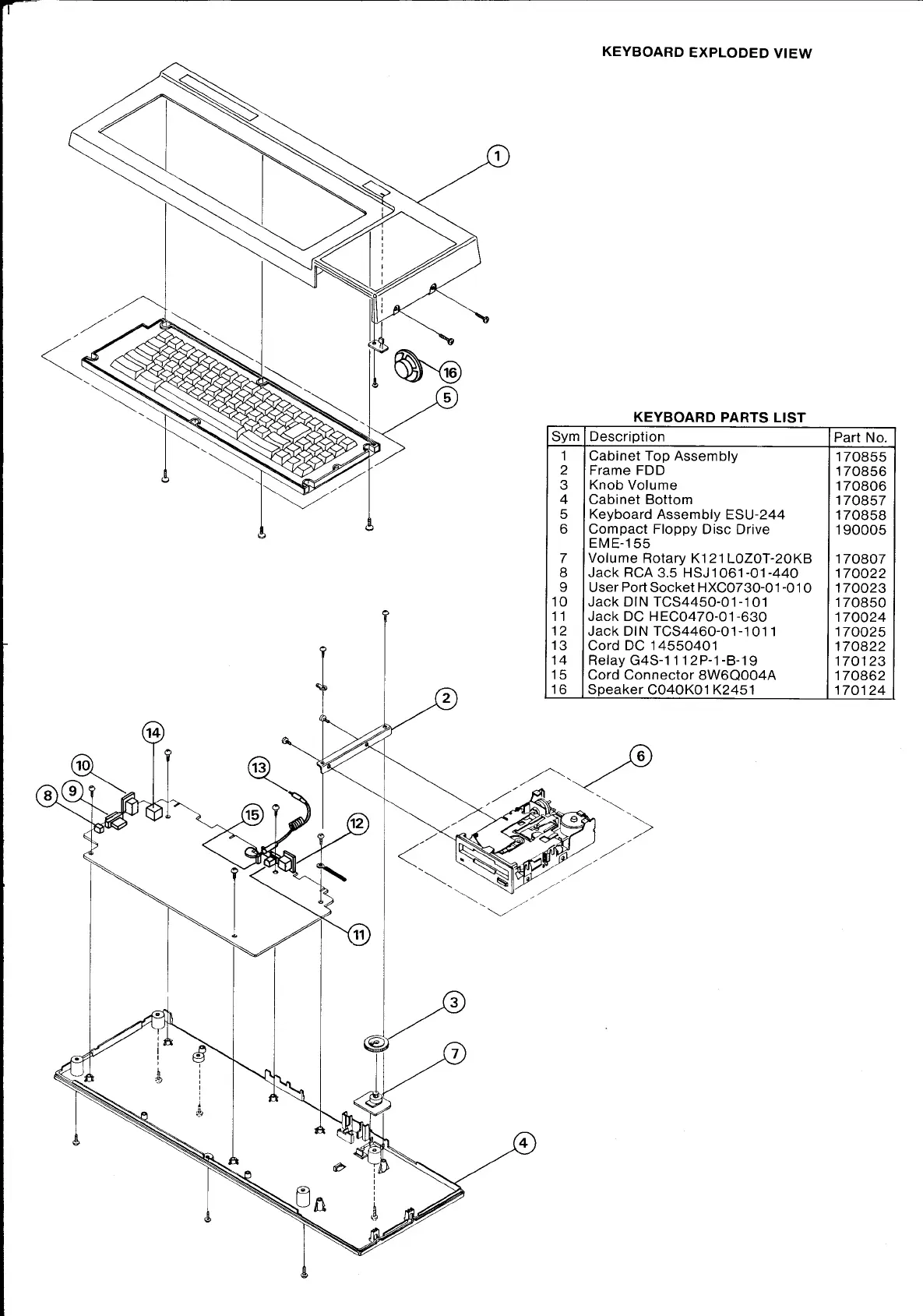

KEYBOARD EXPLODED VIEW
KEYBOARD PARTS LIST
Sym Description
1 Cabinet Top Assembly
2 Frame FDD
3
Knob Volume
4 Cabinet Bottom
5 Keyboard Assembly ESU-244
6 Compact Floppy Disc Drive
EME-155
7 Volume Rotary K121 LOlOT-20KB
8 Jack RCA 3.5 HSJ1061-01-440
9 User Port Socket HXC0730-0 1-0 10
10
Jack DIN TCS4450-01-101
11 Jack DC HEC0470-01-630
12 Jack DIN TCS4460-01-1011
13 Cord DC 14550401
14 Relay G4S-1112P-1-B-19
15 Cord Connector 8W6Q004A
16 SpeakerC040K01K2451
Part No.
170855
170856
170806
170857
170858
190005
170807
170022
170023
170850
170024
170025
170822
170123
170862
170124
