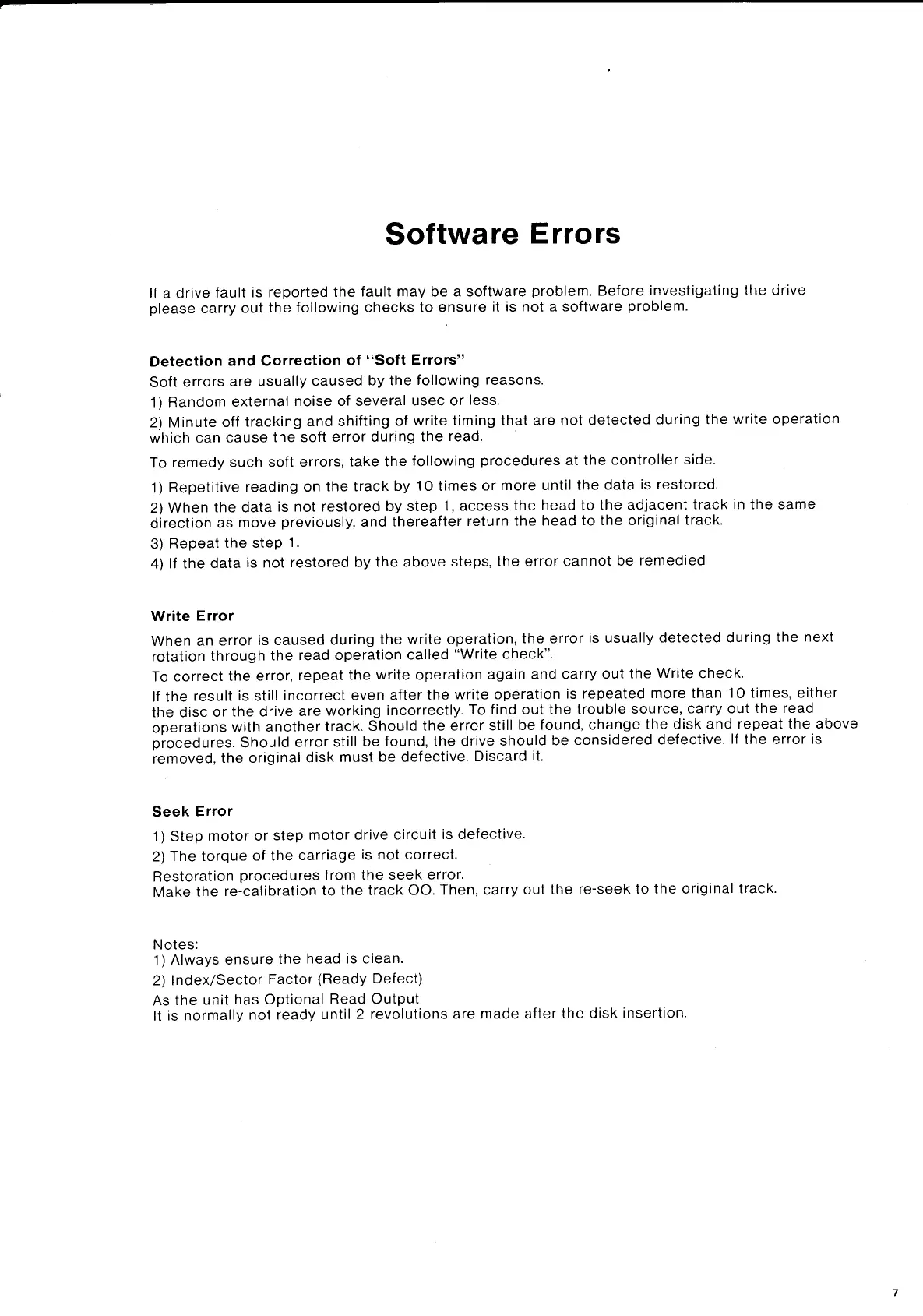

Software Errors
If a drive fault is reported the fault may be a software problem. Before investigating the drive
please carry out the following checks to ensure it is not a software problem.
Detection and Correction of "Soft Errors"
Soft errors are usually caused by the following reasons.
1) Random external noise of several usec or less.
2) Minute off-tracking and shifting of write timing that are not detected during the write operation
which can cause the soft error during the read.
To
remedy such soft errors, take the following procedures at the controller side.
1) Repetitive reading on the track by 10 times or more until the data is restored.
2)
When the data is not restored by step 1, access the head to the adjacent track in the same
direction as move previously, and thereafter return the head to the original track.
3)
Repeat the step 1.
4) If the data is not restored by the above steps, the error cannot be remedied
Write Error
When an error is caused during the write operation, the error is usually detected during the next
rotation through the read operation called "Write check".
To correct the error, repeat the write operation again and carry out the Write check.
If the result is still incorrect even after the write operation is repeated more than 10 times, either
the disc or the drive are working incorrectly. To find out the trouble source, carry out the read
operations with another track. Should the error still be found, change the disk and repeat the above
procedures. Should error still be found, the drive should be considered defective. If the 8rror is
removed,
the original disk must be defective. Discard it.
Seek Error
1) Step motor or step motor drive circu it is defective.
2) The torque of the carriage is not correct.
Restoration procedures from the seek error.
Make the re-calibration to the track 00. Then, carry out the re-seek to the original track.
Notes:
1) Always ensure the head is clean.
2) Index/Sector Factor (Ready Defect)
As
the unit has Optional Read Output
It is normally not ready until 2 revolutions are made after the disk insertion.
