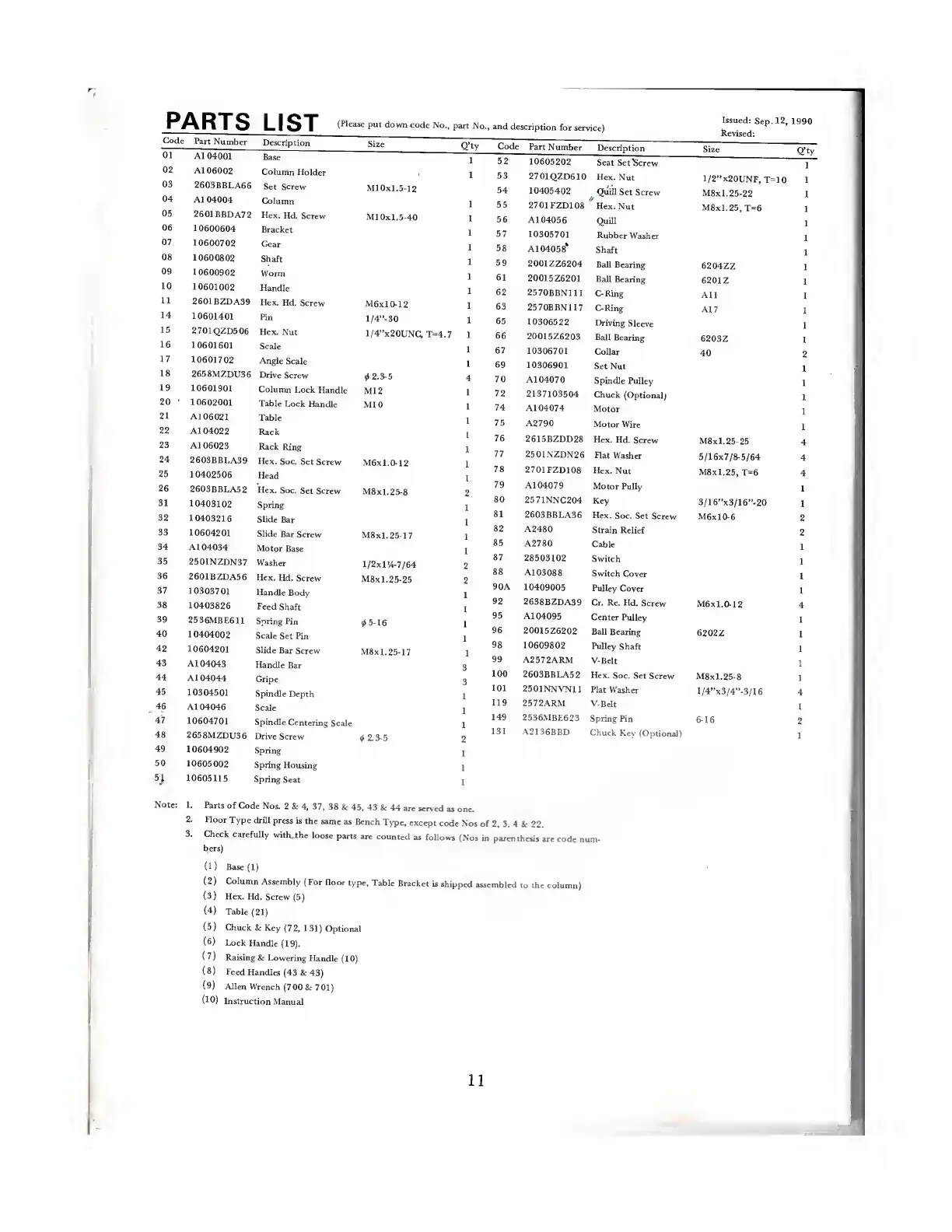

P ART S LIST (I* 1 ease put down code No., part No., and description for service)
Issued: Sep. 12, 1990
Code
Part Number
Description
Size
Q’ty
Code
Part Number
Description
Size
02
A104001
A106002
Base
Column Holder
1
1
52
53
10605202
2701QZD610
Seat Set’Screw
Hex. Nut
l/2”x20UNF, T=10
1
1
2603BBLA66
Set Screw
M10xl.5-12
54
10405402
Quill Set Screw
M8xl.25-22
04
A104004
Column
1
55
2701FZD108
Hex. Nut
M8xl.25, T=6
05
2601BBDA72
Hex. Hd. Screw
Ml Ox 1.5-40
1
56
A104056
Quill
1
1
1
06
07
08
10600604
10600702
10600802
Bracket
Gear
Shaft
1
1
1
57
58
59
10305701
A104058*
2001ZZ6204
Rubber Washer
Shaft
Ball Bearing
6204ZZ
10600902
Worm
1
61
20015Z6201
Ball Bearing
6201Z
1
10
10601002
Handle
1
62
2570BBN111
C-Ring
All
11
2601BZDA39
Hex. Hd. Screw
M6xl0-12
1
63
2570BBN117
C-Ring
A17
14
10601401
Pin
1/4”-30
1
65
10306522
Driving Sleeve
15
2701QZD506
Hex. Nut
l/4”x20UNC, T=4.7
1
66
20015Z6203
Ball Bearing
6203Z
16
17
18
10601601
10601702
2658MZDU36
Scale
Angle Scale
Drive Screw
0 2.3-5
1
1
4
67
69
70
10306701
10306901
A104070
Collar
Set Nut
Spindle Pulley
40
2
1
19
10601901
Column Lock Handle
Ml 2
1
72
2137103504
Chuck (Optional;
20
21
22
23
24
10602001
A106021
A104022
A106023
2603BBLA39
Table Lock Handle
Table
Rack
Rack Ring
Hex. Soc. Set Screw
M10
M6xl.0-12
1
1
1
1
74
75
76
77
A104074
A2790
2615BZDD28
2501NZDN26
Motor
Motor Wire
Hex. Hd. Screw
Flat Washer
M8xl.25-25
5/16x7/8-5/64
1
1
4
4
25
10402506
Head
78
2701FZD108
Hex. Nut
M8xl.25, T=6
4
26
2603BBLA52
Hex. Soc. Set Screw
M8xl.25-8
2
79
A104079
Motor Pully
1
31
10403102
Spring
80
2571NNC204
Key
3/16”x3/16”-20
1
32
10403216
Slide Bar
81
2603BBLA36
Hex. Soc. Set Screw
M6xl0-6
2
33
10604201
Slide Bar Screw
M8xl.25-17
1
82
A2480
Strain Relief
2
34
35
A104034
2501NZDN37
Motor Base
Washer
1/2x1'/ 4 -7/64
1
2
85
87
A2780
28503102
Cable
Switch
1
1
36
2601BZDA56
Hex. Hd. Screw
M8xl. 25-25
2
88
A103088
Switch Cover
1
37
38
10303701
10403826
Handle Body
Feed Shaft
1
1
90A
92
10409005
2638BZDA39
Pulley Cover
Cr. Re. Hd. Screw
M6xl.0-12
1
4
39
2536MBE611
Spring Pin
0 5-16
95
A104095
Center Pulley
1
40
10404002
Scale Set Pin
96
20015Z6202
Ball Bearing
6202Z
1
42
10604201
Slide Bar Screw
M8xl.25-17
98
10609802
Pulley Shaft
1
43
44
A104043
A104044
Handle Bar
Gripe
3
99
100
A2572ARM
2603BBLA52
V-Belt
Hex. Soc. Set Screw
M8xl.25-8
1
1
45
10304501
Spindle Depth
101
2501NNVN11
Plat Washer
l/4”x3/4”-3/l 6
4
46
47
A104046
10604701
Scale
Spindle Centering Scale
1
1
119
149
2572ARM
2536MBE623
V-Belt
Spring Pin
6-16
1
2
48
2658MZDU36
Drive Screw
0 2.3-5
2
131
A2136BBD
Chuck Key (Optional)
1
49
50
10604902
10605002
10605115
Spring
Spring Housing
Spring Seat
Note: 1. Parts of Code Nos. 2 & 4, 37, 38 & 45, 43 & 44 are served as one.
2. Floor Type drill press is the same as Bench Type, except code Nos of 2, 3. 4 Sc 22.
S. Check carefully with.,the loose parts are counted as follows (Nos in parenthesis are code num-
bers)
(1) Base (1)
(2) Column Assembly (For floor type, Table Bracket is shipped assembled to the column)
(3) Hex. Hd. Screw (5)
(4) Table (21)
(5) Chuck & Key (72, 131) Optional
(6) Lock Handle (19).
(7) Raising & Lowering Handle (10)
(8) Feed Handles (43 & 43)
(9) Allen Wrench (700 & 701)
(10) Instruction Manual
