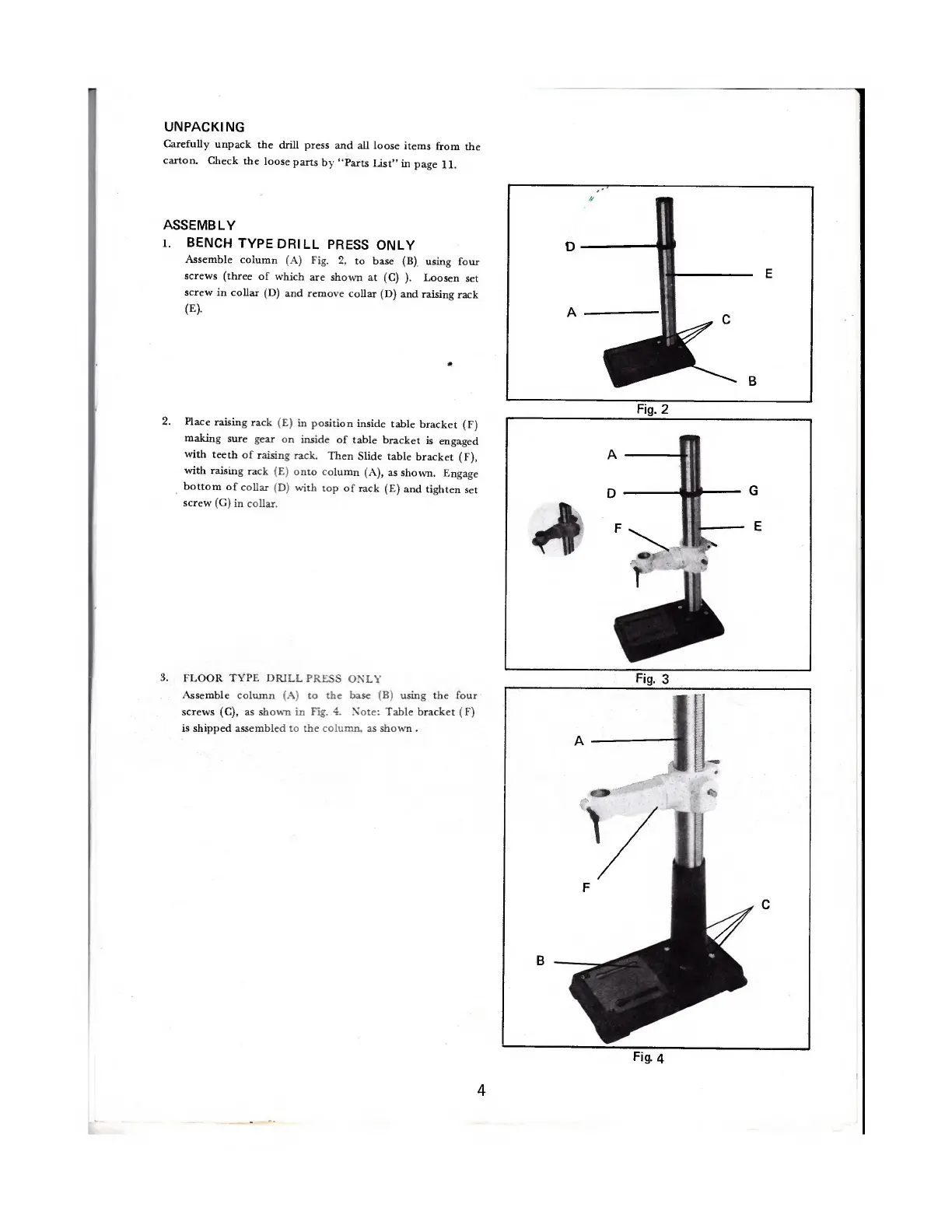

UNPACKING

Carefully

unpack

the

drill

press

and

all

loose

items

from

the

carton.

Check

the

loose

parts

by

“Parts

List”

in

page

11.

ASSEMBLY

1.

BENCH

TYPE

DRILL

PRESS

ONLY

Assemble

column

(A)

Fig.

2,

to

base

(B)

using

four

screws

(three

of

which

are

shown

at

(C)

).

Loosen

set

screw

in

collar

(D)

and

remove

collar

(D)

and

raising

rack

(E).

2.

Place

raising

rack

(E)

in

position

inside

table

bracket

(F)

making

sure

gear

on

inside

of

table

bracket

is

engaged

with

teeth

of

raising

rack.

Then

Slide

table

bracket

(F),

with

raising

rack

(E)

onto

column

(A),

as

shown.

Engage

bottom

of

collar

(D)

with

top

of

rack

(E)

and

tighten

set

screw

(G)

in

collar.

3.

FLOOR

TYPE

DRILL

PRESS

ONLY

Assemble

column

(A)

to

the

base

(B)

using

the

four

screws

(C),

as

shown

in

Fig.

4.

Note:

Table

bracket

(F)

is

shipped

assembled

to

the

column,

as

shown

.

4
