BENCH AND FLOOR DRILL PRESSES

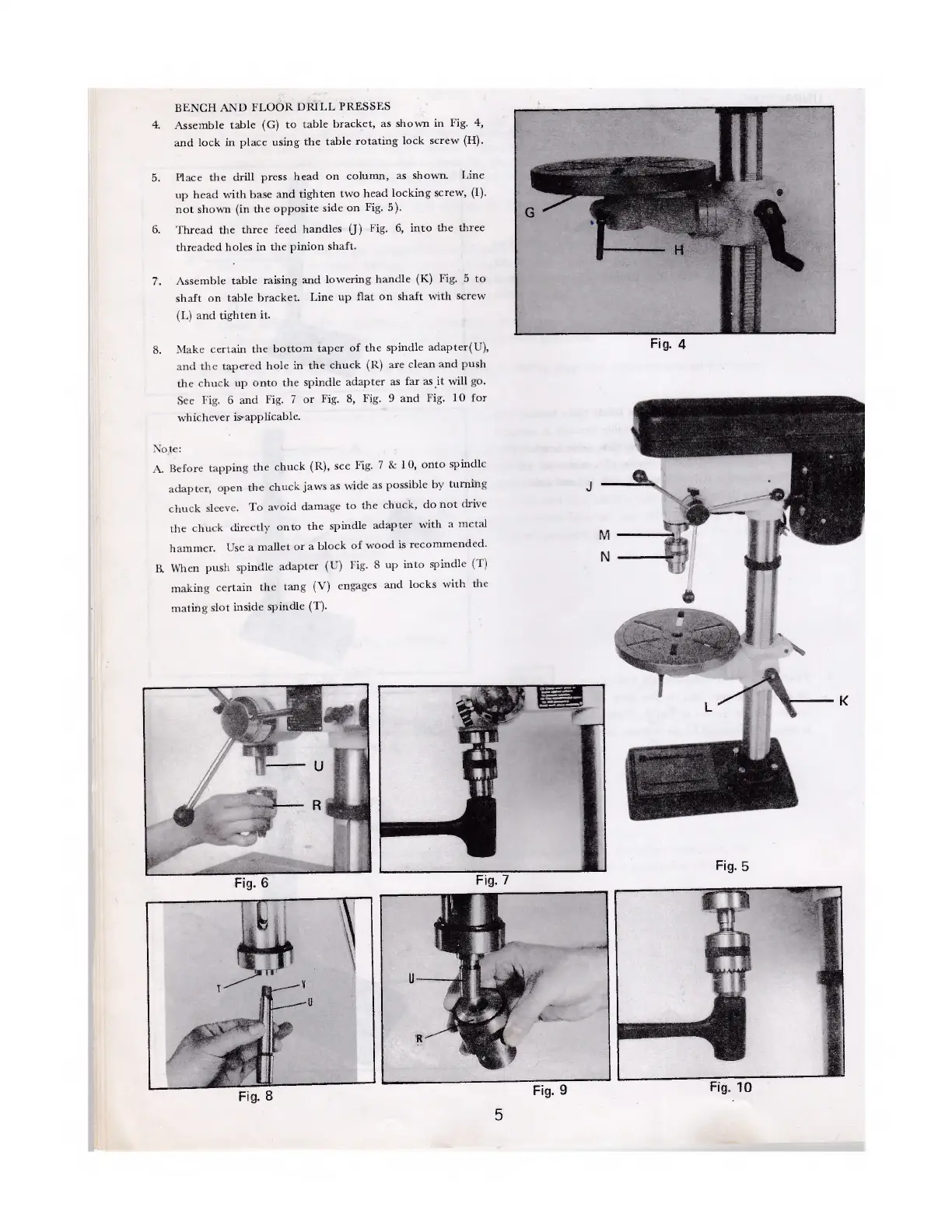

4. Assemble table (G) to table bracket, as shown in Fig. 4,
and lock in place using the table rotating lock screw (H).
5. Place the drill press head on column, as shown. Line
up head with base and tighten two head locking screw, (I).
not shown (in the opposite side on Fig. 5).
6. Thread the three feed handles (J) Fig. 6, into the three
threaded holes in the pinion shaft.
7. Assemble table raising and lowering handle (K) Fig. 5 to
shaft on table bracket Line up flat on shaft with screw
(L) and tighten it.
8. Make certain the bottom taper of the spindle adapter(U),
and the tapered hole in the chuck (R) are clean and push
the chuck up onto the spindle adapter as far as it will go.
See Fig. 6 and Fig. 7 or Fig. 8, Fig. 9 and Fig. 10 for
whichever inapplicable.
Note:
A. Before tapping the chuck (R), see Fig. 7 & 10, onto spmdle
adapter, open the chuck jaws as wide as possible by turning
chuck sleeve. To avoid damage to the chuck, do not drive
the chuck directly onto the spindle adapter with a metal
hammer. Use a mallet or a block of wood is recommended.
B. When push spindle adapter (U) Fig. 8 up into spindle (T)
making certain the tang (V) engages and locks with the
mating slot inside spindle (T).
Fig. 6
Fig. 8
Fig. 7
5
Fig. 9
