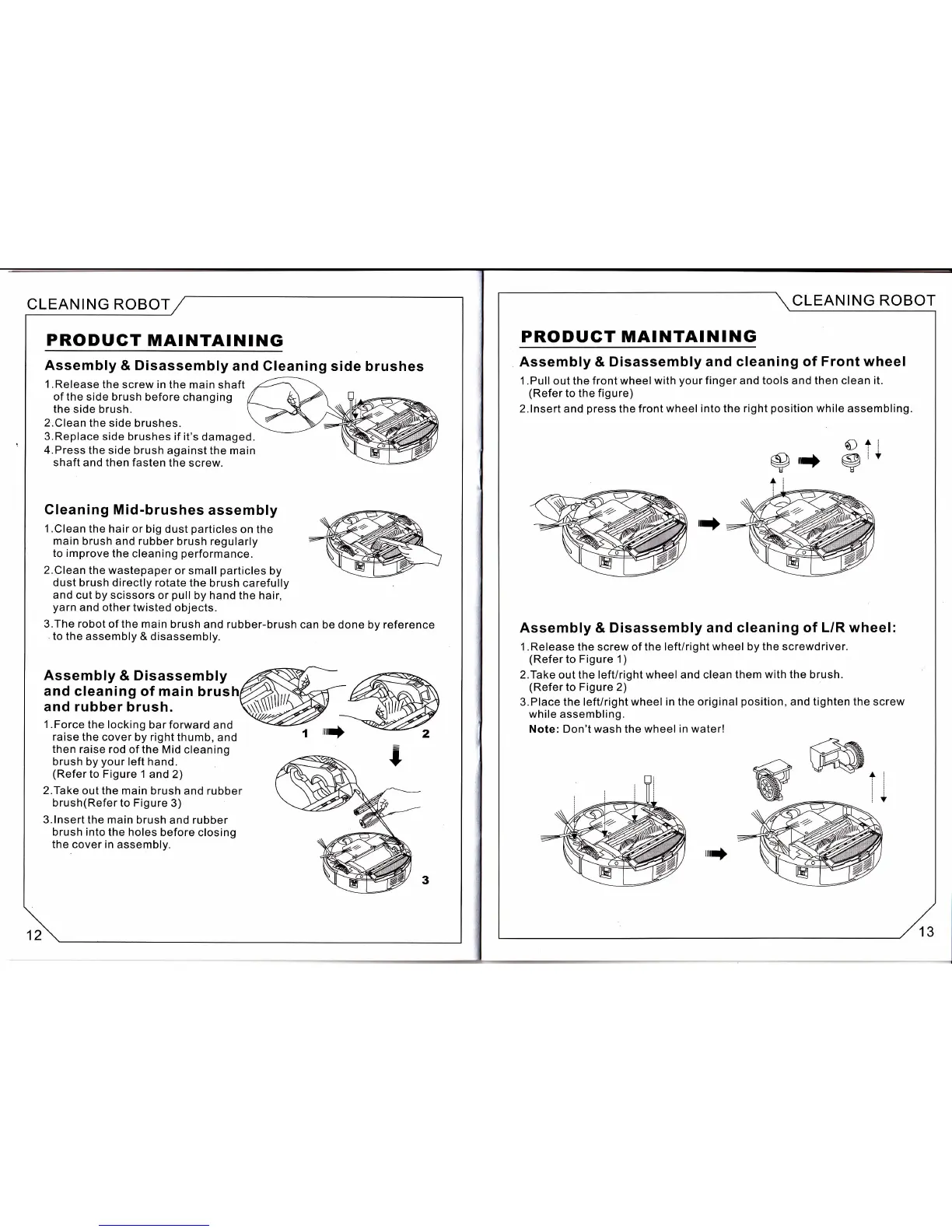

CLEANING ROBOT
CLEAN!NG ROBOT
PRODUGT
MAINTAINING
Assembly
& Disassembly
and
Cleaning side
brushes
l.Release
the screw in
the main
shaft
of the
side brush before changing
the
side brush.
2.Clean the side brushes.
3.Replace
side brushes if it's
damaged.
4.Press
the side brush
against the main
shaft and then fasten
the screw.
Clean ing Mid-brushes
assembly
l.Clean the hair
or big dust
particles
on the
main
brush and rubber
brush regularly
to improve
the cleaning
performance.
2.Clean
the wastepaper
or small
particles
by
dust
brush directly rotate the
brush carefully
and cut by scissors
or
pull
by hand the hair,
yarn
and other twisted
objects.
3.The robot
of the main brush
and rubber-brush
can be done by reference
.
to the
assembly & disassembly.
Assembly
&
Disassembly
and cleaning
of main
brus
and rubber brush.
l.Force
the locking
bar forward
and
raise the
cover by right thumb,
and
then raise rod of the Mid
cleaning
brush by
your
left hand.
(Refer
to Figure 1
and 2)
2.Take
out the main
brush and rubber
brush(Refer
to Figure
3)
3.lnsert the main
brush and rubber
brush into
the holes before
closing
the
cover
in
assembly.
PRODUCT MAINTAINING
Assembly & Disassembly
and cleaning of
Front wheel
1 .Pull out the front wheel with
your
finger and tools and then clean it.
(Refer
to the
figure)
2.lnsert
and
press
the front wheel
into the right
position
while assembling.
I'"f
O
@
--E-
+i
lv
Assembly
&
Disassembly and
cleaning of L/R wheel:
1 .Release
the screw of
the left/right
wheel
by
the
screwdriver.
(Refer
to Figure 1)
2.Take out the left/right
wheel and clean them
with the
brush.
(Refer
to Figure 2)
3.Place the left/right wheel in
the original
position,
and tighten the screw
while assembling.
Note: Don't wash
the
wheel in water!
