Product Information
1
XB-DMX512 DMX512 Interface
Product Information
The AXB-DMX512 DMX512 Interface creates a bi-directional DMX512 AXlink connection,
transmitting and receiving up to 512 DMX channels for lighting dimmers, spotlights, and other DMX
control applications.
Onboard processing and memory can create and store channel groups, faders, patches, and up to 72
presets. A DMX lighting board can operate in tandem with the AXB-DMX512, generate levels for
storing presets, or pass through the AXB-DMX512 for direct control of channels.
Specifications

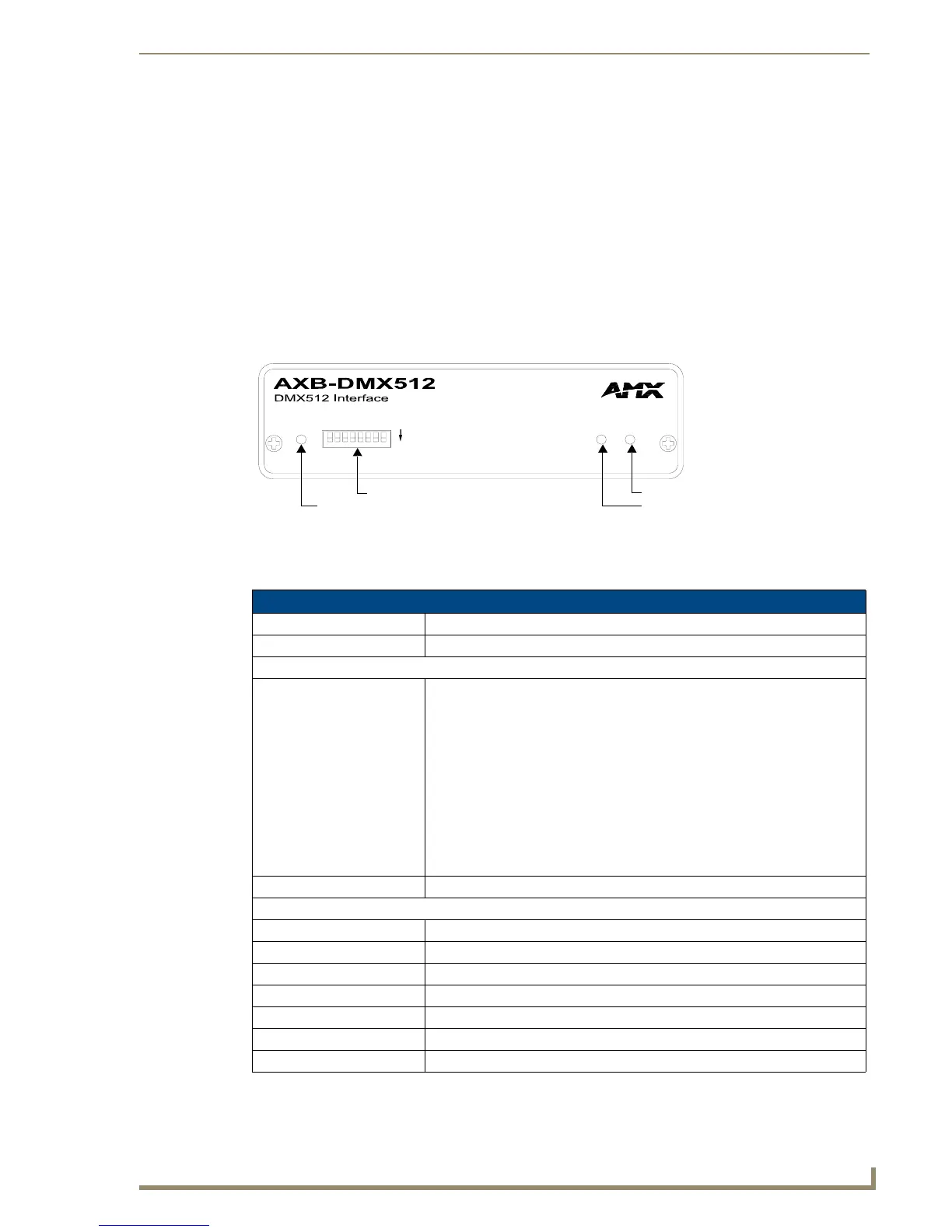

FIG. 1 AXB-DMX512 (front view)
AXB-DMX512 Specifications
Power consumption 160 mA @ 12 VDC
Power supply 12 VDC (part number SA002)
Front panel components:
LED Indicators • AXlink LED (green and blinks to indicate AXlink communication activity and
power:
Full-Off indicates no power is being received or the controller is not
functioning properly.
One blink per second indicates power is active and AXlink communication is
functioning.
Full-On indicates there is no AXlink control or activity, but power is On.
• RX LED (red) indicates the AXB-DMX512 is receiving DMX512 data.
Corresponds to the IN and OUT ports on the rear panel.
• TX LED (red) indicates the AXB-DMX512 is transmitting DMX512 data.
Corresponds to the IN and OUT ports on the rear panel.
DIP switches • 8-position DEVICE DIP switch sets the AXlink address for the DMX512.
Rear panel components:
DMXIN port 5-wire, captive-wire connector for receiving data.
DMXOUT port 5-wire, captive-wire connector for transmitting data.
AXlink 4-wire, captive-wire connector for data and power.
Dimensions (HWD) 1.5" x 5.5" x 5.5" (38 mm x 140 mm x 140 mm)
Enclosure Metal with black matte finish
Mounting Rack mounting with the optional AC-RK Accessory Rack Kit
Weight 1.1 lb (0.5 kg)
AXlink
DEVICE
ON
RXTX
Device ID DIP Switch
Axlink activity LED
DMX512 (Transmit) LED
DMX512 (Receive) LED
