amzchef YL-CD3201 - Detailed Installation Dimensions; Locating Fixing Brackets

22
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
268＋4
-0
500＋4
-0
50mini
50 mini
50 mini
50 mini
48
52

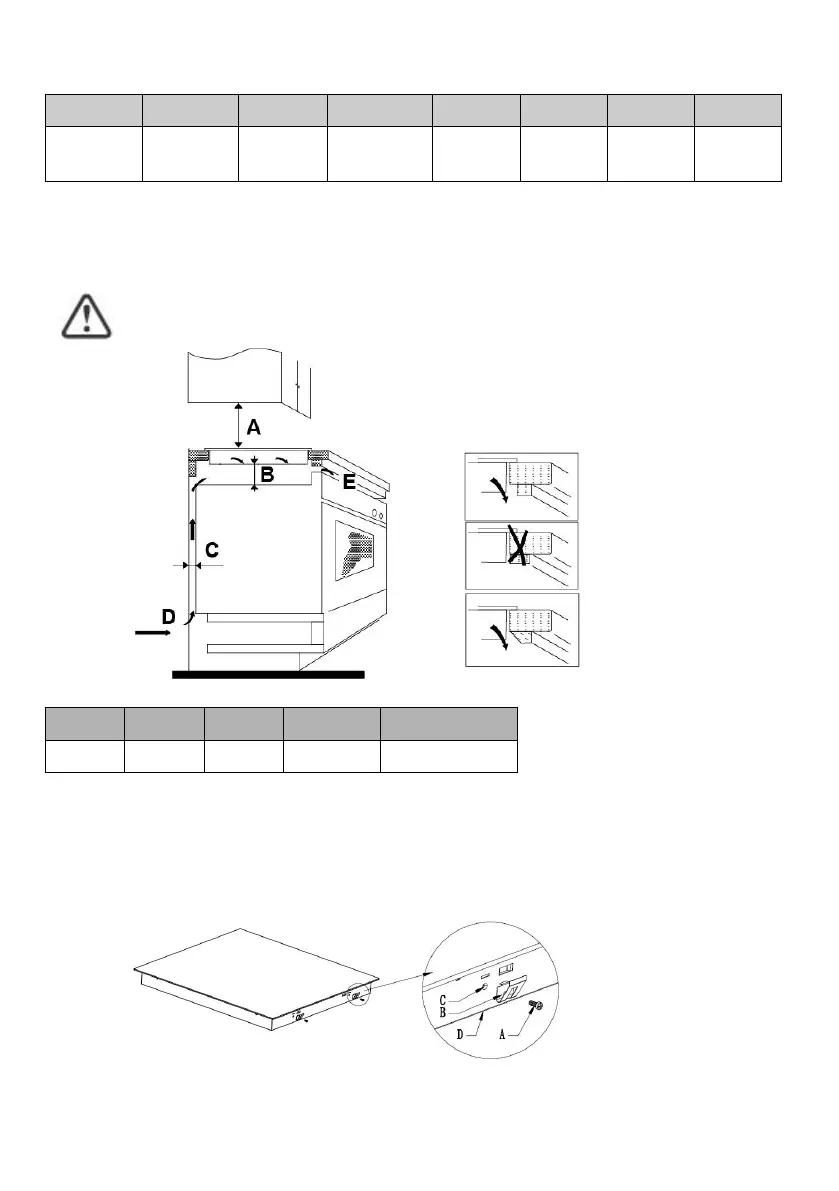

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air
inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As
shown below
Note: The safety distance between the hotplate and the cupboard above the
hotplate should be at least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
30 mini
Air intake
Air exit 10 mm
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply
force onto the controls protruding from the hob.
Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture)
after installation.
