amzchef YL-CF6601HS - Fixing and Mounting; Locating Fixing Brackets; Mounting the Hob

22
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
30 mini
Air intake
Air exit 10 mm
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply
force onto the controls protruding from the hob.

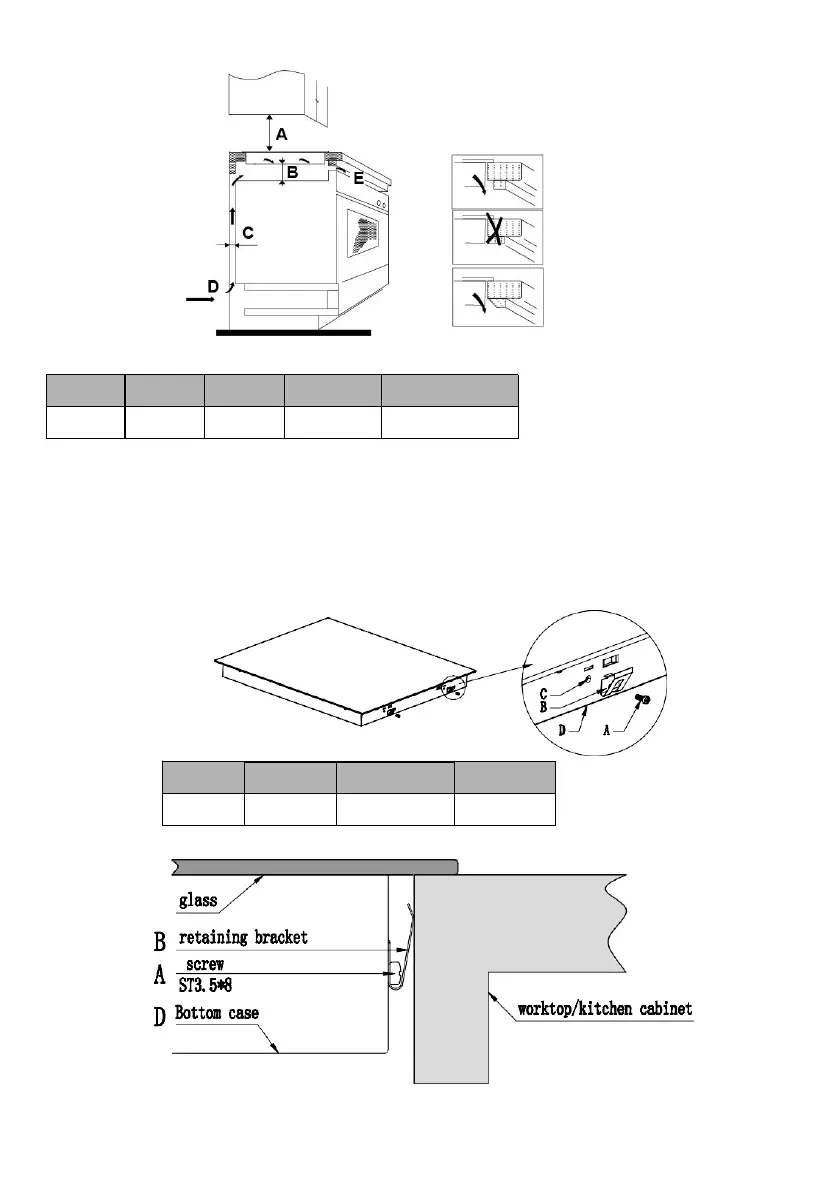

Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture)
after installation.
A
B
C
D
screw
bracket
Screw
base
