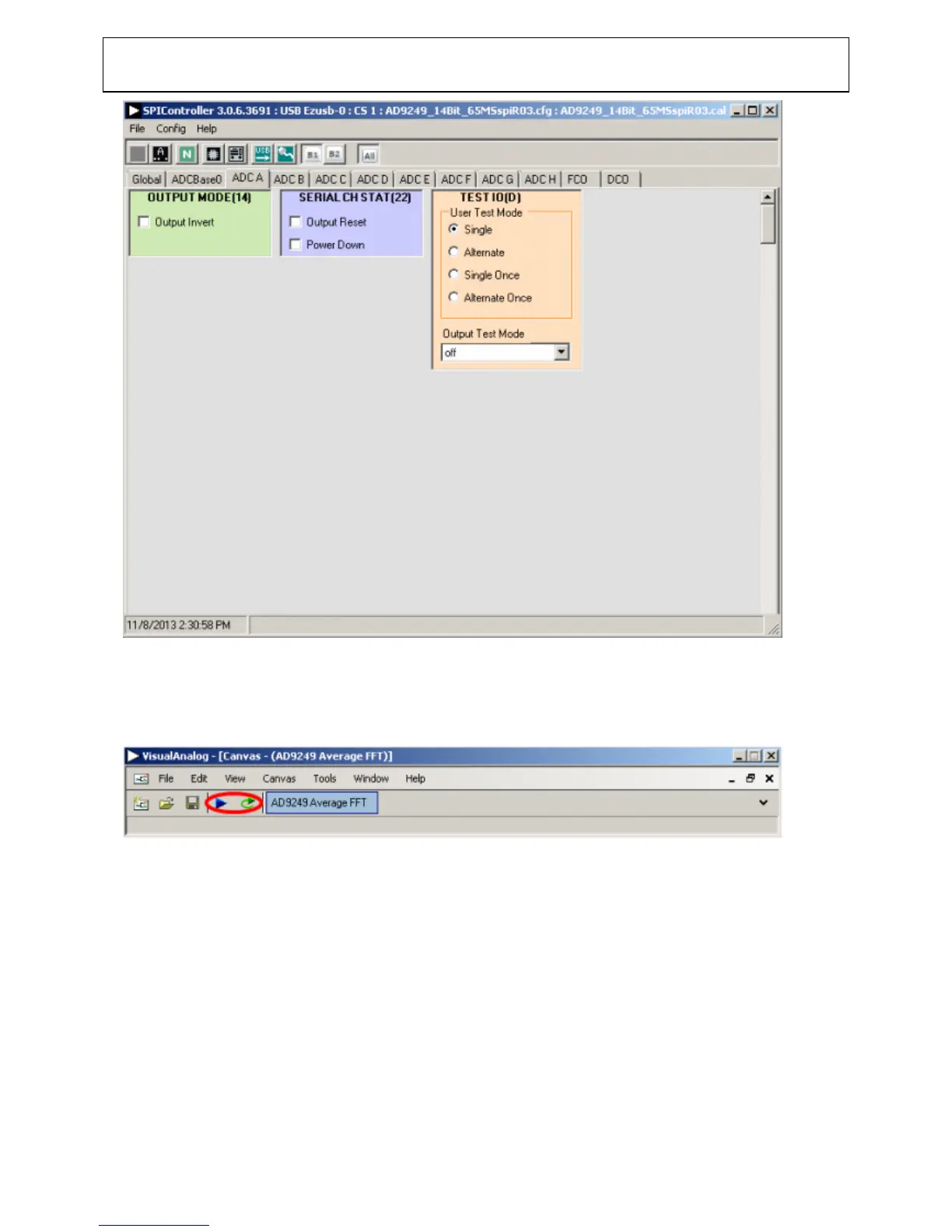

Figure
11. SPI Controller, Example ADC A Page
Invoke a Digital Reset as shown in Figure 10 before testing. After selecting Reset, select Chip run5.
to return to normal operation.
To begin testing, click the Run or Continuous Run button in the VisualAnalog toolbar (see6.
Figure 12).
Figure
12. Run/Continuous Run Buttons (Encircled in Red) in VisualAnalog Toolbar, Collapsed Display
Adjusting the Amplitude of the Input Signal
The next step is to adjust the amplitude of the input signal for each channel as follows:
Adjust the amplitude of the input signal so that the fundamental is at the desired level. Examine1.
the Fund Power reading in the left panel of the VisualAnalog Graph - AD9249 FFT window
(see Figure 13).
