VIO 4K TPP PROGRAMMER'S GUIDE FOR v02.00.7X
3.8 Using patterns
3.8.1 Usage
To check position and colorimetry of outputs, the
VIO 4K has multiples patterns. They can be applied on
output format or in the area of interest. They are
configurable, and most have a motion option.
3.8.2 Detailed commands sequence
For commands below, <output> is the destination
output index (6 outputs addressed from 0 to 5).
Enable pattern:
Syntax : <output>,0OUpin
L
F
Enable by writing the value 0 and disable by writing the value 1.
Show raster box:
◦ On format: This command enables the view of edge of the output format by writing the value 1,
and disables with the value 0.
Syntax : <output>,1OUpct
L
F
OR/AND
◦ On AIO: This command enables the view of edge of the area of interest by writing the value 1 and
disables with the value 0.
Syntax : <output>,1OUact
L
F
Select pattern fit area: This command defines if the pattern is shown on all format area by writing the
value 0 or on defined area of interest by writing the value 1.
Syntax : <output>,<value>OUfai
L
F
<value> is the selected area (0 selects Format, 1 selects AOI).
Select the pattern:
Syntax : <output>,<value>OUpat
L
F
<value> is the pattern index (16 patterns addressed 0 for none and from 1 up to 15 for pattern keys).
Options configuration:
For all pattern, the colorimetry settings can be disabled and the pattern can move expected COLOR
and CHECKERBOARD patterns.
o Disable colorimetry settings :
Syntax : <output>,<value>OUpdc
L
F
It is disable by writing <value> 1 and enable with 0.
o Moving option :
Syntax : <output>,<value>OUmov
L
F
It is enable by writing <value> 1 and disable with 0.

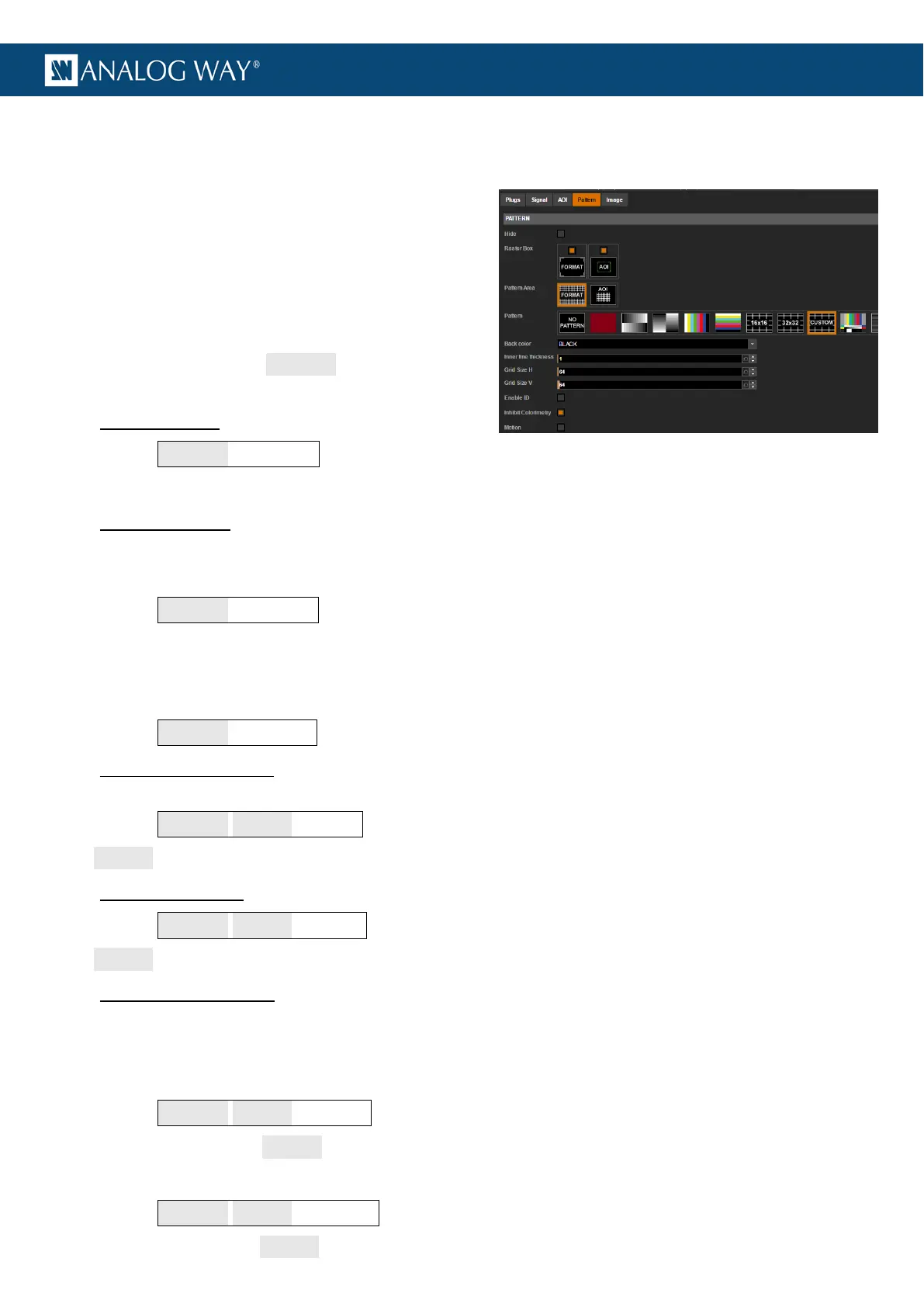

Picture 20: Show a pattern in an output - Web RCS
