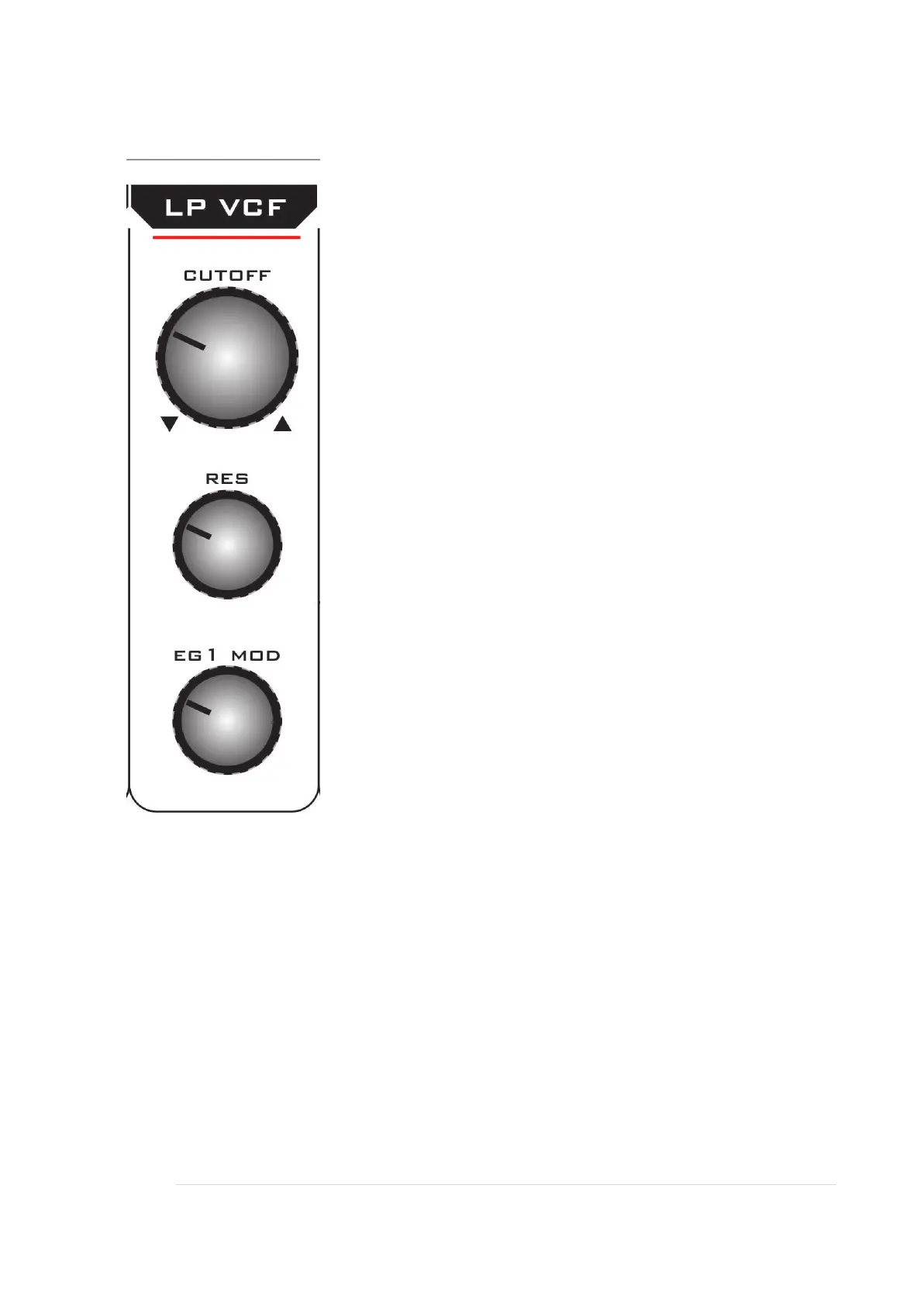

VOLTAGE CONTROLLED FILTER
This synth features a 24db/Octave low pass filter (VCF).
Note, to hear anything through the filter you will have to patch a
signal into the filter input using the pin matrix.
Note, the output of the filter is hard wired to the amplifier input.
CUT OFF
Changes the cut-off frequency.
RESONANCE
Changes the ‘Q’ / filter response.
EG1 MOD
Changes the level of envelope one modulation.
