ANCILLARY
The three VCOs have their own Level controls in the VCO
sections of the front panel.
Three additional sound sources are located in the Ancillary
section of the front panel.
To hear any of these six audio sources, they must be
patched to the filter input using the matrix panel.

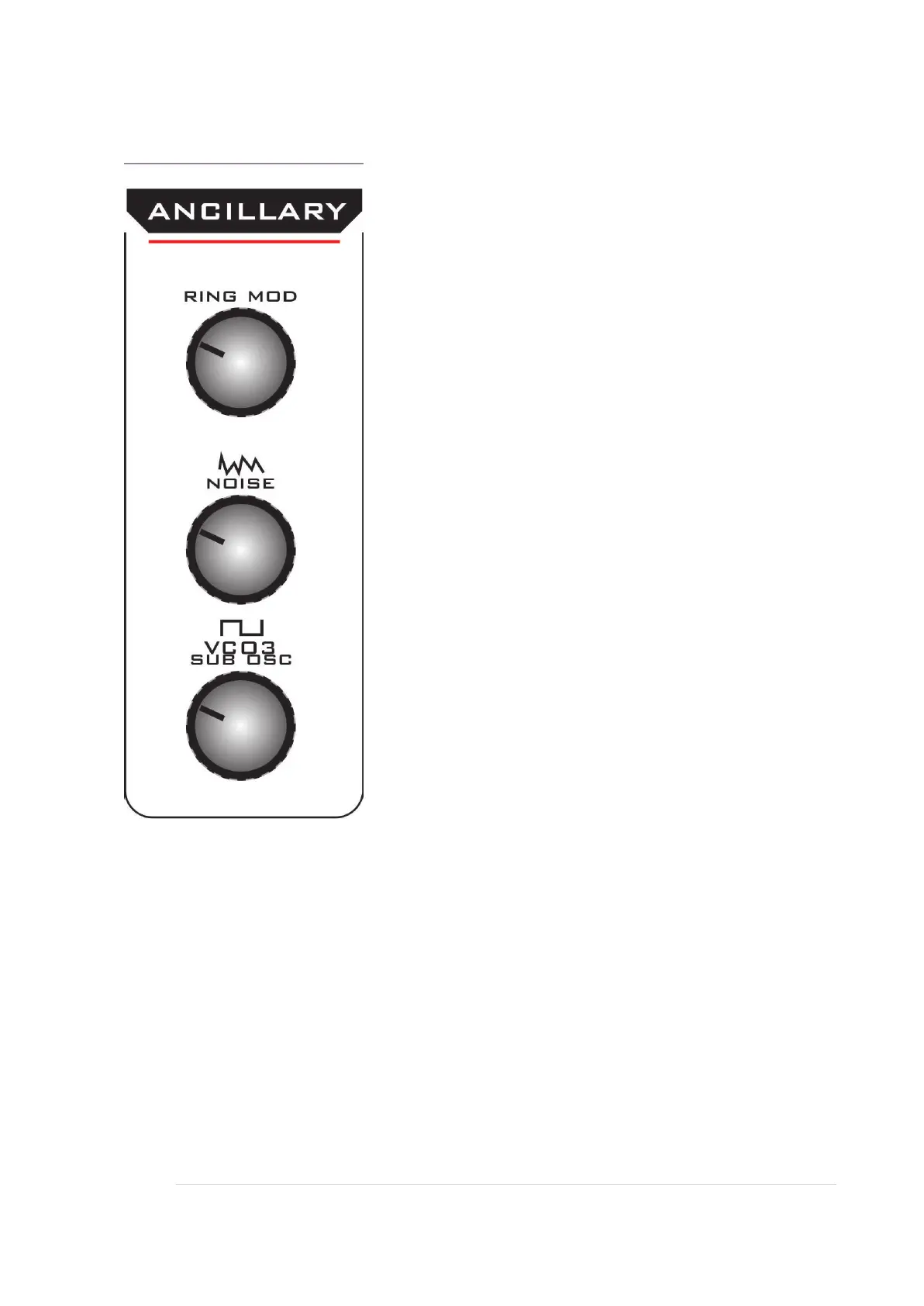

VCO3 SUB OSC
This is an audio level control for VCO3 sub osc output. This
is a square wave signal one octave below the pitch of the
other waveforms. Use this to ‘beef’ up bass sounds.
NOISE
This is an audio level control for White Noise Generator
level
RING MOD
This is an audio level control for Ring Mod.
There are two inputs to the Ring Mod:
Input X is hard wired from VCO3 audio out.
Input Y is freely patchable using the pin matrix.
