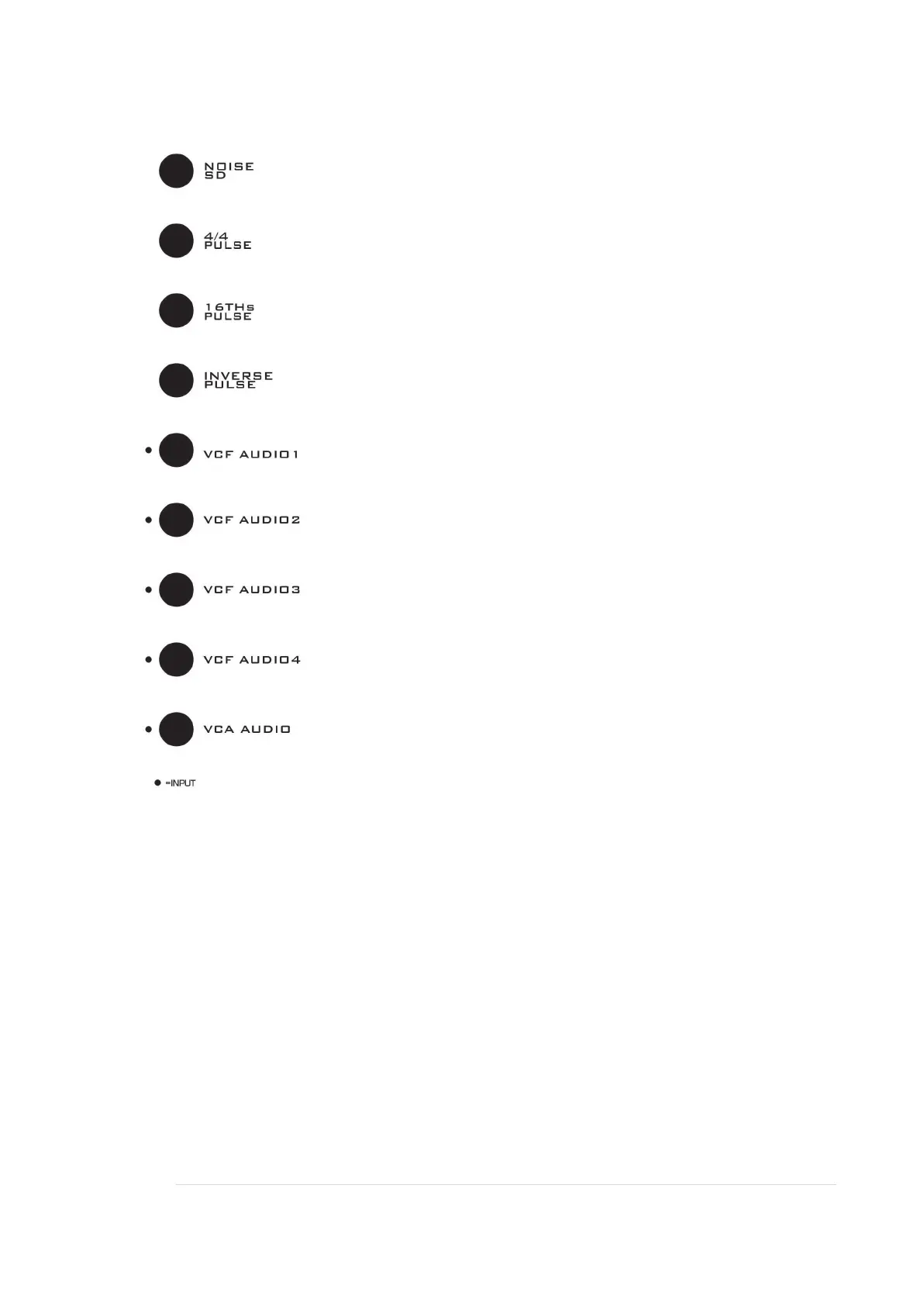

Right Column of Jacks
These are mostly clock outputs and signal inputs to the filter and
amplifier.
NOISE SD
The synth has a simple snare drum - it is raw gated noise. The
snare pattern is selected in the sequencer section.
The SD can be manually patched back into the synth for
processing through the filter, or you could take it to an external
synth.
This Snare allows the synth to have even more rhythmic qualities.
Clock Pulses:
The three sockets below are all clock pulses. These can be used to
clock or trigger external analogue synths.
They can also be used as simple percussion sounds. Try patching
them to the VCF or VCA audio input jacks.
4/4 PULSE
A trigger pulse is sent on each down beat.
16ths
A trigger pulse is sent on every step.
Inverse Pulse
A strange but fun pulse rhythm that is the inverse of what is selected
using the Beat knobs.
Audio inputs:
VCF AUDIO 1 / 2 / 3 / 4
There are four audio inputs to the filter. Each one has a different input level. The
higher ones up will have a higher input level.
VCA AUDIO
This is an audio input the the amplifier - post filter.
