3.1 Aspida main features

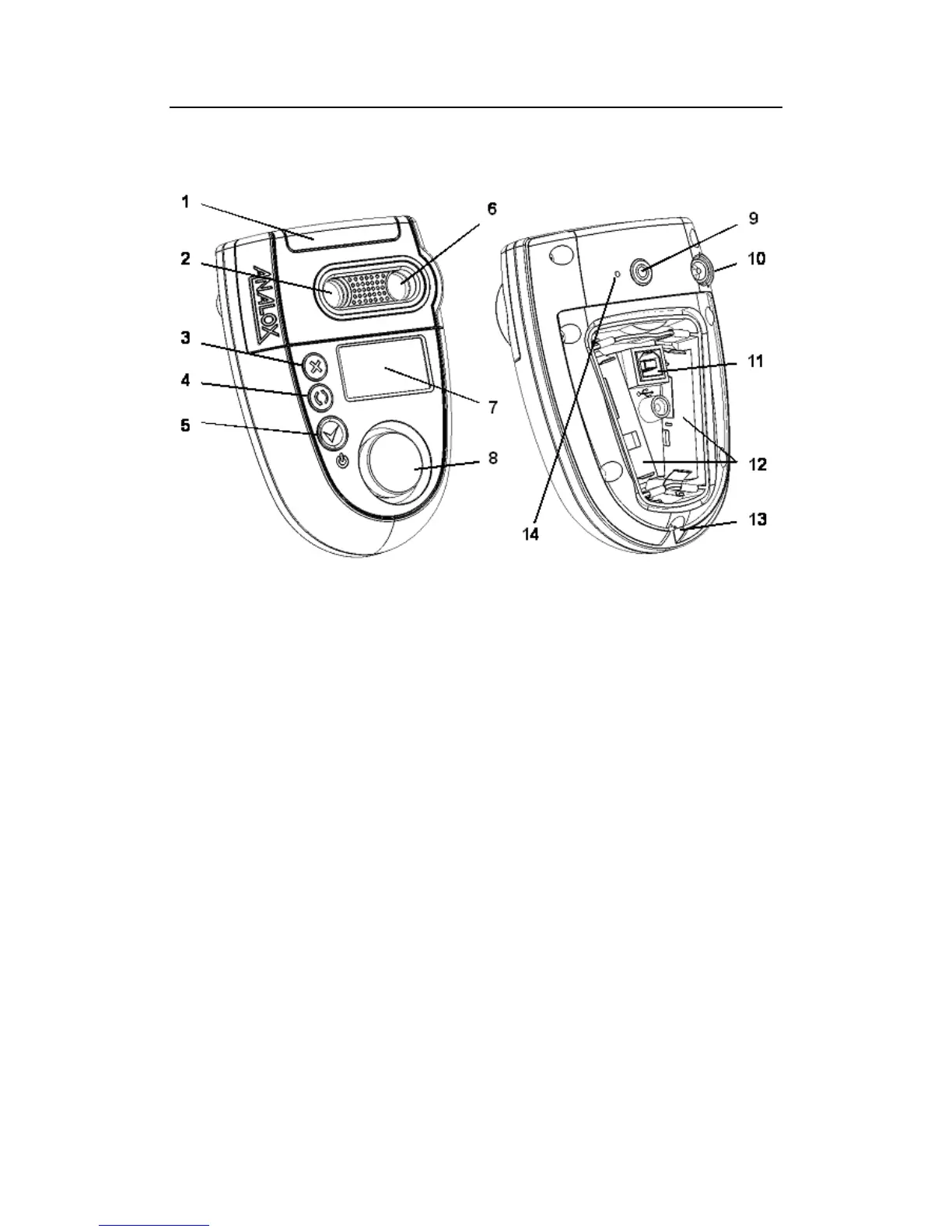

Figure 1 - Main features
1) Alarm, fault and OK indicators
2) Carbon dioxide gas port
3) Cancel/exit/panic-alarm button
4) Cycle button
5) Confirm/on/off button
6) Oxygen gas port (if sensor fitted)
7) OLED display
8) Horn
9) Belt loop mount point
10) Charger socket
11) USB communication socket
12) Battery compartments
13) Lanyard pin
14) Breather (pressure equalisation) hole – do not cover
