This document is a product instruction manual for an Ancheer E-Bike, specifically model AMA005685. It provides comprehensive information on safety, general specifications, installation, operation, battery and charging, maintenance, warranty, and warnings.

Function Description

The Ancheer E-Bike is an electric bicycle designed for transportation and outdoor activities. It offers pedal-assist modes and an electric throttle mode (if installed and permitted by local regulations). The bike is intended for safe, recreational riding and is suitable for physically fit adults aged 16 years and older. It is not designed for off-road use or extreme bicycle sports. The electric assist system helps riders with varying levels of power, making cycling easier and more enjoyable.

Important Technical Specifications

The Ancheer E-Bike, model AMA005685, has the following key specifications:

Vehicle Size: 1800*640*1200MM
Wheel Size: 26*1.95 Inches
Frame Material: Aluminium Alloy
Maximum Load: 120KG
Vehicle Weight: 28KG
Maximum Speed: 20mph (32km/h)
Recommended Gradient: < 10 degrees
Rear Derailleur: 6-Speed
Mileage Range: 30-50 miles (35-80km)
Working Temperature: 23°F-104°F (-5°C~40°C)
Rated Voltage: 36V
Battery Capacity: 12.5Ah
Battery Service Life: 500 Times
Charging Time: 7 hours
Motor Power: 250W
Motor Type: Brushless Gear Motor
Maximum Torque: 34N.M
Charger Input Voltage: 100-240V
Charger Input Current: 1.8A
Charger Output Voltage: DC42V
Charger Output Current: 2A
Display: LED Display
Brake: Disc Brake
Suspension: Suspension Front Fork
Light: Front light and rear Light
Input (Charger): DC42V, 2A max
Power (Motor): 250W

Usage Features

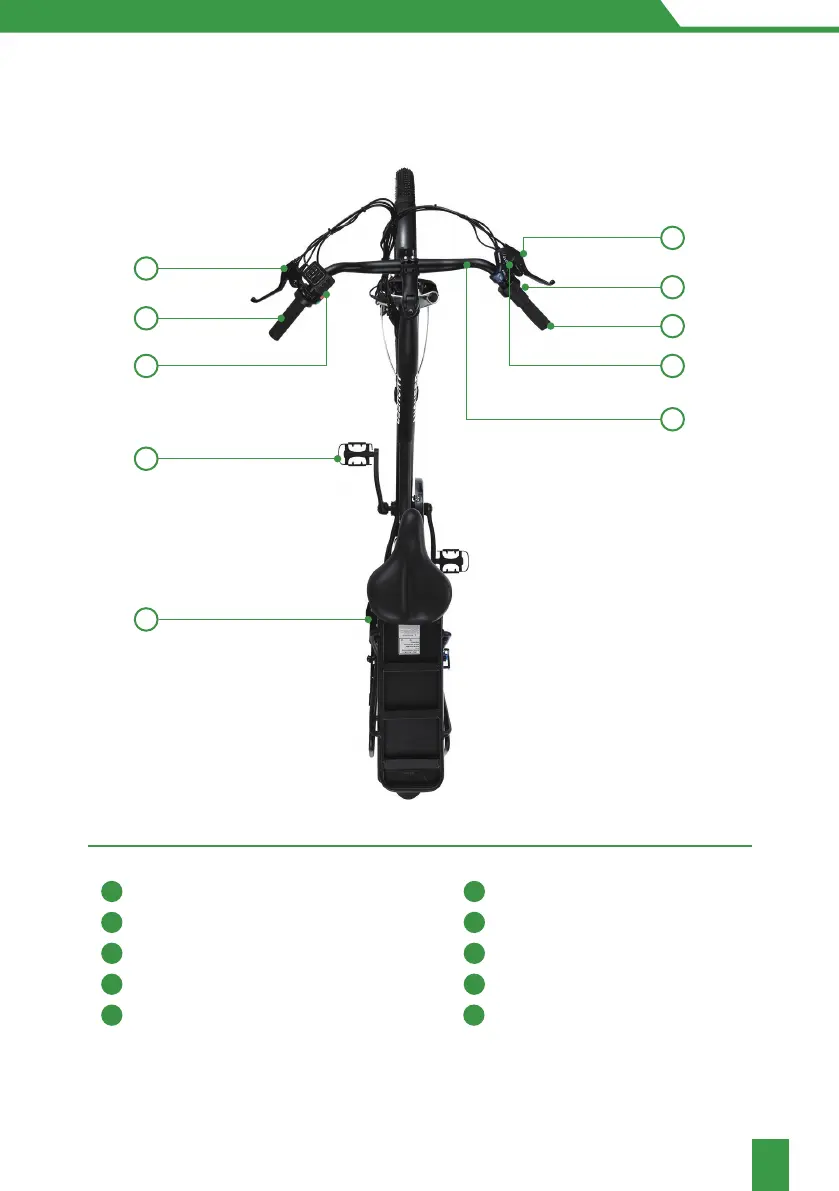

The E-Bike offers several features for user convenience and safety:

Pedal Assist Levels: The bike has three pedal assist levels: "low," "mid," and "high." "Low" is the lowest assist, "mid" is the second, and "high" provides maximum power.
Electric Throttle Mode: By continuously pressing the "-" key on the meter until all three indicator lights are off, the bike enters electric throttle mode, allowing for propulsion without pedaling. The inclusion and installation of the throttle depend on local laws and regulations.
Battery Indicator: The meter includes a battery indicator to show the remaining charge.
Brake System: Equipped with front and rear disc brakes, which should be checked for normal function before each ride. Brake sensitivity can be adjusted by loosening or tightening the brake cable anchor bolt.
Shifting Recommendations: For starting and low-speed riding, a low-speed gear is recommended, while higher gears are suggested for higher speeds to increase range.
Kickstand: The bike includes a kickstand for parking, which should always be securely locked in the up position before riding.
Rear Rack: A rear rack is provided for carrying objects, with a maximum load capacity of 120KG for the entire bike.
Headlight/Front Light and Rear Light: Integrated lighting system for visibility.
Standover Height: For safety and comfort, there should be a clearance of 46cm/18in from the ground to the rider's crotch, and at least 3-8cm/1-3in between the crotch and the top tube of the bike (for non-step-through frames).

Maintenance Features

Regular maintenance is crucial for the E-Bike's longevity and safe operation:

Pre-Ride Checks: Before each ride, check the front and rear brakes, handlebar and wheel fastenings, reflector condition, tire pressure (recommended 35-45PSI), power circuit, and lighting circuit.
Battery Care:
- Charge at 0°C~40°C (32°F~104°F) and discharge at -5°C~40°C (23°F~104°F).
- Avoid storing the battery above 35°C (95°F) or below -5°C (23°F).
- Keep the battery dry and away from acidic/alkaline liquids, rain, fire, and high temperatures.
- Do not reverse positive and negative poles, damage, disassemble, or short-circuit the battery.
- Used batteries are hazardous and should be recycled by professionals.
- Use the original charger and avoid overcharging.
- When not in use for a long time, store in a cool, dry place and charge for two hours monthly.
- It is recommended to charge and store the battery in a fireproof battery charging cover.
Cleaning: Avoid water showering; wipe the car body with a semi-dry cloth.
Cable Inspection: Check all cables and cable housings for fraying, breaks, rust, or corrosion and replace if necessary.
Motor and Brake Maintenance: Frequently check the motor and brake, avoid filling the brake area with oil, and inspect brake pads for wear.
Fastener Checks: Regularly check and reinforce all screws and fastenings, including horizontal screw (60-80 kgf.cm), stem screw (175-200 kgf.cm), seat cushion screw (175-250 kgf.cm), and wheel screw (320-450 kgf.cm).
Chain Tension: Regularly check and adjust the chain tension using the chain regulator.
Tire Inspection: Check tires for scratches, cracks, or excessive wear. Ensure the inner tube and valve are perpendicular to the wheel hub. Replace punctured, damaged, or excessively worn tires immediately.
Structural Integrity: Do not modify key structural parts like the frame, front fork, standpipe, and electrical components. Use original parts for replacement to maintain warranty and safety.
