6) REAR HOPPER MOTOR ERROR [E.62]
▶SOLUTION : REAR HOPPER MOTOR ERROR [E.62]
1 HOW TO TEST TEST MODE → REAR HOPPER TEST→ SELECT button→SHOOTING button

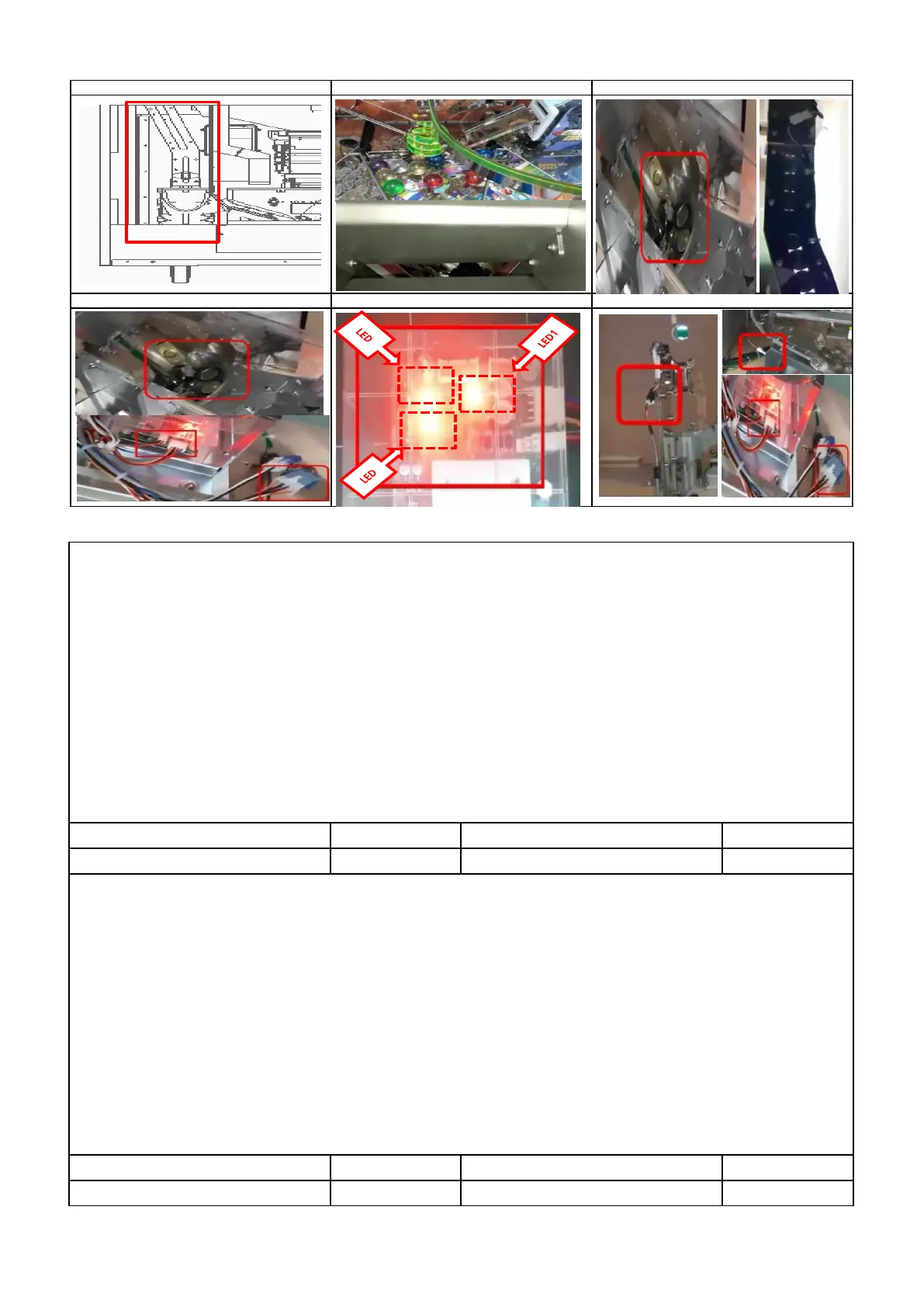

2 Check the jamming location Token Bridge, Pusher Plate and Conveyor ( P1 )
3 Foreign objects inside the HOPPER,Check jamming hopper disk,Check jamming hopper rail ( P 2 )
4 Check the disk rotation direction, Check connection of motor connector ( P )
5 Check the operation of HOPPER PCB internal LED1 (lights up during operation),
LED2 (flashes when 5V input), LED3 (flashes when 24V is input) (P4 )
5 Check the dc voltage ( HOPPER PCB / JP2 ) : PIN 1 : Over 23V , PIN 2 : GND
6 Replace HOPPER PCB
7
Check the dc voltage ( MAIN PCB / CN10 )
: B-PIN 1 : Over 23V , B-PIN 6 : Over 4.5V , B-PIN 10 : GND
8 Replace MAIN PCB
▶SOLUTION
: REAR HOPPER SENSOR ERROR [E.62]
1 HOW TO TEST TEST MODE → REAR HOPPER TEST→ SELECT button→SHOOTING button
PLAY FND 3rd digit confirms quantity change ( reduced sequentially when sensor is detected )
2 Check the jamming location Token Bridge, Pusher Plate and Conveyor ( P1 )
3
Check the jamming launch part exit ( P 2 )
Check the jamming hopper rail ( P 2 )
4 Check connection of sensor connector ( P5 )
5 Check the foreign substances in the sensor part and the assembly status of the launch part (P4 )
6
Check the dc voltage ( SENSOR ASS'Y )
: PIN 1 : over 4.5V , PIN 3 : below 0.5V , PIN 4 : GND ,
PIN 2 : Detected Sensor over 4.5V / Non-detected sensor below 0.5V
7 Replace SENSOR PCB
8 Replace MAIN PCB
ELEVATOR HOPPER PCB ASS'Y
