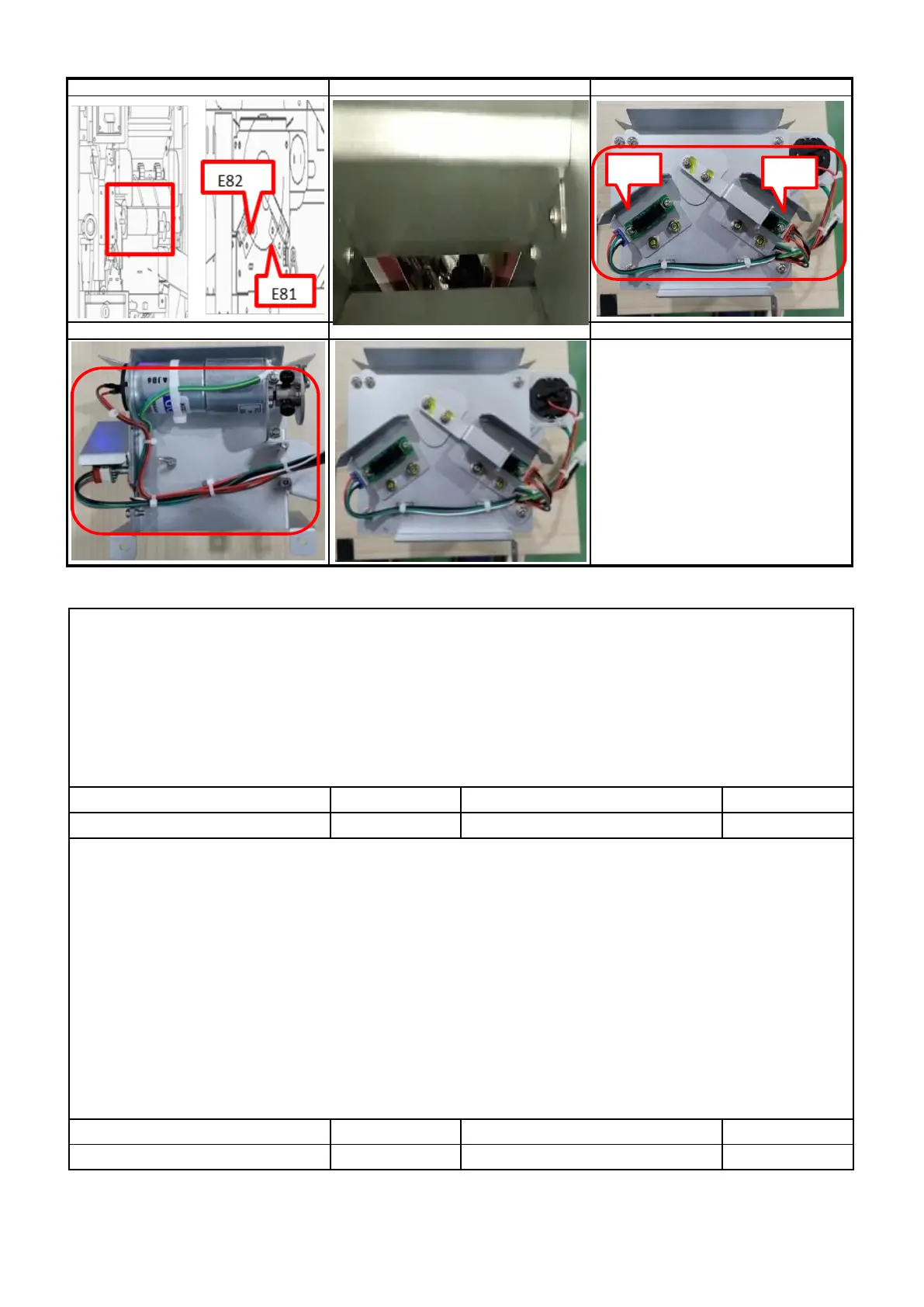

10) TOKEN BRIDGE MOTOR ERROR [E.81 & 82]
▶SOLUTION
: TOKEN BRIDGE MOTOR ERROR [E.81 & 82]
1 HOW TO TEST TEST MODE → TOKEN BRIDGE TEST→ SELECT button → SHOOTING button
2 Check internal JAM by foreign material, card, token ( P1 )
3 Check MOTOR connector connection status ( P2 )
4 Check assembly status ( P3 )
5 voltage check ( MAIN PCB / CN16 ) : PIN 1 : 11V , PIN 2 : GND
6 MOTOR replacement 7 MAIN PCB replacement
▶SOLUTION : TOKEN BRIDGE FRONT SENSOR ERROR [E.81]
1 HOW TO TEST :
TEST MODE → TOKEN BRIDGE TEST
sensor status check-Detected Sensor : " _ " / Non-Detected sensor : " 0 "
2 Check internal JAM by foreign material, card, token ( P1 )
3 SENSOR PCB wiring connection and connector connection status check ( P2 )
4
Check the sensor assembly status ( P4 )
voltage check ( SENSOR PCB )
: PIN 1 : 4.5V, PIN 2 : 0.5V, PIN 4 : GND ,
PIN 3 : 4.5V or more when detected / Less than 0.5V when not detected
5 SENSOR PCB replacement 6 voltage check ( MAIN PCB / CN15 )
: PIN 3: 4.5V or higher, PIN 4: less than 0.5V, PIN 7: GND
7 MAIN PCB replacement
