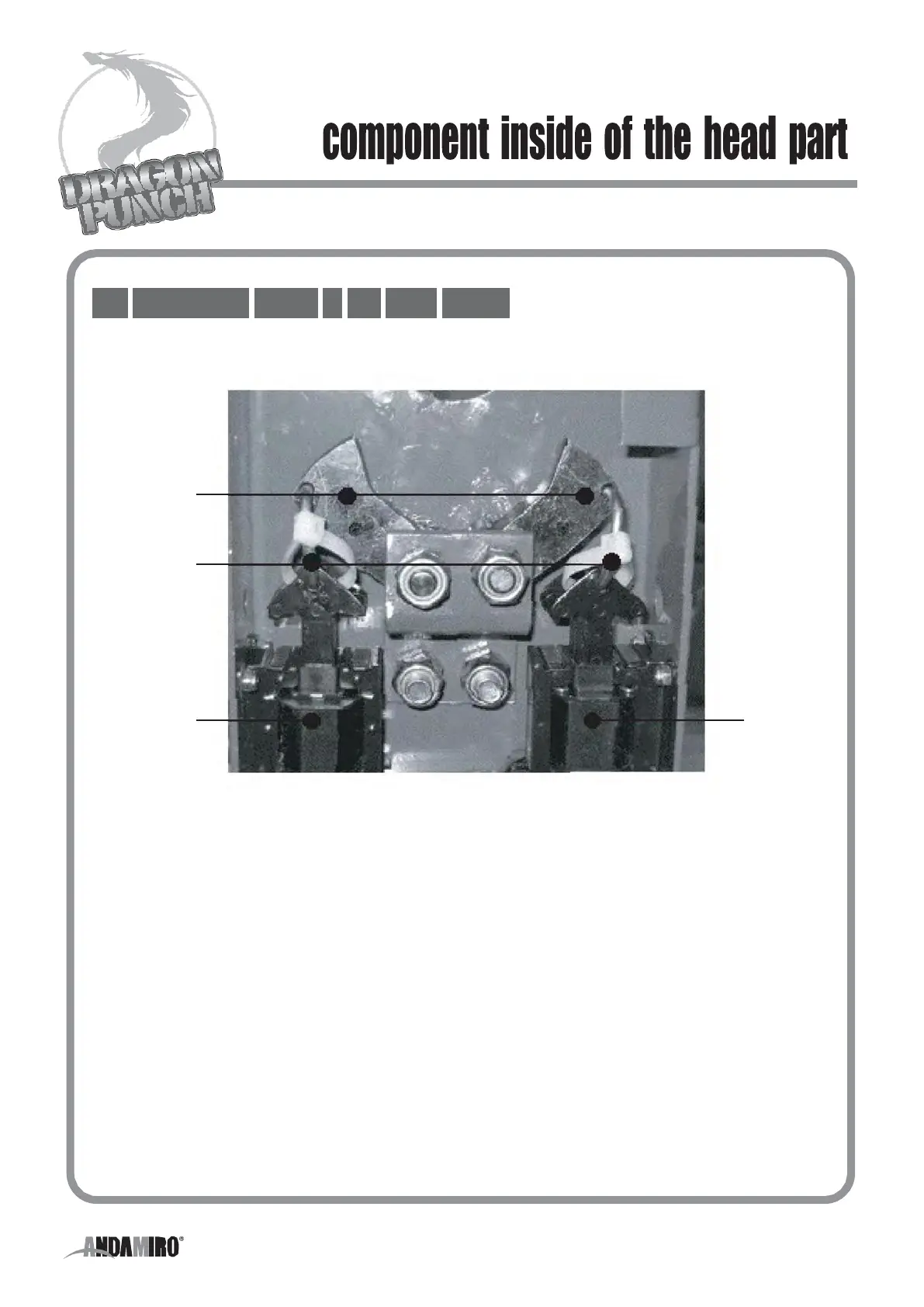

A component inside of the head part
letter shape
manufactured part
letter shape
manufactured part
No 1 solenoid No 1 solenoid
No 1 solenoid function
It pulls over a punching ball, after inseerting a coin to start a game.
More details : a ቯ-shaped part and No 1 solenoid are connected to a -shaped
part and when No 1 solenoid is pulled over, the punching ball can be pulled on,
separate from a shaft. In -shaped part breakdown connected to No 1 solenoid,
the punching ball cant't be pulled.
No 2 solenoid function
After the pinching ball is hit, FND scores up and No 2 solenoid works to make
the punching ball go up. More details : a ቯ-shaped part and No 1 solenoid are
connected to a -shaped part and when No 2 solenoid is pulled over, the
punching ball can go up, separate from a shaft. In -shaped part breakdown
connected to No 2 solenoid, the punching ball can't go up.
