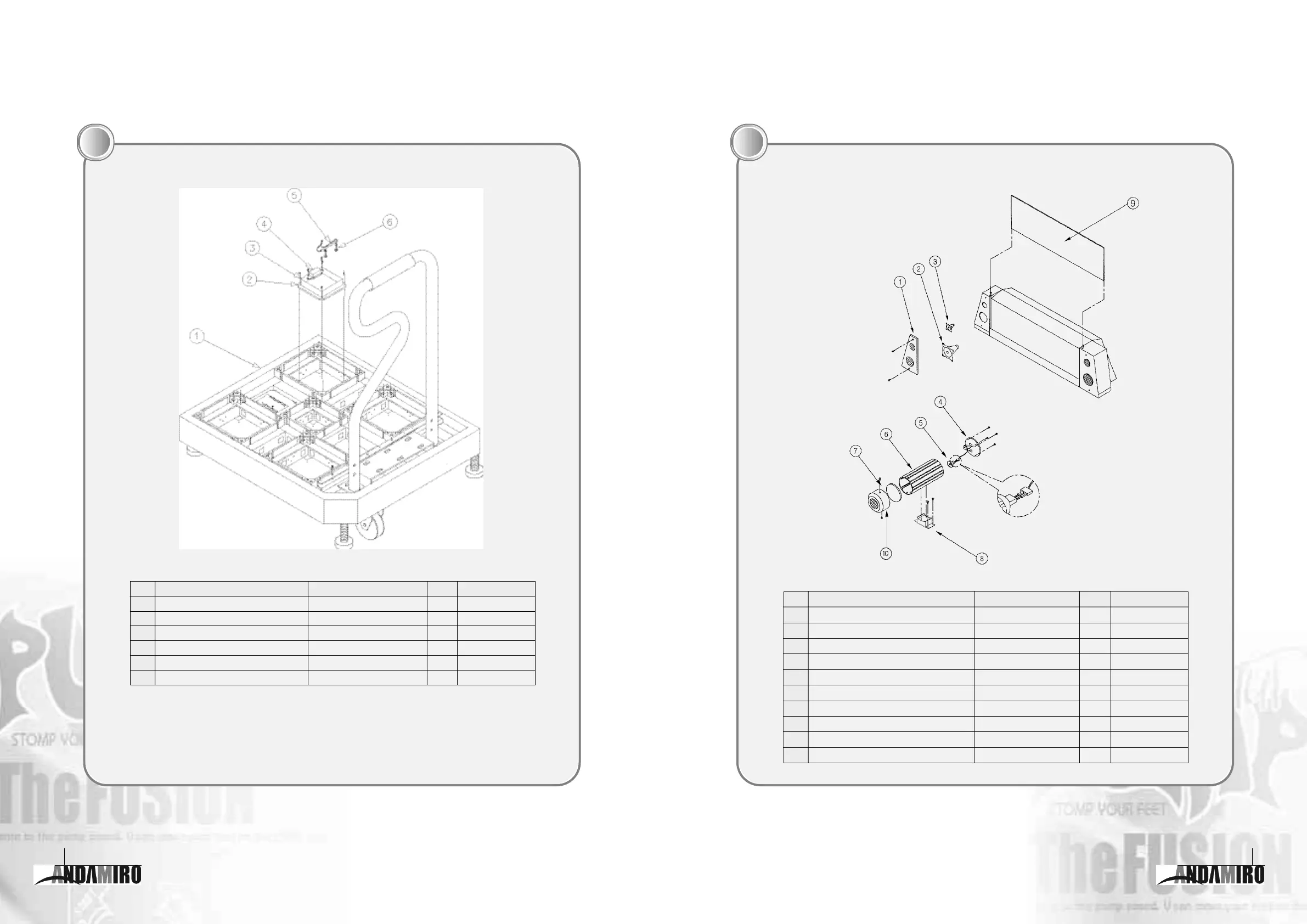

Andamiro PUMP IT UP SX - Assembly Diagrams 6 & 7

30
6
NO
1
2
3
4
5
6
CODE-NO
MO2OO1-O12A
COOOO1-OO4A
MO2OO1-O14A
A25OO1-OO1A
AO5OO5-OO2A
CO3OO1-OO3A
NAME
STEP FRAME-L
CCFL COVER
SENSOR FRAME-L
INVERTER
CCFL LAMP
CCFL LAMP SUPPORT
QTY
1
5
4
5
5
10
NOTE
31
7
NO
1
2
3
4
5
6
7
8
9
10
NAME
BILL BOARD SPEAKER COVER
SPEAKER
SPEAKER
HALOGEN LAMP BACK COVER
LAMP
LAMP BOX
BILL BOARD LAMP ACRYL
LAMP BOX SUPPORT
BILL BOARD ACRYL
BILL BOARD LAMP CAP
CODE-NO
MPUSOPRO004
MZZZOSPE004
MZZZOSPE005
MPUSOMEP025
MELEOLAM009
MPUSOPRO002
MPUSIACR021
MPUSOMEP028
MPUSOACR023
MPUSOMEP005
QTY
2
2
2
4
4
4
4
4
1
4
NOTE
