LOCATION RECOMMENDATIONS
MOUNT CONTROL
In the area where moisture levels need to be monitored and controlled.
On an interior wall.
At/near canopy height.
At least 18" from an outside wall.
DO NOT MOUNT CONTROL
In the flow of a supply register.
Behind doors, in corners or other dead air spaces.
In direct sunlight, near lighting fixtures, or other appliances that give off heat.
On an outside or unconditioned area wall.
In stairwells or near outside doors.
On a wall with concealed pipes or ductwork.
5
FEET
NONO
18"
MINIMUM
NO
90-1640

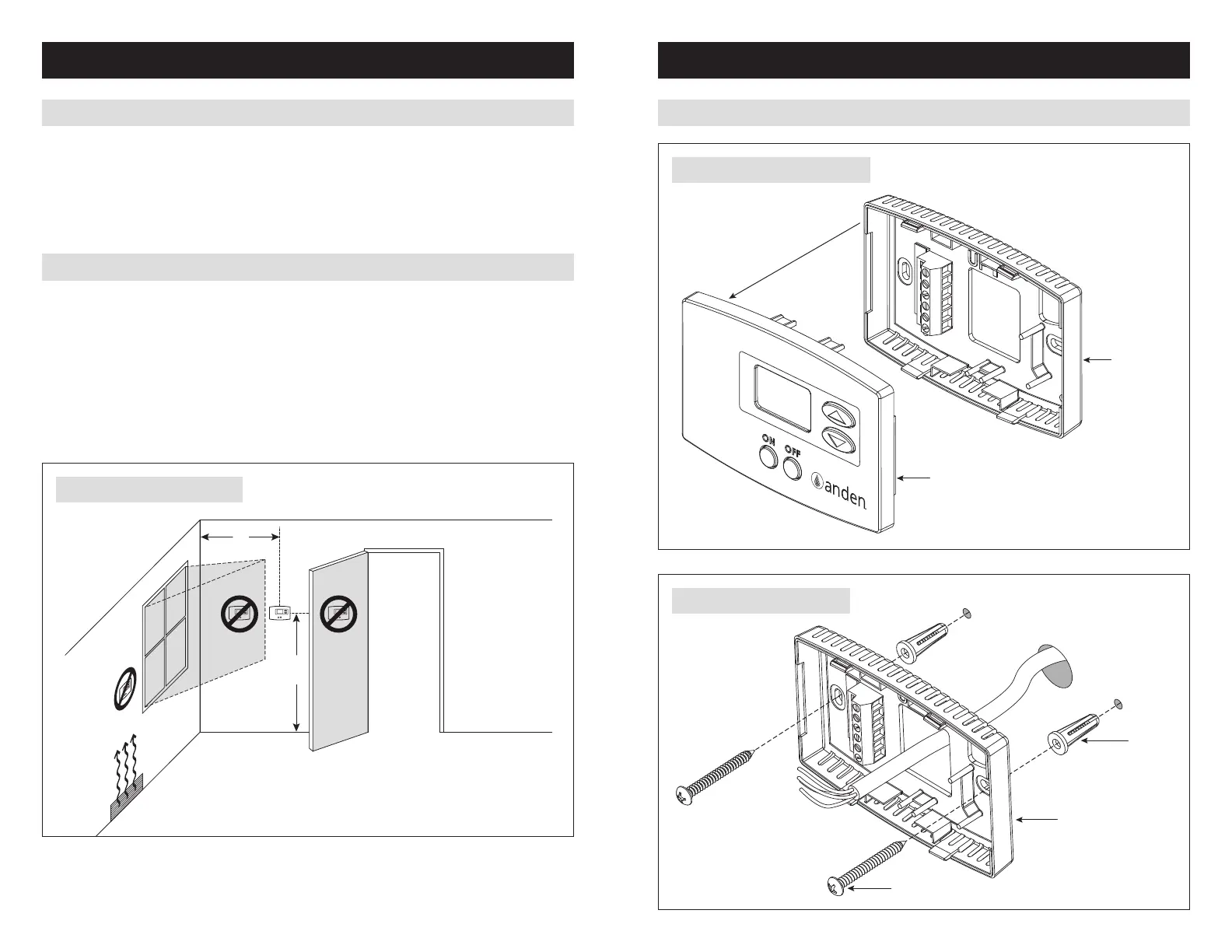

FIGURE 1 – MOUNTING LOCATION
INSTALLATION
MOUNT CONTROL
PULL APART
BACK PLATE
FRONT COVER
ANCHOR
BACK PLATE
SCREW
90-2504
90-2485
FIGURE 2 – DISASSEMBLE CONTROL
FIGURE 3 – MOUNT BACK PLATE
