Andersen 400 Series - Joining Unit Alignment

1. Prepare and Join Units (Continued)

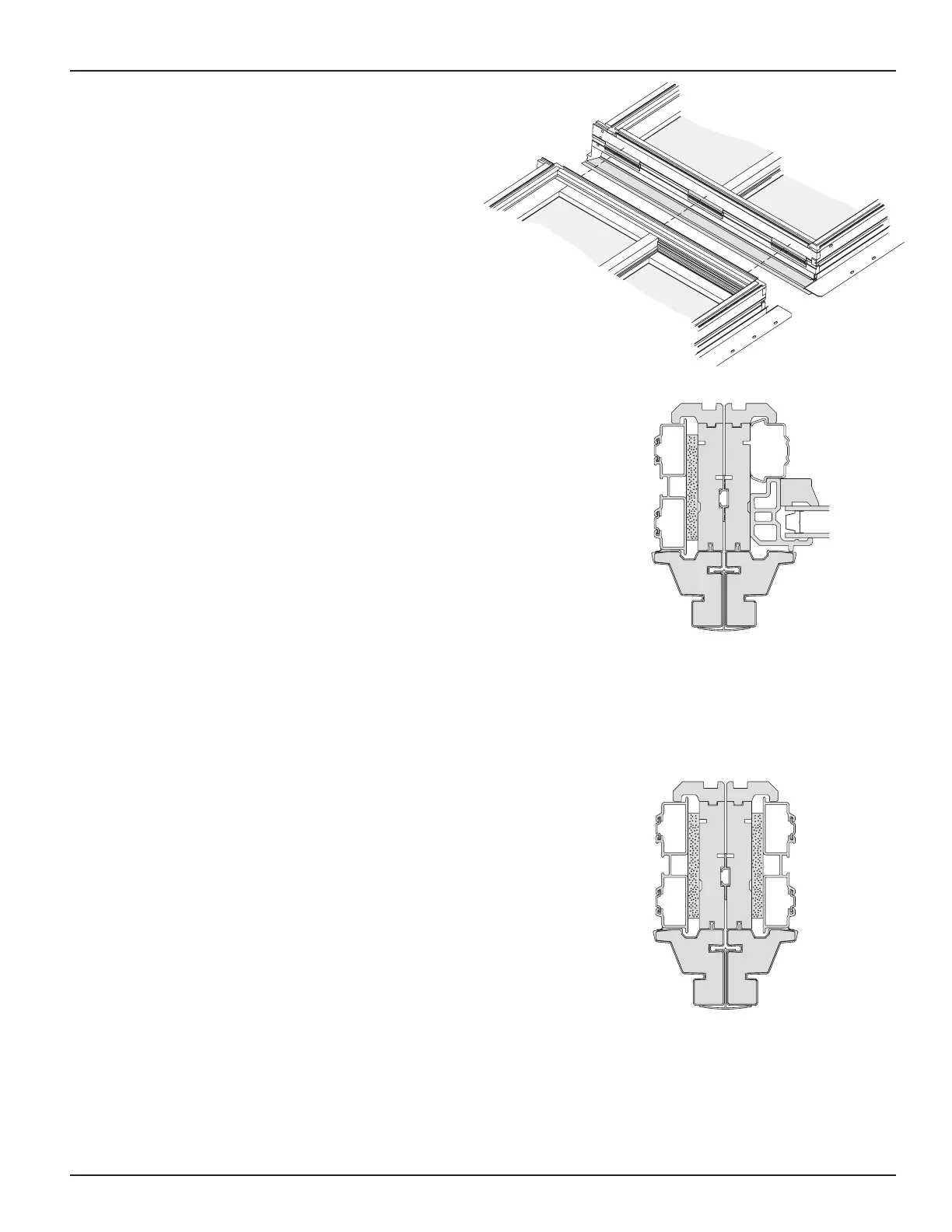

• Positiontheunitwithoutcomponentstightlyagainst
other unit. Make sure Vertical Exterior Trim Strip
remains in position and enters flange groove of unit.
Align units flush at head, sill and along length of
side jamb.
Tilt-Wash to Double-Hung
Picture Window
or
Transom to Double-Hung
Picture Window
Tilt-Wash to Tilt-Wash
or
Tilt-Wash to Transom
or
Transom to Transom
Interior Sides Up
Non-Reinforced Joining Guide (Vertical)
3
