Andersen Compact Motor 68/72ST - Exploded View of Assembly

PRODUCT MANUAL
68/72ST Above Deck Compact Motor
™
4
A4
A10
A1
A2
A5
A16
A14A12
A13

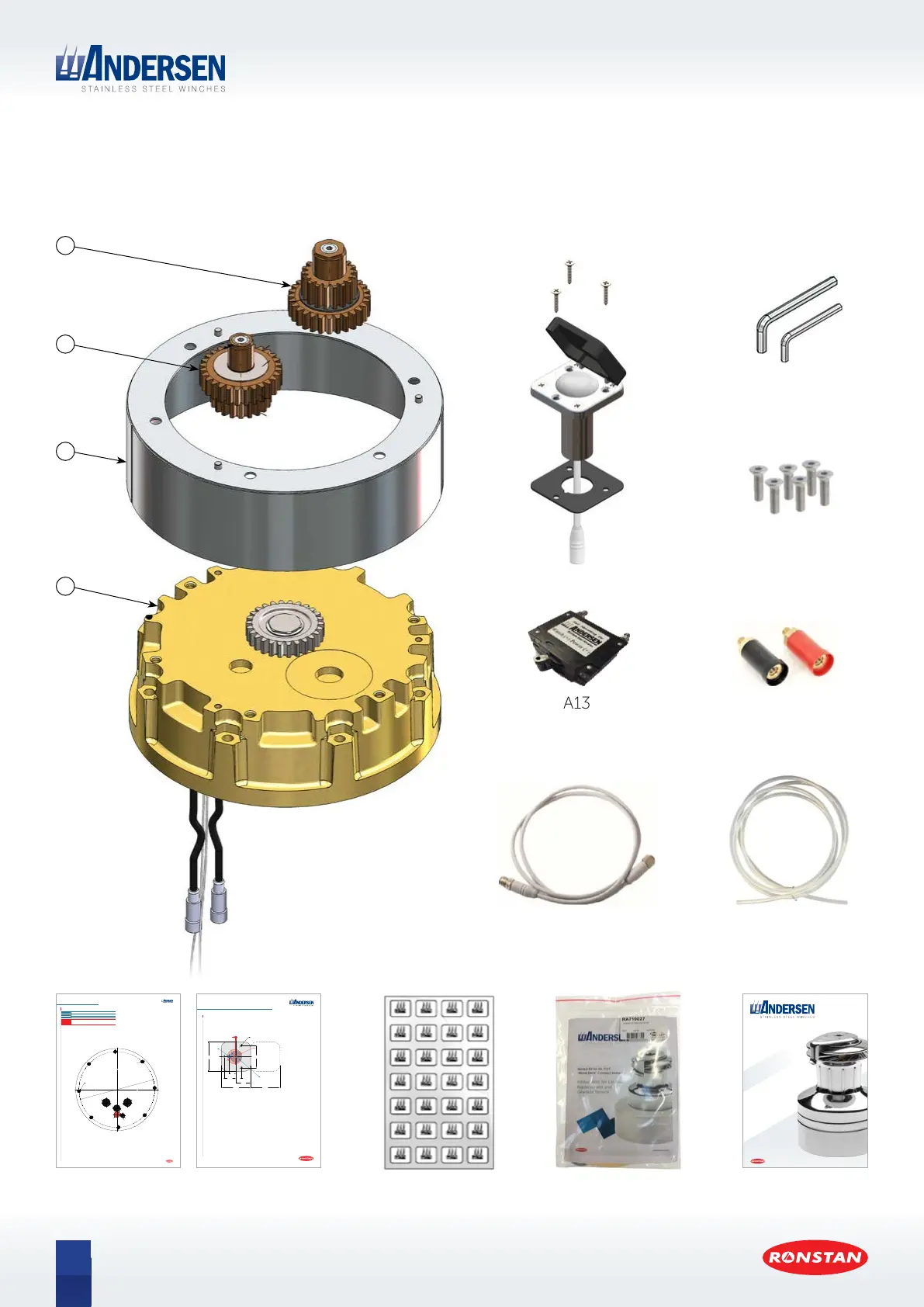

Exploded View
68/72ST Above Deck Compact Motor™ 12V/24V
4
2
3
1
Compact Motor
™
Above Deck
Winches, Size 68, 72 ST
Scale 1:1
Page size A2
Product No. RA2068015100 RA2068015200 RA2072015100 RA2072015200
IMPORTANT
This template document has been created at 1:1 scale. It is critical that
it is printed at 1:1 scale. Check any printed/reproduced copies match
the dimensions indicated at 1:1 scale prior to use.
HOLE DIAMETER PURPOSE
A 30mm Motor terminal RED positive (+)
B 30mm Motor terminal RED negative (-)
C 15mm Drain port
D 25mm Push button control cable & thermal sensor
E 20mm Push button control cable
ART No: RD100528
Mounting Dimension Template Part No. RD100528 - Rev.3
Mounting Dimension Template
Andersen Winches
B
A
D
C
E
Ø10.5
8 holes: Ø10.5mm (13/32”)
Use ISO 4017-A4 - M10 bolts.
15mm + deck thickness
+ thread below deck.
Lowest point
(Drain port)
DCØ262.5
Dimensions in mm unless otherwise indicated
PRODUCT MANUAL
Compact Motor
™
Above Deck
Electric Winch
68/72ST
FOR USE WITH:
Compact Motor™ Electric Winches
RA2068015100 RA2072015100
RA2068015200 RA2072015200
Compact Motor™ Conversion Kits
RA2068215100 RA2072215100
RA2068215200 RA2072215200
Winch Versions:
68ST (
≥
V.1.0) 72ST (
≥
V.1.0)
Your Winch Version No. __________________________________________
Your Motor Serial No. ______________________________________________
Push Button - E1, Two Speed & Three Speed Electric Winches
Scale 1:1
Page size A4 (210mmW x 297mmH)
Product No’s RA582000, RA582010, RA582020
Method A
Blue shaded areas of template
Drill a Ø19mm (3/4”) hole at the centre of the push button
location, and a Ø5mm (3/16”) hole immediately beside for
the breather tube (as indicated on the template).
Method B
Red shaded areas of template
Drill a Ø25mm (1”) hole at a 2mm (1/16”) o set to the centre
of the push button location (as indicated on the template).
RON-MDT/PBE1-Rev.2. 01-05-18
HOLE
Ø5mm
(3/16’’)
for breather
tube
12mm
(1/2’’)
20mm
(3/4’’)
HOLE
Ø19mm (3/4’’)
ON CENTRE
50mm
(1 15/16’’)
Cover in open position
50mm
(1 15/16’’)
2mm
(1/16’’)
37mm
(1 7/16’’)
3 HOLES
Ø3mm (1/8’’) TYP
25mm
(1’’)
50mm
(1 15/16’’)
HOLE
Ø25mm (1’’)
OFFSET 2mm from
centre of switch
9mm
(3/8’’)
Mounting Dimension Template
Andersen Winches
™
A9 A15 A11A3 A3
