Andersen LuminAire User Manual

5
A
72
68
A
ASSEMBLE
SCREEN
TRACKS &
HOUSINGS
Continued
1
A
C
Passive
Screen

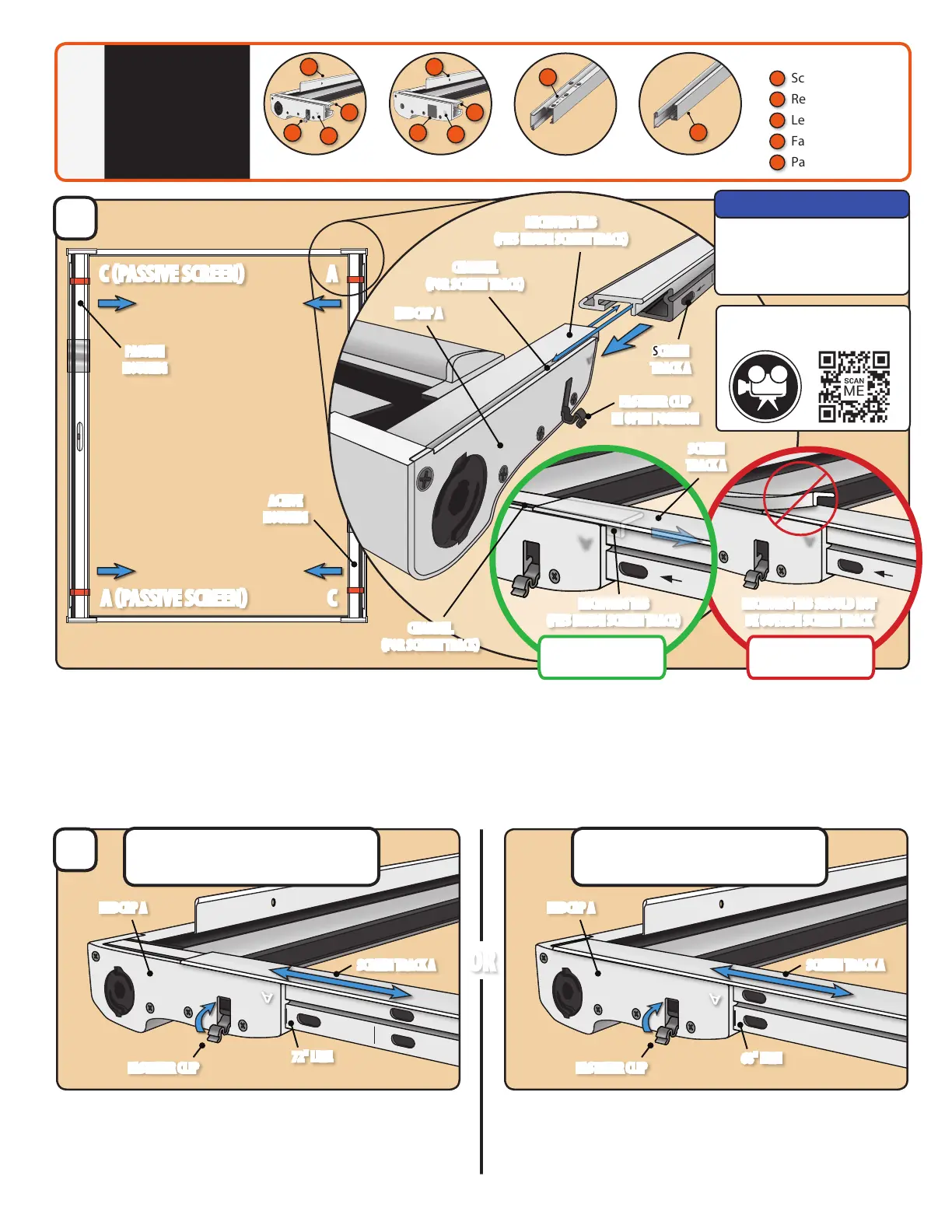

d1 Conrm the Fastener Clips on Active Housing endcaps, A and C are in the open position. Starting at corner A on the Active Housing, slide the Receiving Tab
on Endcap A inside the Screen Track. Ensure the Receiving Tab ts inside the Screen Track, and the Screen Track slides into the Channel. (see “correct” above).
(Visit AndersenLuminAire.com/Install to view a video of this step.)
d2 Repeat for endcap C on the Active Housing and endcaps A and C on the Passive Housing. Be sure the screen tracks are all the way into the passive housing.
(Note: The passive housing endcaps do not have Fasterner Clips, this allows the screen tracks to slide for adjustment to t the door opening.)
d3 Use the “72 Conguration” for openings 70 - 72" wide or “68 Conguration” for openings less than 70" wide in step b.
(If the opening is narrower than 68" wide, See Appendix A on page 10.)
e1 If the opening is between 70" and 72", adjust Screen Track A
until 72" line aligns with edge of Active Housing Endcap A.
e2 Rotate the Fastener Clip up until it snaps into the closed position.
e3 Repeat steps for side C.
e1 If the opening is less than 70", adjust Screen Track A until 68" line
aligns with edge of Active Housing Endcap A.
e2 Rotate the Fastener Clip up until it snaps into the closed position.
e3 Repeat steps for side C.
A
A
A
68
RECEIVING TAB
SLIDES INSIDE SCREEN TRACK TUBING!
A
A
A
72 Configuration
(use for opening widths between 70" to 72")
68 Configuration
(use for opening widths less than 70")
A
A
A
72
68
FASTENER CLIP
IN OPEN POSITION
PASSIVE
HOUSING
ACTIVE
HOUSING
SCREEN
TRACK A
SCREEN
TRACK A
CHANNEL
FOR SCREEN TRACK
CHANNEL
FOR SCREEN TRACK
ENDCAP A
ENDCAP A ENDCAP A
C
A
FASTENER CLIP FASTENER CLIP
72" LINE
68" LINE
SCREEN TRACK A SCREEN TRACK A
e
Active Housing Passive Housing Screen Track Screen Track
KEY REFERENCES
A
A
A
72
68
CORRECT
INCORRECT
RECEIVING TAB
FITS INSIDE SCREEN TRACK
RECEIVING TAB
FITS INSIDE SCREEN TRACK
RECEIVING TAB SHOULD NOT
BE OUTSIDE SCREEN TRACK
Visit AndersenLuminAire.com/install
to view a video of this step.
Screw Flanges
Receiving Tabs
Letter Labels
Fastener Clips
Passive Label
OR
1
2
3
4
5
1 1
4 5
3
3
3
3
2 2
d
Receiving Tabs on the Endcaps must
slide inside the Screen Track. Product
damage may occur if Receiving Tab is
forced outside the screen track.
NOTICE
A PASSIVE SCREEN
C PASSIVE SCREEN
