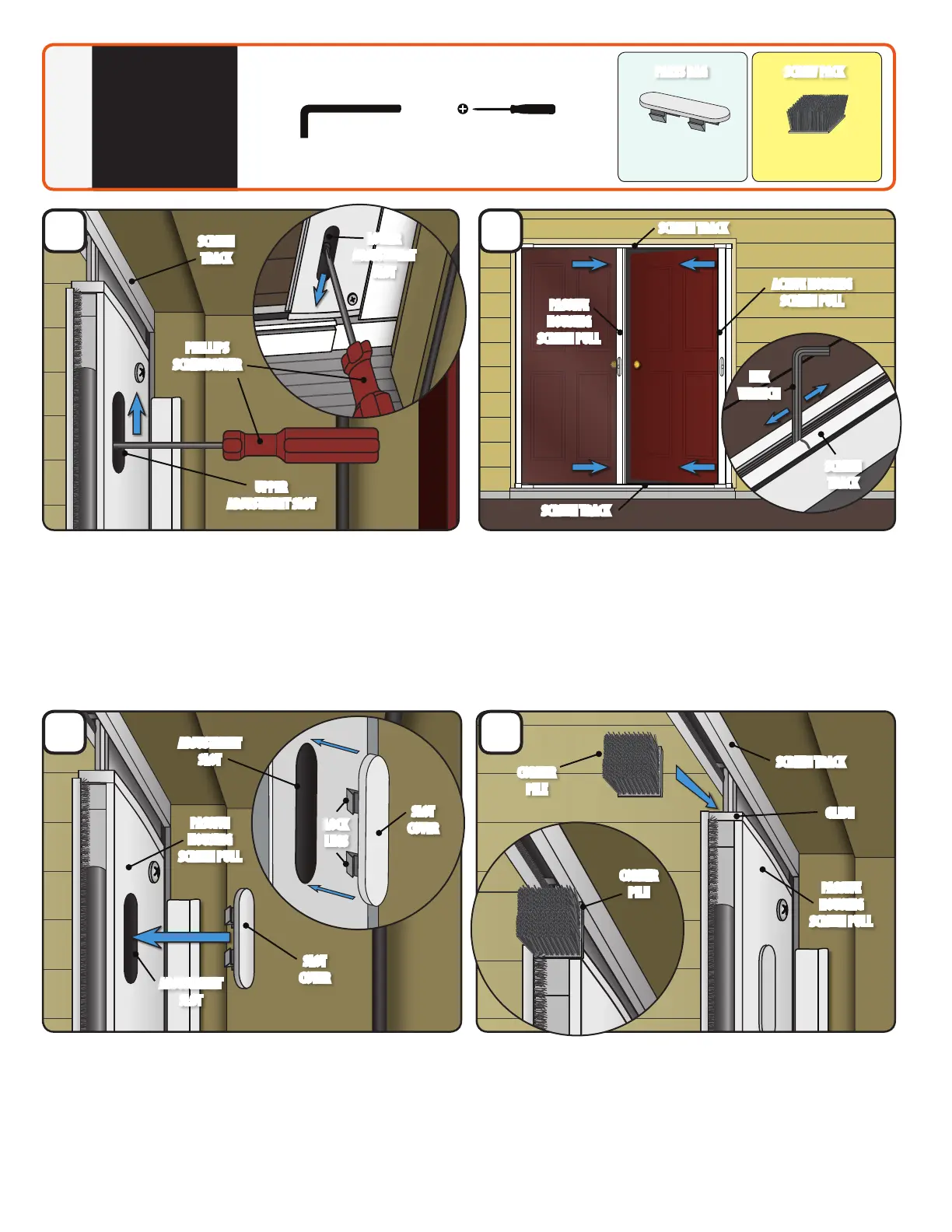

8
ADJUSTMENTS,
DUST PLUGS,
PLACE &
FASTEN SILL
ADAPTER
Tools Recommended:
3
c1 Once the track stops and locking pins have been adjusted and set,
unlatch and open both screens.
c2 Insert a Slot Cover into the upper Adjustment Slot until the
Lock Legs snap into place and it is rmly seated in place.
c3 Repeat for the lower Adjustment Slot.
d1 Peel paper from back of Corner Pile and place at the top of the Passive
Housing Screen Pull against the Glide and rmly press into place.
d2 Repeat step for other end of the Passive Housing Screen Pull.
a1 Inside the Upper Adjustment Slot, keeping the Phillips Screwdriver in
contact with the screw, loosen the screw until it can be moved, approximately
2 turns; do not fully remove the screw. Use the Phillips Screwdriver to slide
the upper pin up towards the Screen Track until it stops. Tighten screw down.
a2 Inside the Lower Adjustment Slot, keeping the Phillips Screwdriver
in contact with the screw, loosen the screw until it can be moved,
approximately 2 turns; do not fully remove the screw. Use the Phillips
Screwdriver to slide the lower pin down towards the Screen Track until
it stops. Tighten screw down.
b1 From the exterior of the screen assembly, extend the Passive Housing
Screen Pull to the closed position in the center of opening. The Screen
Pull should latch at the top and bottom Screen Tracks.
b2 Verify Passive Housing Screen Pull is centered. If not centered, you can
adjust the location of Passive Housing Screen Pull by repeating step 2g
through 4g until the desired position is achieved.
b3 Once positioned, extend the Active Housing Screen Pull to the closed
position, latching it into Passive Housing Screen Pull. If not done previously,
the orange installation clips can come o and be properly disposed of.
SCREEN
TRACK
SCREEN TRACK
ACTIVE HOUSING
SCREEN PULL
GLIDE
SCREEN TRACK
CORNER
PILE
CORNER
PILE
SLOT
COVER
ADJUSTMENT
SLOT
ADJUSTMENT
SLOT
SLOT
COVER
LOCK
LEGS
PASSIVE
HOUSING
SCREEN PULL
PASSIVE
HOUSING
SCREEN PULL
PASSIVE
HOUSING
SCREEN PULL
SCREEN TRACK
PHILLIPS
SCREWDRIVER
UPPER
ADJUSTMENT SLOT
LOWER
ADJUSTMENT
SLOT
HEX
WRENCH
a
c
b
d
SCREEN
TRACK
PARTS BAG SCREW PACK
Slot Covers Corner Pile
3/32 Hex Wrench
(provided)
Screwdriver
