Please note:
It is extremely important that the wires or cores in the ex are connected to the
correct terminals in the plug. If the colour of the mains lead of the appliance does
not correspond with the coloured markings idenfying the terminals in your plug
proceed as follows:

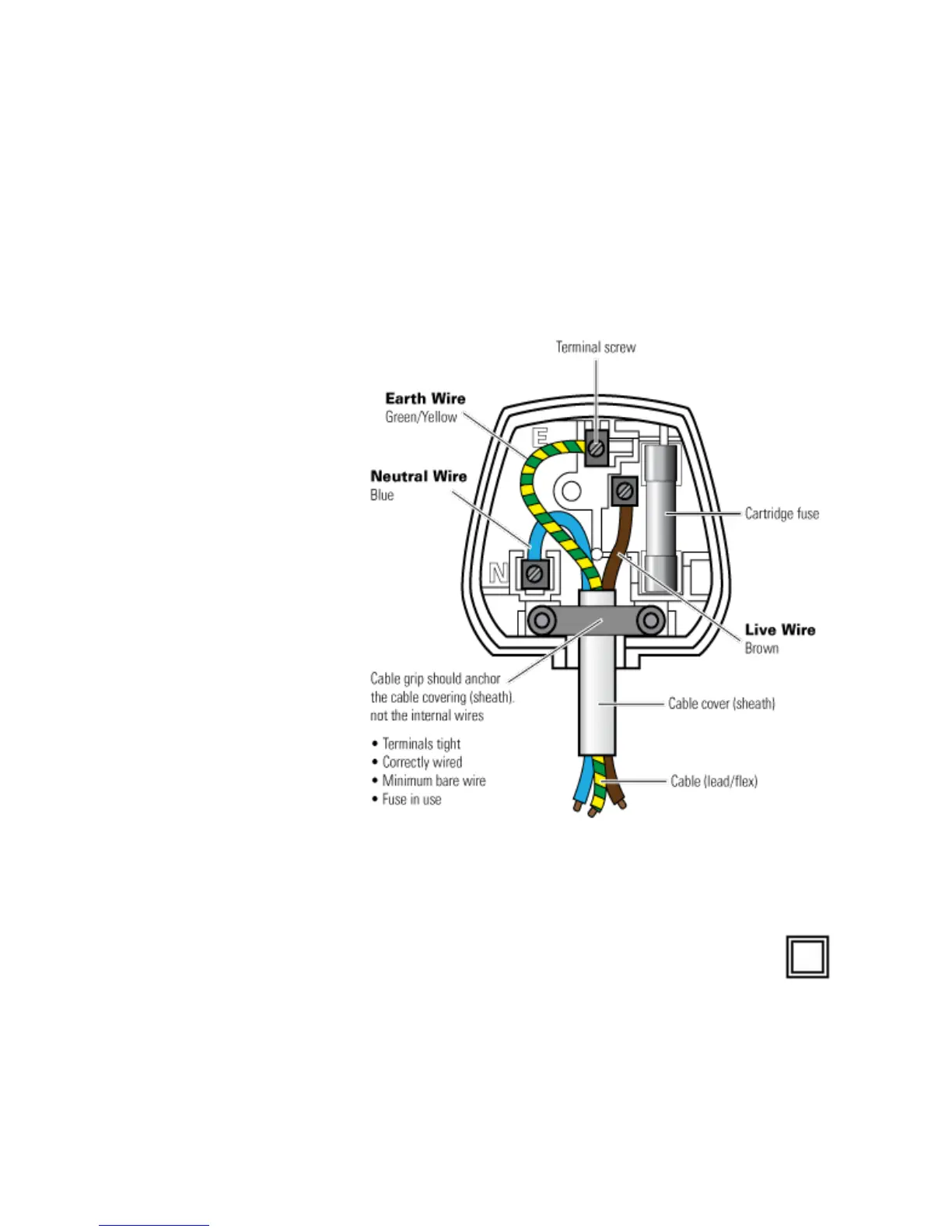

 The Live (Brown)
wire connects to
the right- most
live (L) terminal
nearest to the
fuse.
 The Neutral (Blue)
wire connects to
the le-most
neutral (N)
terminal.
 The Earth (Green
and Yellow) wire
connects to the
central, top most
earthed (E)
terminal.
Warning:
If the appliance is double insulated indicated by the double insulated symbol:
it should not have an earth wire or earth connecon.
Plug
The plug must be protected by the correct AMP fuse; this will be indicated on the
case of the plug. Only BSI or ASTA approved fuses should be used. When changing
Electrical Informaon
