andrews CSC39 - Page 12

INSTALLATION SECTION 3
9
BULK STORAGE
VESSEL
INSTALLATION
CYLINDER
INSTALLATION

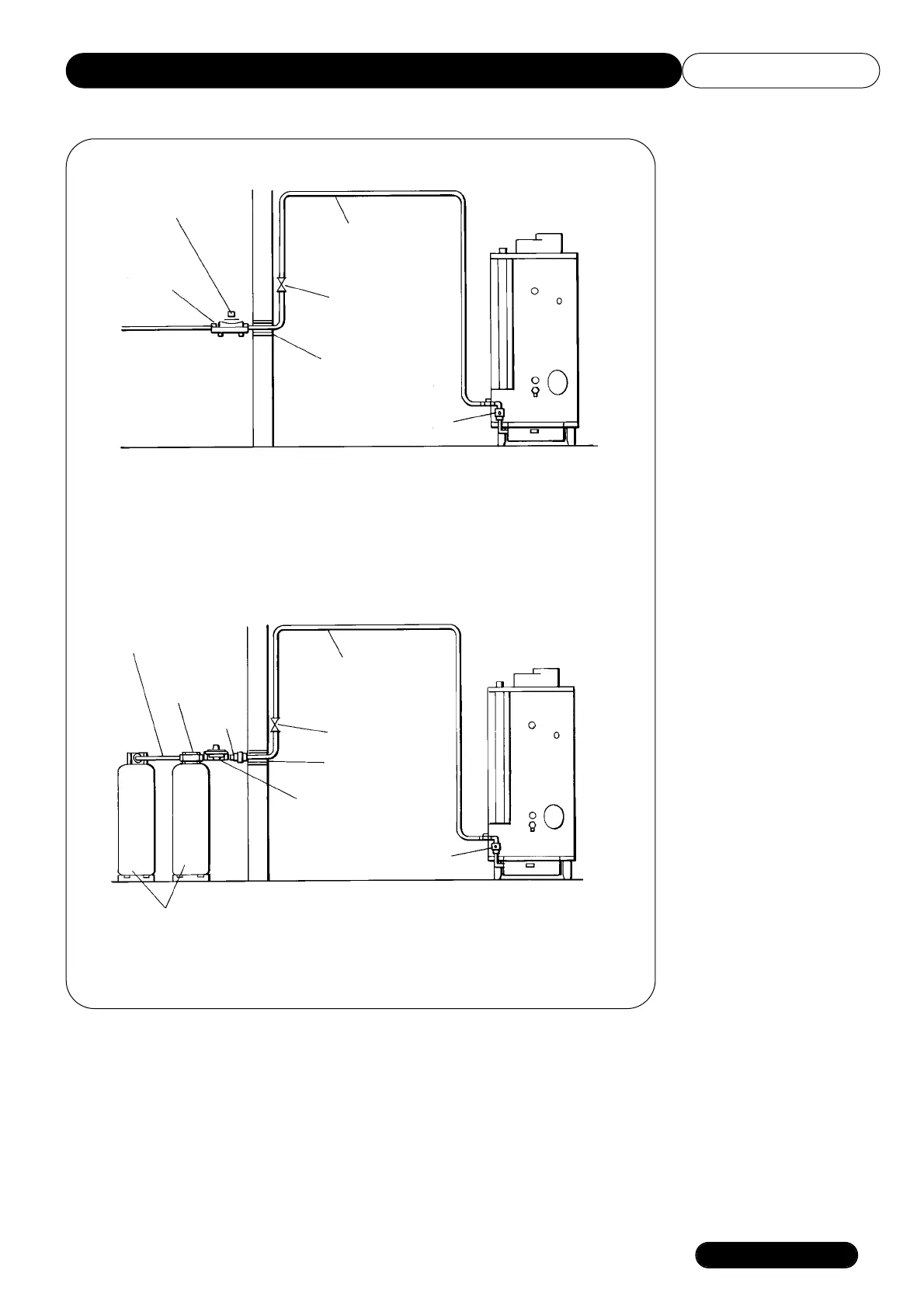

Fig 2.
Regulator Set to
give 37 mbar
(14.86” Wg)
Propane
Pigtail
Assembly
Automatic
change over
device
Nipple
Regulator normally
fitted at tank
To bulk Supply
Installation of
Propane supply
1” Heavy Steel Sleeved
Pipe Through Wall
1” Heavy Steel Sleeved
Pipe Through Wall
Gas emergency
control at entry
point to building
Gas emergency
control at entry
point to building
Steel Liner sealed to
pipe at inside end
Steel Liner sealed to
pipe at inside end
Cylinder regulator Set to give
37 mbar (14.86”) Propane
3/4” Spring loaded gas cock
3/4” Spring loaded gas cock
Propane cylinder must be
outside building
