12 1-13-2022

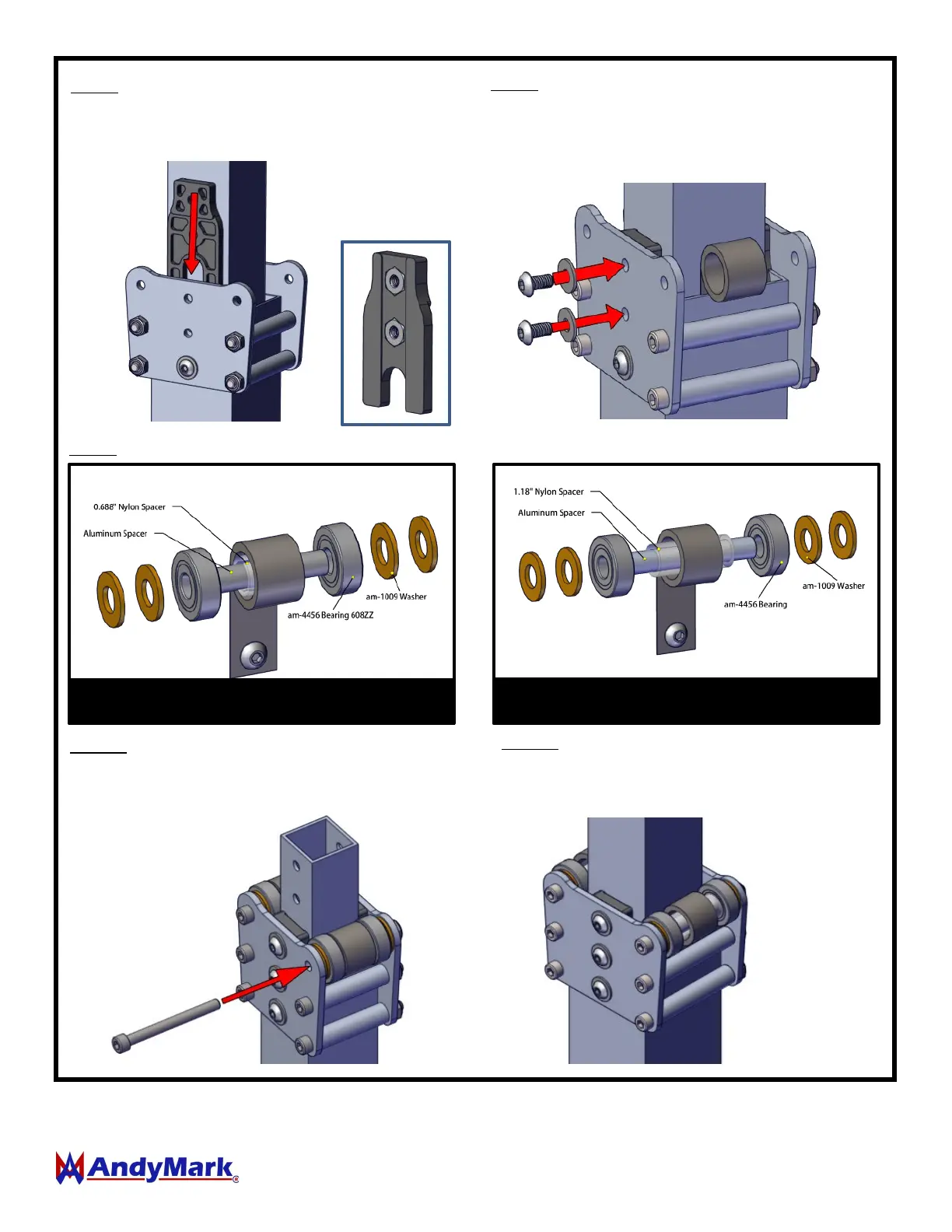

Step 9: Assemble the spacers, washers, and bearings through and alongside the spring as shown.
Step 10: Insert a 10-32 x 2” screw through the plates
and assembly and secure with a nylock nut.
Step 11: For the 2-stage climber, insert the end of the
1.5” tube assembly into the 2.0” tube and repeat steps
1-9 to attach the bearings and plates to the 1.5” tube.
Step 7: Carefully insert slider block on each side and
attach with. The Nuts will fit into the pockets in the
slider blocks.
Step 8: Secure Inside slider blocks (am-4629) and
Bearing Plate Assembly to the top of the 1.5” Tube
using 10-32 x 0.375” Button Head Cap Screws with
thread patch(am-1588), Washers (am-1026)
To Next Page
