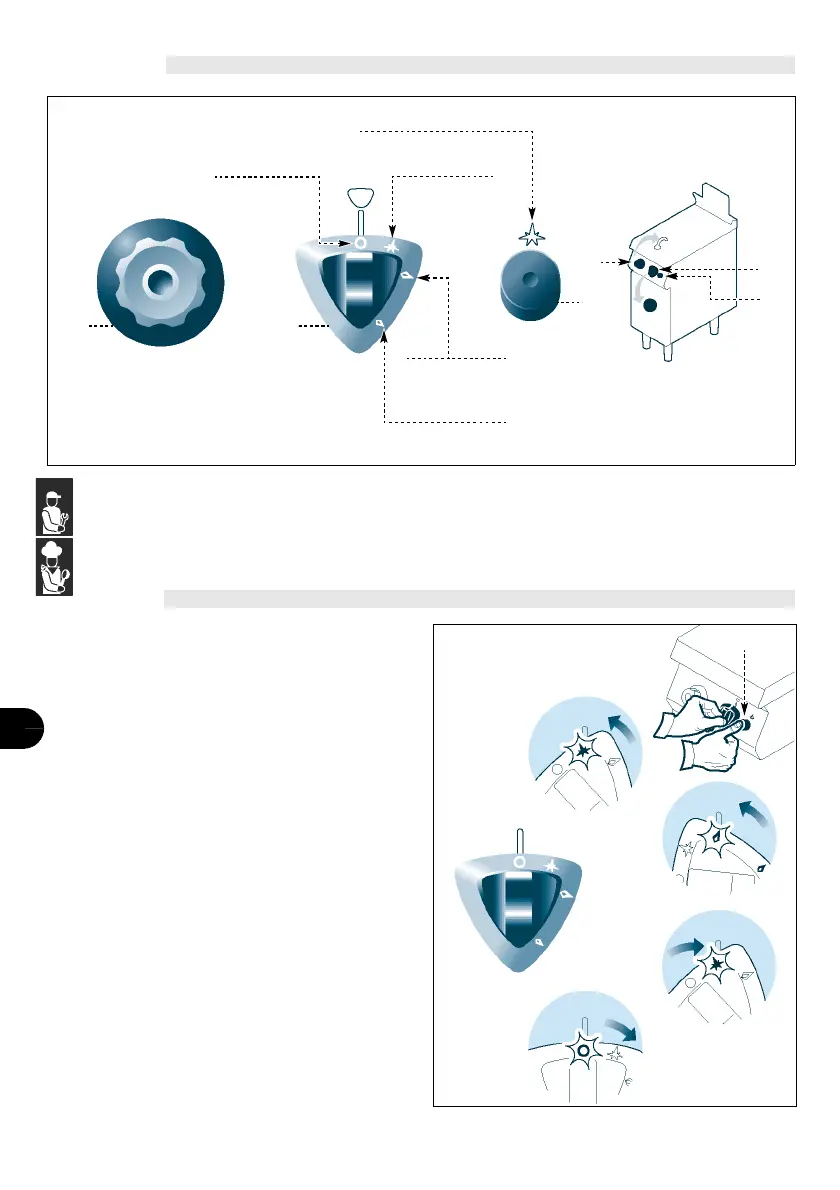

DESCRIPTION OF CONTROLS
The appliance is fitted with the controls for use of
its main functions.
A)Burner control knob: for lighting, turning off
and regulating the relative burner and pilot
light.
B)Water tap: for regulating the flow of water.
C)Piezoelectric ignition knob: for lighting the pilot light.
SWITCHING THE BURNER ON AND OFF
The lighting and turning off procedure is as described
below for both burners.
Lighting
1 - Turn on the gas supply tap.
2 - Press the knob and turn it anti-clockwise (pos. a)
while at the same time pressing the piezoelectric
ignition knob (A) repeatedly to light the pilot light.
Keep the knob pressed for about 15 sec. to prime
the thermocouple.
3 - Turn the knob anti-clockwise (pos. b) to light the
burner.
N.B.: turn the knob gradually anti-clockwise to adjust the
power of the flame down to the minimum setting.
Turning off
4 - Turn the knob clockwise (pos. c) to turn the burner
off.
N.B.: the pilot light will remain on to allow the burner to
be re-lit.
5 - Turn the knob clockwise (pos. d) to turn off the pi-
lot light.
6 - Turn off the knob to ensure safety.
IDM-39603306100.tif
Off marker Pilot light
marker
Full power marker
Minimum power marker
Piezoelectric ignition
marker
AB
C
C
A
B
d
c
b
a
IDM-39603306200.tif
A
