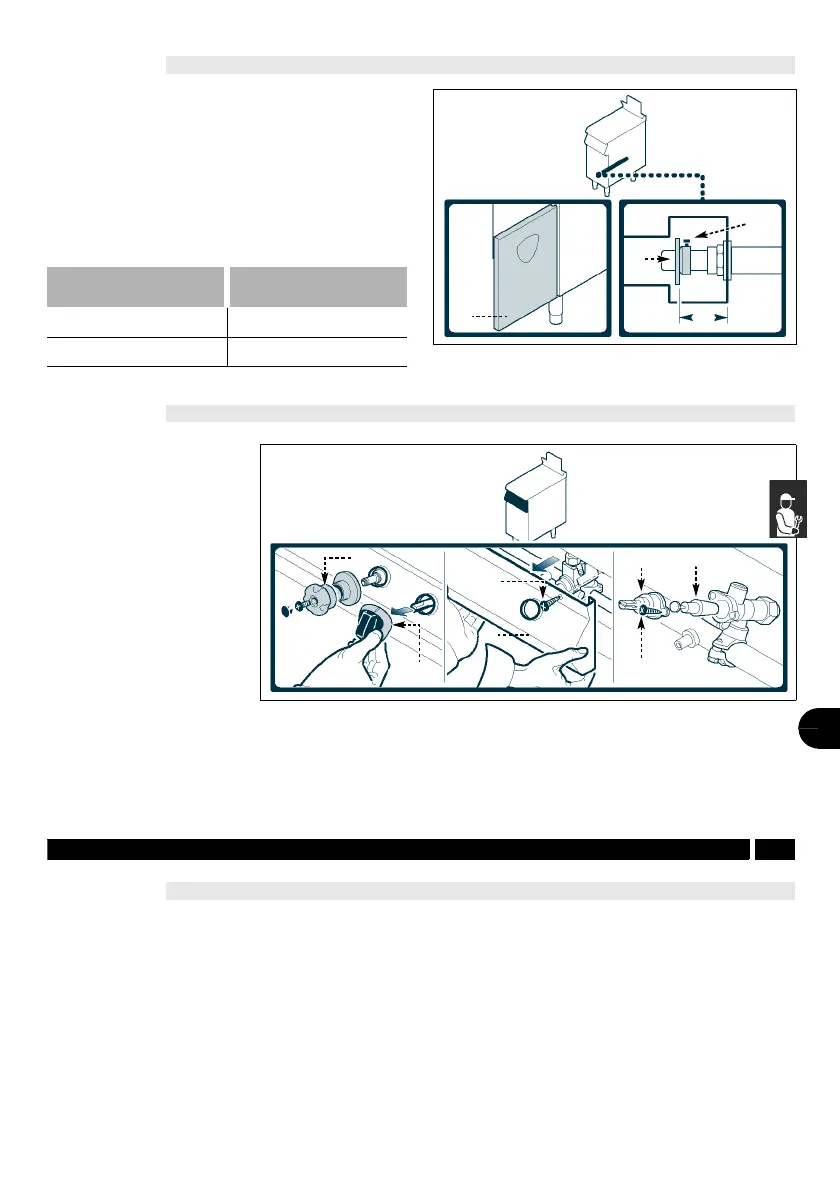

ADJUSTING BURNER PRIMARY AIR
To carry out this operation, proceed as follows.
1 - Open the door (A).
2 - Back off the screw (B) which secures the ring nut
(C).
3 - Set the ring nut (C) at the distance (D) shown in
the table.
4 - Tighten the screw (B).
5 - Close the door (A).
GREASING THE GAS TAP
To carry out this operation,
proceed as follows.
1 - Turn off the gas supply
tap.
2 - Pull off the knobs (A).
3 - Remove the knob units
(B).
4 - Undo the screws (C) and
remove the control panel
(D).
5 - Undo the screws (E) and
extract the cap (F).
6 - Pull off the cone (G).
7 - Clean the cone (G) and its seat.
8 - Coat the cone with grease (G), fit it in its seat and
turn it a few times.
9 - Pull off the cone (G) to remove the excess grease.
10 - Replace the cone (G), the cap (F), the control pan-
el (D) and the knobs (A and B).
REPLACING PARTS 9
RECOMMENDATIONS FOR REPLACING PARTS
Before carrying out any replacement procedure, acti-
vate all the safety devices provided and decide
whether staff at work and those in the vicinity should
be informed. In particular, turn off the gas supply tap
and prevent access to all devices which might cause
unexpected health and safety hazards if turned on.
If work parts have to be replaced, use original spare
parts only.
The manufacturer declines all responsibly for injury or
damage to components due to the use of non original
parts, or extraordinary work on the appliance which
may modify the safety requirements without the man-
ufacturer's authorisation.
When ordering components, follow the instructions
provided in the parts catalogue.
Gas family
Distance
(D)
(mm)
Natural gas 27
Universal LPG 25
A
C
B
D
IDM-39603312700.tif
D
C
E
F G
IDM-39603306400.tif
B
A
