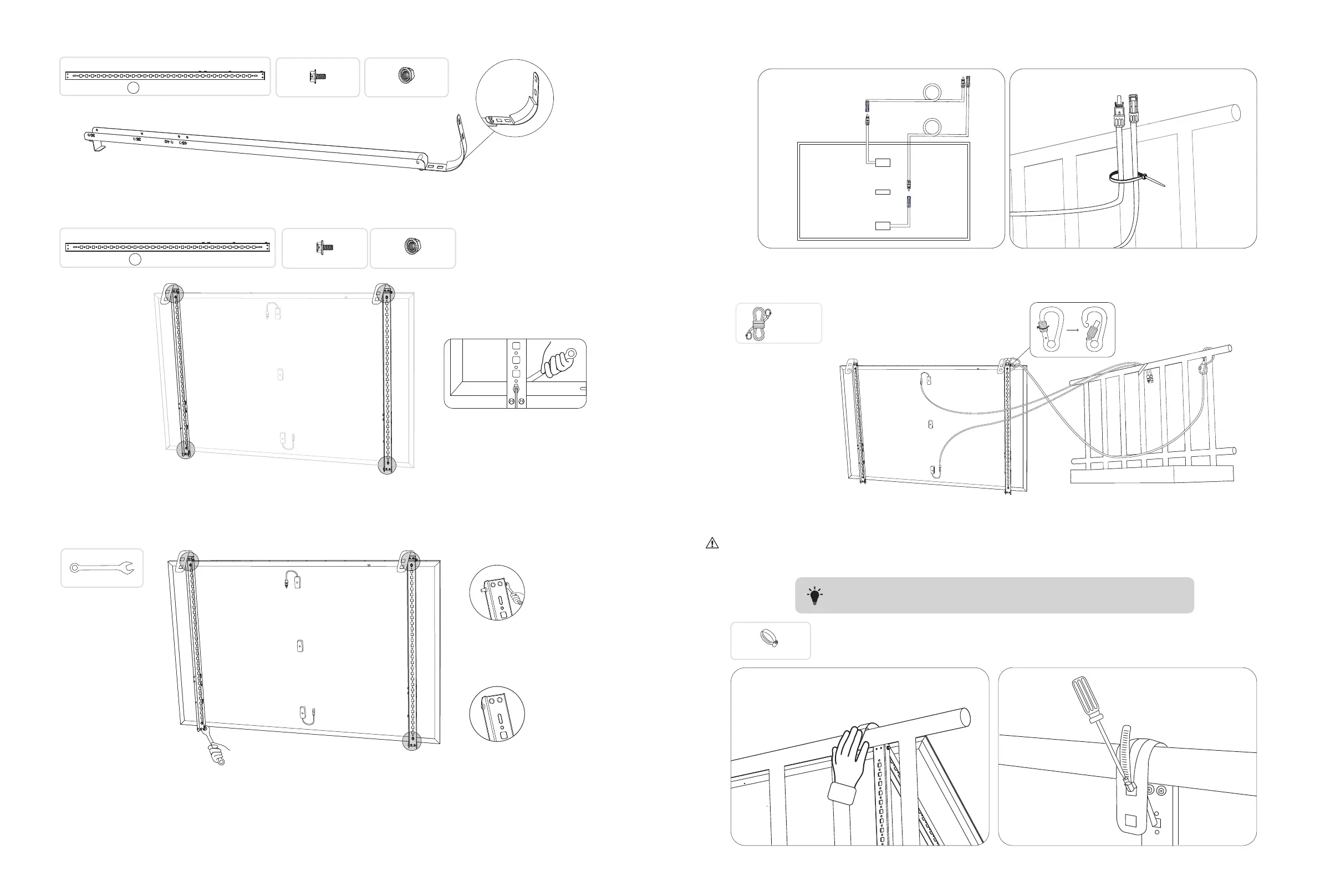

5. Connect the solar panel with the solar panel extension cable.
Note: To avoid falling, secure the solar panel extension cable on the balcony railings temporarily with zip ties.
6. Fasten the Mounting Auxiliary Rope to the bracket and the balcony railing. Make sure the rope is tightened.
O x1
Mounting Auxiliary Rope
7. Hang the solar panel on the balcony railing and adjust the U-shaped racks manually to fit the shape of the balcony railing.
Then, secure the U-shaped racks with stainless steel hose clamps.
Hold the solar panel until the U-shaped racks are firmly secured with stainless steel hose clamps.
Pressing the U-shaped racks too often may cause the paint surface to crack.
T
·
Tighten the stainless steel hose clamps clockwise.
·
Loosen the stainless steel hose clamps counterclockwise.
304 Stainless Steel Hose Clamp
K x2
2. Place the silicone buer pads onto the U-shaped racks, then mount the U-shaped racks to the solar panel's support beams.
I x4
M6×12 Hexagon Flange Bolt
J x4
A x2
Solar Panel Support Beam
mm
1200
M6 Flange Nut
3. Mount the solar panel support beams on the solar panel.
A x2
Solar Panel Support Beam
mm
1200
I x4
M6×12 Hexagon Flange Bolt
J x4
M6 Flange Nut
4. Tighten all the screws with 5N.m torque.
5N.m
N x1
Hexagon Wrench
