This document describes the Anko Gaming Mouse (Keycode: 43030545), a wired gaming mouse designed for indoor use with Windows 7/8/10 or later operating systems.

Function Description

The Anko Gaming Mouse is a multi-button device with customizable functions and RGB lighting effects. It features:

Left Button: Standard left-click function.
Right Button: Standard right-click function.
Middle Button: Standard middle-click function, often associated with scrolling or opening links in new tabs.
Forward Button: Navigates to the next page in web browsers or file explorers.
Back Button: Navigates to the previous page in web browsers or file explorers.
DPI Button: Cycles through selectable DPI settings.
LED Switch Button: Adjusts the RGB light mode.

The mouse connects to a computer via a USB cable and is designed for immediate plug-and-play use. For advanced customization and additional functions, a dedicated driver can be downloaded from the provided URL: http://www.intraindustry.com/downloads.html.

Important Technical Specifications

DPI Settings: Selectable DPI values include 1000, 2400, 3600, 5000, 7000, and 10000 DPI. The software allows for customization of six DPI groups within a range of 200 to 10000 DPI.
RGB Lighting: Features 10 distinct RGB light effects, adjustable via the LED switch button. These effects include Colorful Streaming, Steady, Breathing, Colorful Tail, Neon, Colorful Steady, Flicker, Tail, Wave, and LED OFF.
Polling Rate: Adjustable polling rates of 125Hz, 250Hz, 500Hz, and 1000Hz are available.
Compatibility: Supports Windows 7, 8, 10, or later.

Usage Features

The Anko Gaming Mouse offers extensive customization through its software interface, "KM43030545 Gaming Mouse Setup."

Button Customization: Each of the mouse's buttons can be assigned various functions:

Basic Functions: Left Button, Right Button, Middle Button, Forward, Back, Scroll Up, Scroll Down, Three Click (equivalent to three left clicks).
Special Functions:
- Fire Key: Allows adjustment of the speed rate for the mouse key within the software.
- Key Combination: Customizes up to three keyboard buttons (e.g., Ctrl+A+B) to combine button functions.
- Switch Effect: Activates the LED switch function.
- Macro: Assigns recorded macros to buttons.
- Disable: Renders the button inactive.
- DPI: Assigns DPI+, DPI-, or DPI Loop functions.
- Multimedia: Provides control over media functions such as Media Player, Play/Pause, Next, Previous, Stop, Mute, Volume Up, Volume Down, Email, Calculator, Explorer, and Homepage.
- DPI Lock: Locks the DPI to a specific value within the range of 200-1100.

DPI Settings: The software allows users to enable or disable individual DPI settings and customize the color associated with each DPI level. Users can set six distinct DPI values, adjusting them within the 200-10000 DPI range.

Lighting Settings: Users can select from 10 different RGB light effects, including various streaming, steady, breathing, and flickering modes, or turn the LEDs off entirely.

Mouse Parameters:

Mouse Sensitivity: Adjusts the overall movement speed of the mouse.
Scrolling Speed: Controls the speed of the scroll wheel.
Double-Click Speed: Adjusts the speed required for a double-click to register.
Polling Rate: Selects the desired polling rate (125Hz, 250Hz, 500Hz, 1000Hz).

Profile Management:

Export Profile: Saves current settings to the computer.
Import Profile: Loads existing settings from a file.
Factory Restore: Resets all mouse settings to their default factory values.
Apply: Writes the current settings to the mouse.

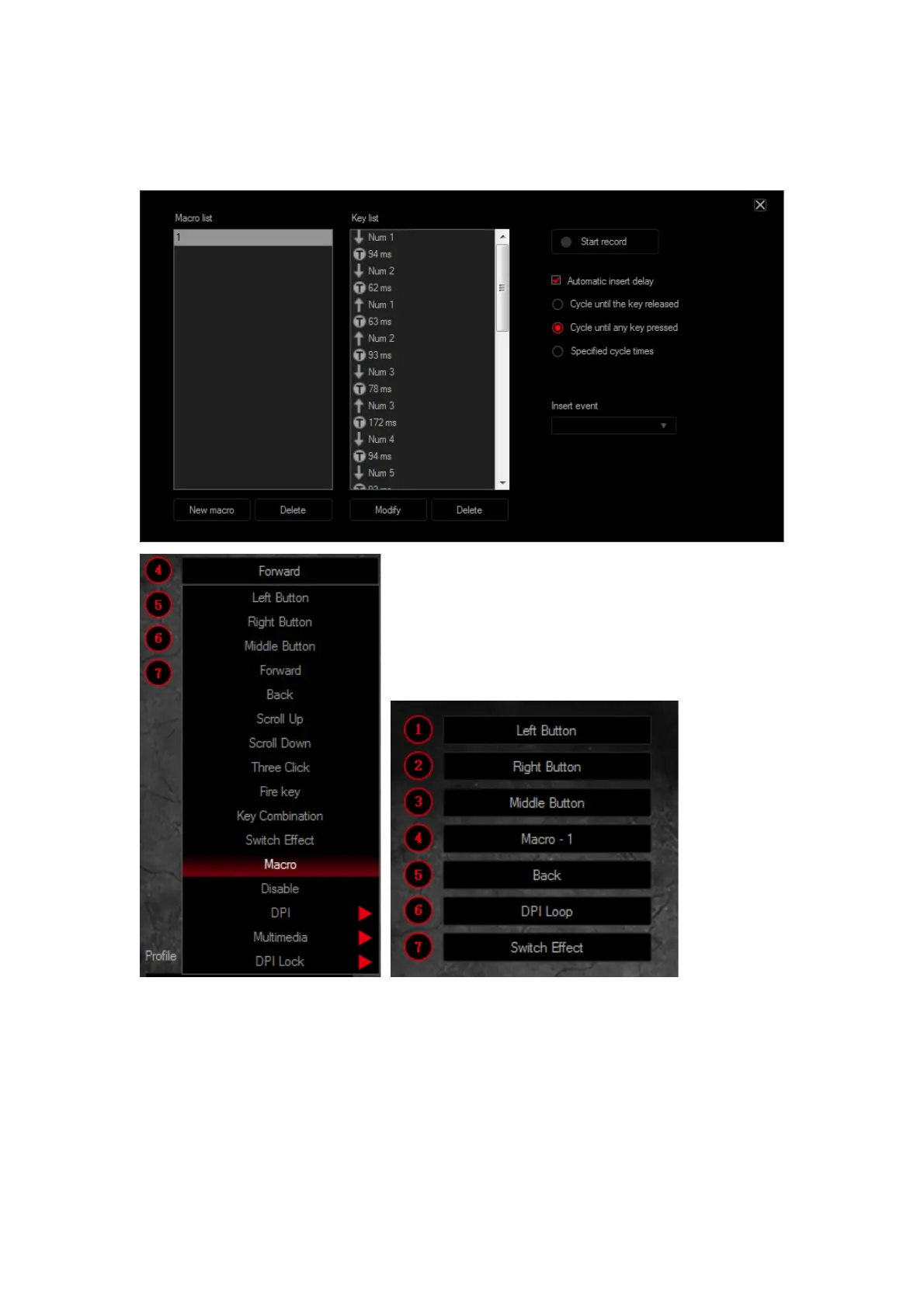

Macro Editor: The Macro Editor allows users to record and manage keyboard key sequences, including the time delay between key presses and the number of cycles.

Creating Macros: Users can create new macro files (e.g., a, b, c...).
Recording Macros: Start recording any keyboard keys; the recorded sequence will appear in the macro edit box. Stop recording when finished.
Macro Options:
- Insert Event: Inserts content at a selected location within the macro.
- Delete: Removes selected content from the macro.
- Modify: Changes delay values or re-inputs buttons.
Execution: Macros can be assigned to mouse buttons (e.g., mouse button 4) and executed by pressing the assigned button. Options include cycling until the key is released, cycling until any key is pressed, or cycling a specified number of times.

Maintenance Features

Cleaning: The manual advises keeping the appliance clean and dry.
Troubleshooting: In case of malfunction due to electrostatic discharge or a short power surge, users should disconnect the mouse from the computer and then reconnect it.
Uninstalling the Driver: To uninstall the driver, users can go to the control panel, open "Add or Remove Programs," find "KM43030545 RGB Gaming Mouse," and click "delete."

Safety Precautions:

Read the instruction manual carefully before use.
Keep the manual for future reference.
Use the device only for its intended purpose.
Use the appliance indoors only.
Keep the appliance away from hot surfaces and naked flames.
Place the appliance on a level, stable, clean, dry surface.
Protect the appliance from extreme heat, cold, dust, direct sunlight, humidity, and water.
Do not immerse the appliance in water or other liquids.
Do not open the housing.
Do not introduce any objects into the housing.
