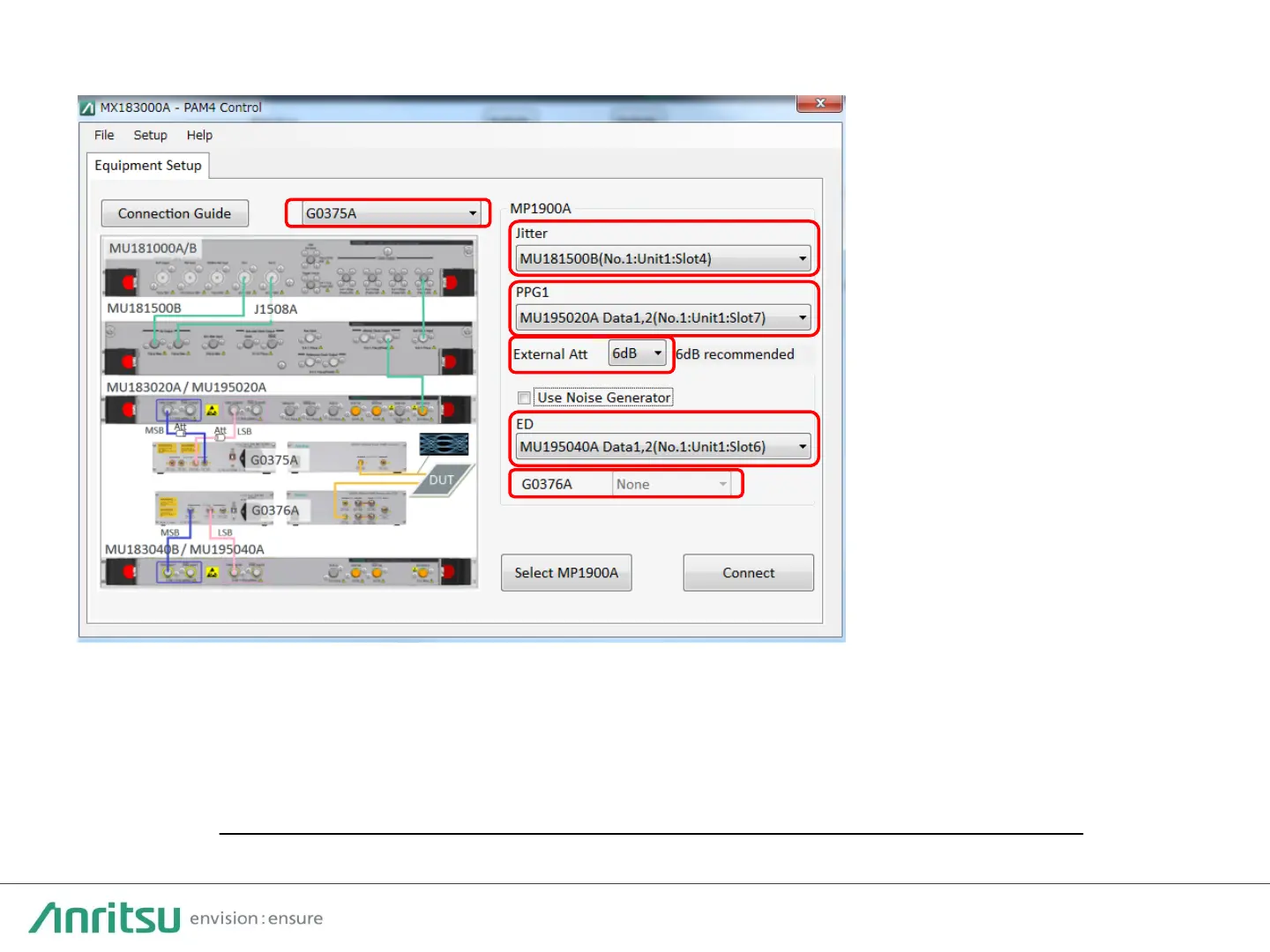

Equipment setup(2/2)
- Select Jitter, PPG, and ED with unit number from each selection list.
- Select G0375A and G0376A COM port with USB
*Select “None” when Jitter, PPG or ED isn’t used for testing.
- Set External Att value to 6 dB when 6 dB attenuator is used between PPG and
G0375A. (6 dB attenuator is recommended for evaluating SNDR or SNR_ISI.)
