Measurement Procedure (1/2)

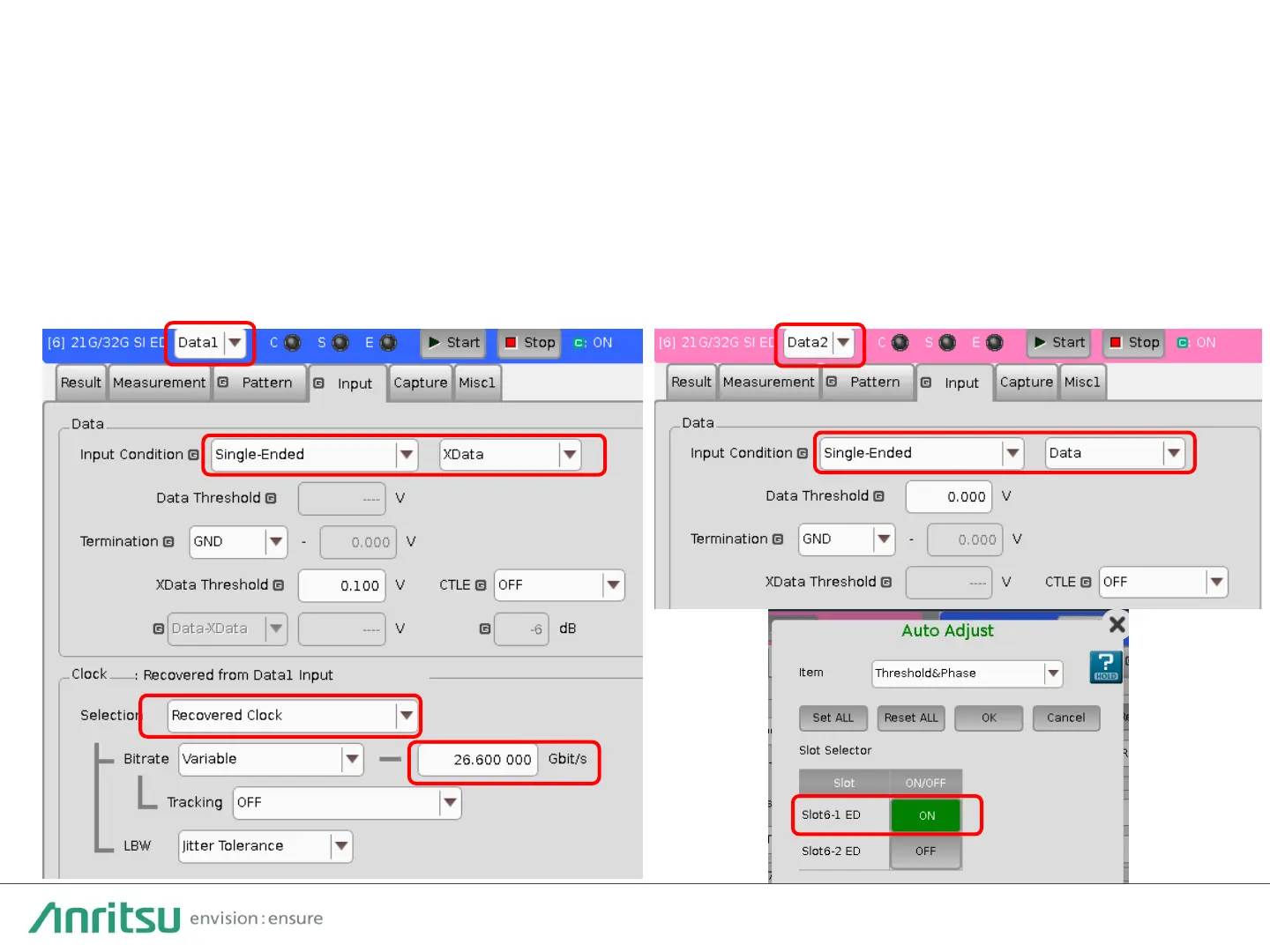

1. Set G0375A amplitude, Emphasis, skew, and pattern by referring to previous explanation.
2. Click “Operate MP1900A” button for MU195040A BER measurement.
3. Ensure that the ED combination setting is Independent.
4. Select Recovered Clock at [Selection] of [Clock] at the Data1 [Input] tab and select Single-
Ended and XData at [Input Condition] of [Data] at the Data1 [Input] tab. Ensure that the
[Bitrate] setting is same as the PPG setting.
5. Select Single-Ended and Data at [Input Condition] of [Data] at the Data2 [Input] tab.
6. Start Auto Adjust ONLY for Data1 input to recover the clock.
