3.8 Measurement Results
3-43
3
Measurement
3.8.1.3 List Area
This section describes the details of the List Area.
[1]
[2]
[3]

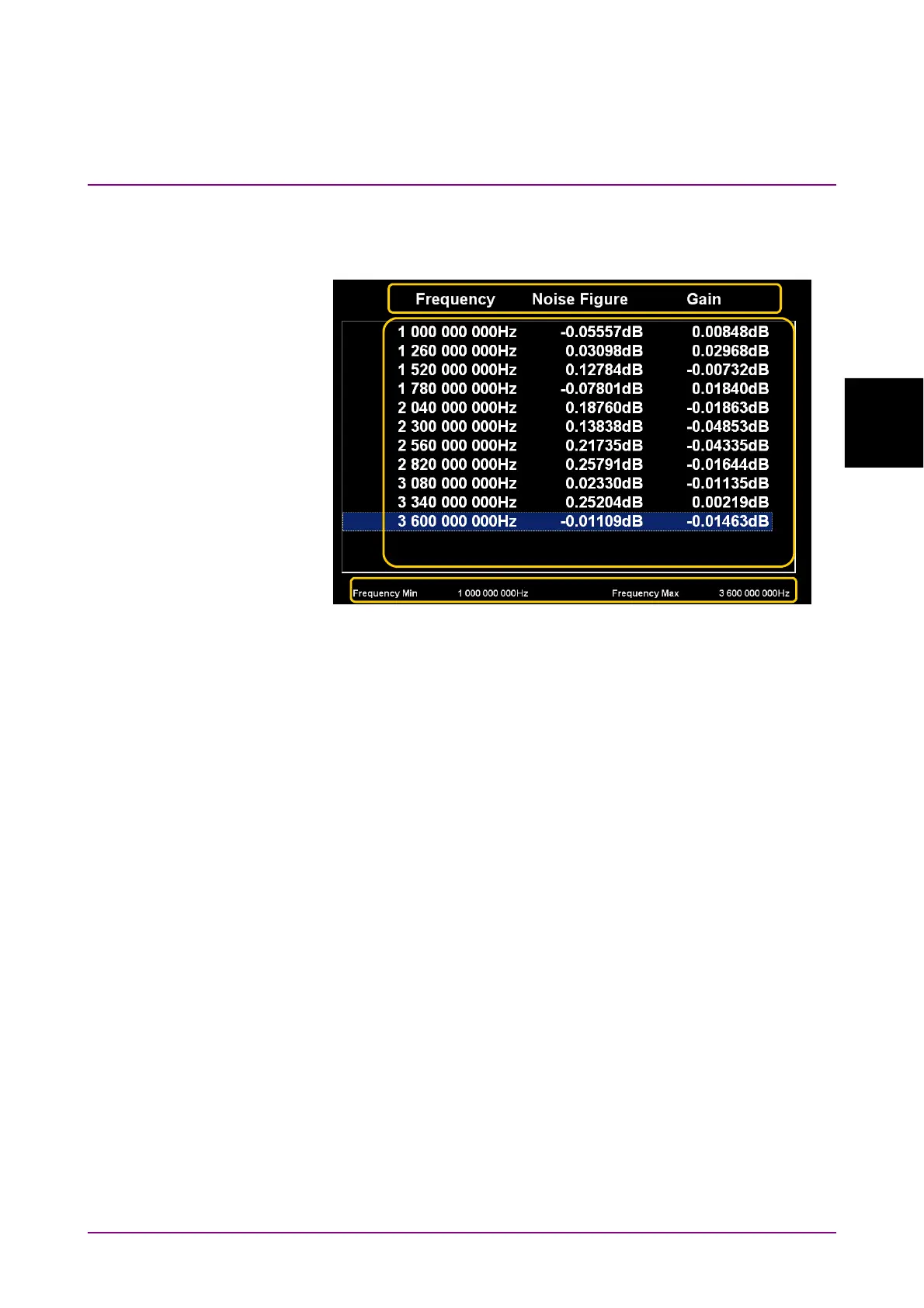

Figure 3.8.1.3-1 Close Up of the List Area
[1] Result Type display area:
Displays Frequency, Result Types of Trace1 and
Trace2.
(Result Type: Refer to Section 3.5.1 “Trace”.)
Note:
Frequency display changes to IF Frequency or RF Frequency
according to LO Mode setting (Fixed / Variable) when DUT Mode is
not Amplifier.
[2] Measurement result display area:
Displays frequencies and measurement results
corresponding to the Result Type of Trace1 and
Trace2 each.
[3] Minimum/maximum frequency display area:
Displays the minimum/maximum frequencies of
the measurement range.
