INSTALLATION
PAGE 18 REV. 02 2012-MAY-18
CHECKFIRE MP-N Electric
Detection and Actuation System Manual
CONTROL MODULE WIRING/DETECTION WIRE ROUTING
(Continued)
Pneumatic/Linear Detector Installation
The pneumatic/linear fire detection system, Part No. 416113, is a
Systron Donner Model 808-DRV. This detection system is
completely compatible with the ANSUL CHECKFIRE MP-N control
module.
Each detection system is shipped with a detailed Installation,
Maintenance Manual.
When installing the pneumatic/linear detection system to an
ANSUL CHECKFIRE MP-N control module, use connector/cable
assembly, Part No. 416216, and install per Figure 31.
Note: Attach end-of-line resistor assembly by following the
detailed steps listed on the instruction sheet included with the end-
of-line resistor shipping assembly.

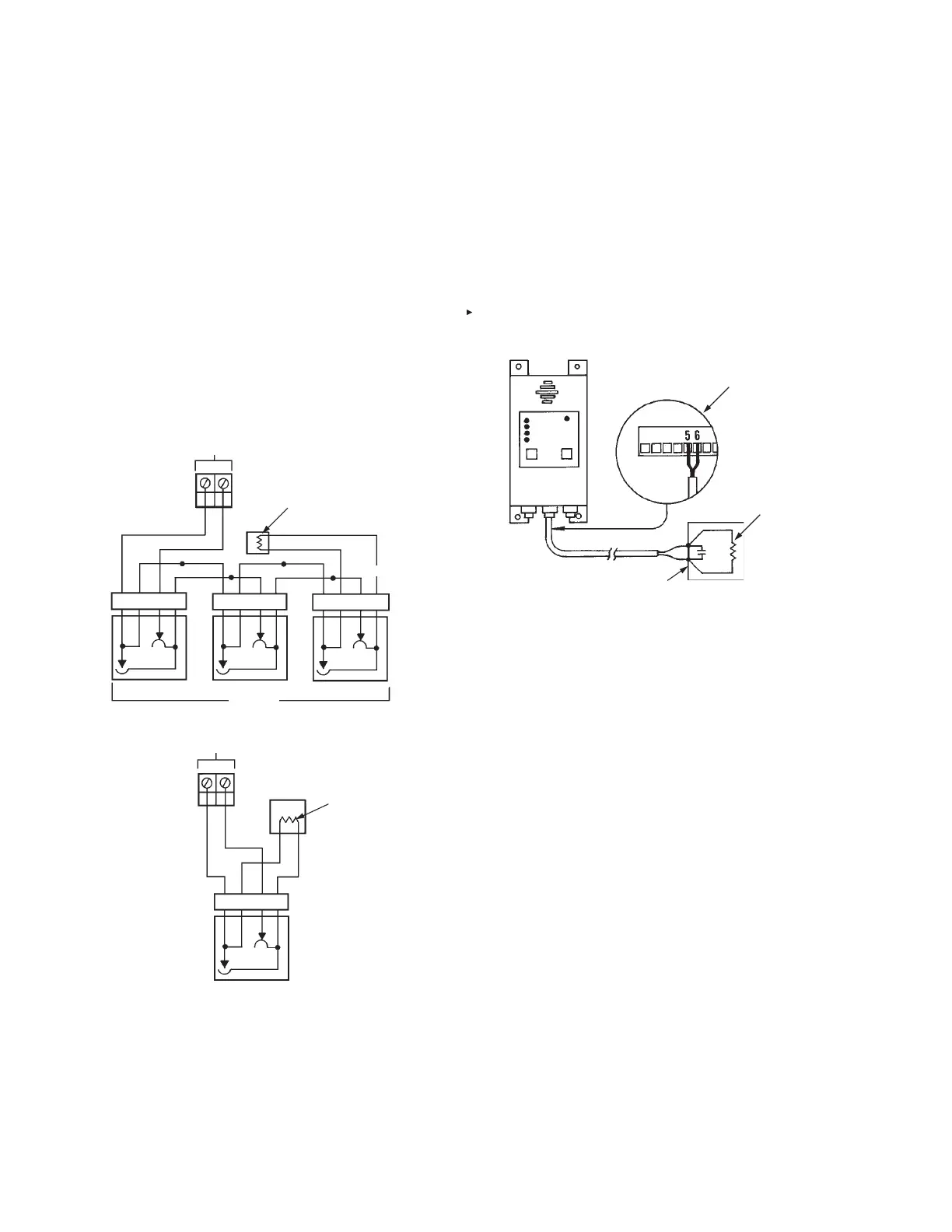

FIGURE 31
001059
INITIATING INPUT/PRESSURE SWITCH INPUT CIRCUIT NO. 2
The pressure switch feedback function provides a positive feed-
back that a discharge has occurred. It also initiates shutdown
functions and control module alarms regardless of the type of
actuation, either automatic or manual.
Initiating input circuit/pressure switch input circuit must be wired to
Terminals 5 and 6 on the control module terminal strip. The pres-
sure switch circuit must also have an end of line resistor assem-
bly, Part No. 426461, installed in the circuit. See Figure 32.
Note: If pressure switch/electric pull station circuit is not used, a
4.7 k ohms resistor must be connected across terminals 5 and 6
inside the control module.
FIGURE 32
002769
E.O.L. RESISTOR
ASSEMBLY,
PART NO. 426461
NOTE: ALL
CONNECTIONS MUST
BE WATERTIGHT.
PRESSURE SWITCH
PRESSURE SWITCH/ELECTRIC
PULL STATION CIRCUIT –
TERMINALS 5 AND 6
AB CD
AB CD
AB CD
AB CD
808-DRV
808-DRV
SINGLE DETECTOR
MULTIPLE DETECTORS
OUT
RED
BLUE
BLUE
BLUE
RED
RED
GREEN
GREEN
GREEN
BLUE
GREEN
ORANGE
34
34
OUT
ORANGE
ORANGE
CONTROL
MODULE
TERMINAL
BLOCK
CONTROL
MODULE
TERMINAL BLOCK
EOL RESISTOR
ASSEMBLY,
PART NO. 426461
4.7 K, 1/8 W
EOL RESISTOR ASSEMBLY,
PART NO. 426461
4.7 K, 1/8 W
